Load Side

Elementor Widget Selector

RL 480V

Best-in-class line/load reactors
Highest continuous service factor
High overload capability up to 300% rated current for 1 minute
Low watts loss

HP	% Impedance	Open	NEMA 1/2	NEMA 3R
0.25	3%	RL-00103	RL-00113	RL-00133
0.25	5%	RL-00102	RL-00112	RL-00132
0.33	3%	RL-00103	RL-00113	RL-00133
0.33	5%	RL-00102	RL-00112	RL-00132
0.5	3%	RL-00104	RL-00114	RL-00134
0.5	5%	RL-00103	RL-00113	RL-00133
0.75	3%	RL-00201	RL-00211	RL-00231
0.75	5%	RL-00202	RL-00212	RL-00232
1	3%	RL-00201	RL-00211	RL-00231
1	5%	RL-00202	RL-00212	RL-00232
1.5	3%	RL-00402	RL-00412	RL-00432
1.5	5%	RL-00404	RL-00414	RL-00434
2	3%	RL-00402	RL-00412	RL-00432
2	5%	RL-00403	RL-00413	RL-00433
3	3%	RL-00803	RL-00813	RL-00833
3	5%	RL-00804	RL-00814	RL-00834
5	3%	RL-00802	RL-00812	RL-00832
5	5%	RL-00803	RL-00813	RL-00833
7.5	3%	RL-01202	RL-01212	RL-01232
7.5	5%	RL-01203	RL-01213	RL-01233
10	3%	RL-01802	RL-01812	RL-01832
10	5%	RL-01803	RL-01813	RL-01833
15	3%	RL-02502	RL-02512	RL-02532
15	5%	RL-02503	RL-02513	RL-02533
20	3%	RL-03502	RL-03512	RL-03532
20	5%	RL-03503	RL-03513	RL-03533
25	3%	RL-03502	RL-03512	RL-03532
25	5%	RL-03503	RL-03513	RL-03533
30	3%	RL-04502	RL-04512	RL-04532
30	5%	RL-05503	RL-05513	RL-05533
40	3%	RL-05502	RL-05512	RL-05532
40	5%	RL-05503	RL-05513	RL-05533
50	3%	RL-08002	RL-08012	RL-08032
50	5%	RL-08003	RL-08013	RL-08033
60	3%	RL-10002	RL-10012	RL-10032
60	5%	RL-10003	RL-10013	RL-10033
75	3%	RL-10002	RL-10012	RL-10032
75	5%	RL-10003	RL-10013	RL-10033
100	3%	RL-13002	RL-13012	RL-13032
100	5%	RL-13003	RL-13013	RL-13033
125	3%	RL-16002	RL-16012	RL-16032
125	5%	RL-16003	RL-16013	RL-16033
150	3%	RL-20002B14	RL-20012B14	RL-20032B14
150	5%	RL-20003B14	RL-20013B14	RL-20033B14
200	3%	RL-25002B14	RL-25012B14	RL-25032B14
200	5%	RL-25003B14	RL-25013B14	RL-25033B14
250	3%	RL-32002B14	RL-32012B14	RL-32032B14
250	5%	RL-32003B14	RL-32013B14	RL-32033B14
300	3%	RL-40002B14	RL-40012B14	RL-40032B14
300	5%	RL-40003B14	RL-40013B14	RL-40033B14
350	3%	RL-50002	RL-50012	RL-50032
350	5%	RL-50003	RL-50013	RL-50033
400	3%	RL-50002	RL-50012	RL-50032
400	5%	RL-50003	RL-50013	RL-50033
500	3%	RL-60002	RL-60012	RL-60032
500	5%	RL-60003	RL-60013	RL-60033
600	3%	RL-75002	RL-75012	RL-75032
600	5%	RL-75003	RL-75013	RL-75033
700	3%	RL-85002B14	RL-85012B14	RL-85032B14
700	5%	RL-85003B14	RL-85013B14	RL-85033B14
800	3%	RL-100002B14	RL-100012B14	RL-100032B14
800	5%	RL-100003B14	RL-100013B14	RL-100033B14

RL 208V

Best-in-class line/load reactors
Highest continuous service factor
High overload capability up to 300% rated current for 1 minute
Low watts loss

HP	% Impedance	Open	NEMA 1/2	NEMA 3R
0.25	3%	RL-00204	RL-00214	RL-00234
0.25	5%	RL-00201	RL-00211	RL-00231
0.33	3%	RL-00204	RL-00214	RL-00234
0.33	5%	RL-00403	RL-00413	RL-00433
0.5	3%	RL-00401	RL-00411	RL-00431
0.5	5%	RL-00402	RL-00412	RL-00432
0.75	3%	RL-00401	RL-00411	RL-00431
0.75	5%	RL-00803	RL-00813	RL-00833
1	3%	RL-00801	RL-00811	RL-00831
1	5%	RL-00802	RL-00812	RL-00832
1.5	3%	RL-00801	RL-00811	RL-00831
1.5	5%	RL-00802	RL-00812	RL-00832
2	3%	RL-00801	RL-00811	RL-00831
2	5%	RL-01202	RL-01212	RL-01232
3	3%	RL-01801	RL-01811	RL-01831
3	5%	RL-01802	RL-01812	RL-01832
5	3%	RL-02501	RL-02511	RL-02531
5	5%	RL-02502	RL-02512	RL-02532
7.5	3%	RL-03501	RL-03511	RL-03531
7.5	5%	RL-03502	RL-03512	RL-03532
10	3%	RL-05501	RL-05511	RL-05531
10	5%	RL-05502	RL-05512	RL-05532
15	3%	RL-05501	RL-05511	RL-05531
15	5%	RL-04501	RL-04511	RL-04531
20	3%	RL-08001	RL-08011	RL-08031
20	5%	RL-05501	RL-05511	RL-05531
25	3%	RL-10001	RL-10011	RL-10031
25	5%	RL-08001	RL-08011	RL-08031
30	3%	RL-10001	RL-10011	RL-10031
30	5%	RL-13002	RL-13012	RL-13032
40	3%	RL-13001	RL-13011	RL-13031
40	5%	RL-16002	RL-16012	RL-16032
50	3%	RL-16001	RL-16011	RL-16031
50	5%	RL-20002B14	RL-20012B14	RL-20032B14
60	3%	RL-20001B14	RL-20011B14	RL-20031B14
60	5%	RL-20002B14	RL-20012B14	RL-20032B14
75	3%	RL-25001B14	RL-25011B14	RL-25031B14
75	5%	RL-25002B14	RL-25012B14	RL-25032B14
100	3%	RL-32001B14	RL-32011B14	RL-32031B14
100	5%	RL-32002B14	RL-32012B14	RL-32032B14
125	3%	RL-40001B14	RL-40011B14	RL-40031B14
125	5%	RL-40002B14	RL-40012B14	RL-40032B14
150	3%	RL-50001B14	RL-50011B14	RL-50031B14
150	5%	RL-50002	RL-50012	RL-50032
200	3%	RL-60001	RL-60011	RL-60031
200	5%	RL-75002	RL-75012	RL-75032
250	3%	RL-75001	RL-75011	RL-75031
250	5%	RL-75002	RL-75012	RL-75032
300	3%	RL-85001B14	RL-85011B14	RL-85031B14
300	5%	RL-90002B14	RL-90012B14	RL-90032B14
350	3%	RL-100001B14	RL-100011B14	RL-100031B14
350	5%	RL-100002B14	RL-100012B14	RL-100032B14
400	3%	RL-120001B14	RL-120011B14	RL-120031B14
400	5%	RL-120002B14	RL-120012B14	RL-120032B14
500	3%	RL-140001	RL-140011	RL-140031
500	5%	RL-150002	RL-150012	RL-150032

RL 600V

Best-in-class line/load reactors
Highest continuous service factor
High overload capability up to 300% rated current for 1 minute
Low watts loss

HP	% Impedance	Open	NEMA 1/2	NEMA 3R
0.25	3%	RL-00102	RL-00112	RL-00132
0.25	5%	RL-00101	RL-00111	RL-00131
0.33	3%	RL-00103	RL-00113	RL-00133
0.33	5%	RL-00102	RL-00112	RL-00132
0.5	3%	RL-00103	RL-00113	RL-00133
0.5	5%	RL-00102	RL-00112	RL-00132
0.75	3%	RL-00202	RL-00212	RL-00232
0.75	5%	RL-00203	RL-00213	RL-00233
1	3%	RL-00202	RL-00212	RL-00232
1	5%	RL-00203	RL-00213	RL-00233
1.5	3%	RL-00201	RL-00211	RL-00231
1.5	5%	RL-00202	RL-00212	RL-00232
2	3%	RL-00403	RL-00413	RL-00433
2	5%	RL-00404	RL-00414	RL-00434
3	3%	RL-00402	RL-00412	RL-00432
3	5%	RL-00404	RL-00414	RL-00434
5	3%	RL-00803	RL-00813	RL-00833
5	5%	RL-00804	RL-00814	RL-00834
7.5	3%	RL-01202	RL-01212	RL-01232
7.5	5%	RL-01203	RL-01213	RL-01233
10	3%	RL-01202	RL-01212	RL-01232
10	5%	RL-01203	RL-01213	RL-01233
15	3%	RL-01802	RL-01812	RL-01832
15	5%	RL-01803	RL-01813	RL-01833
20	3%	RL-02502	RL-02512	RL-02532
20	5%	RL-02503	RL-02513	RL-02533
25	3%	RL-02502	RL-02512	RL-02532
25	5%	RL-02503	RL-02513	RL-02533
30	3%	RL-03502	RL-03512	RL-03532
30	5%	RL-03503	RL-03513	RL-03533
40	3%	RL-04502	RL-04512	RL-04532
40	5%	RL-04503	RL-04513	RL-04533
50	3%	RL-05502	RL-05512	RL-05532
50	5%	RL-05503	RL-05513	RL-05533
60	3%	RL-08002	RL-08012	RL-08032
60	5%	RL-08003	RL-08013	RL-08033
75	3%	RL-08002	RL-08012	RL-08032
75	5%	RL-08003	RL-08013	RL-08033
100	3%	RL-10002	RL-10012	RL-10032
100	5%	RL-10003	RL-10013	RL-10033
125	3%	RL-13002	RL-13012	RL-13032
125	5%	RL-13003	RL-13013	RL-13033
150	3%	RL-16002	RL-16012	RL-16032
150	5%	RL-16003	RL-16013	RL-16033
200	3%	RL-20002B14	RL-20012B14	RL-20032B14
200	5%	RL-20003B14	RL-20013B14	RL-20033B14
250	3%	RL-25002B14	RL-25012B14	RL-25032B14
250	5%	RL-25003B14	RL-25013B14	RL-25033B14
300	3%	RL-32002B14	RL-32012B14	RL-32032B14
300	5%	RL-32003B14	RL-32013B14	RL-32033B14
350	3%	RL-32002B14	RL-32012B14	RL-32032B14
350	5%	RL-32003B14	RL-32013B14	RL-32033B14
400	3%	RL-40002B14	RL-40012B14	RL-40032B14
400	5%	RL-40003B14	RL-40013B14	RL-40033B14
500	3%	RL-50002	RL-50012	RL-50032
500	5%	RL-50003	RL-50013	RL-50033
600	3%	RL-60002	RL-60012	RL-60032
600	5%	RL-60003	RL-60013	RL-60033
700	3%	RL-75002	RL-75012	RL-75032
700	5%	RL-75003	RL-75013	RL-75033
800	3%	RL-75002	RL-75012	RL-75032
800	5%	RL-75003	RL-75013	RL-75033

DV-E 208V
Motor Protection, 30-1000′ lead length.

Reflective wave/rise time mitigation
Caps motor voltage at 150% of DC Bus
Low watt loss
Protects cables ≤1,000′

HP	Filter Amp Rating	Kit	Open	NEMA1/2	NEMA3R
0.5	3	DVTK0003E	DVTP0003E	DVTG0003E	DVTW0003E
0.75	4	DVTK0004E	DVTP0004E	DVTG0004E	DVTW0004E
1.5	7	DVTK0007E	DVTP0007E	DVTG0007E	DVTW0007E
2	9	DVTK0009E	DVTP0009E	DVTG0009E	DVTW0009E
3	12	DVTK0012E	DVTP0012E	DVTG0012E	DVTW0012E
5	17	DVTK0017E	DVTP0017E	DVTG0017E	DVTW0017E
5.5	22	DVTK0022E	DVTP0022E	DVTG0022E	DVTW0022E
7.5	27	DVTK0027E	DVTP0027E	DVTG0027E	DVTW0027E
10	35	DVTK0035E	DVTP0035E	DVTG0035E	DVTW0035E
12.5	45	DVTK0045E	DVTP0045E	DVTG0045E	DVTW0045E
15	55	DVTK0055E	DVTP0055E	DVTG0055E	DVTW0055E
20	65	DVTK0065E	DVTP0065E	DVTG0065E	DVTW0065E
25	80	DVTK0080E	DVTP0080E	DVTG0080E	DVTW0080E
30	110	DVTK0110E	DVTP0110E	DVTG0110E	DVTW0110E
40	130	DVTK0130E	DVTP0130E	DVTG0130E	DVTW0130E
50	160	DVTK0160E	DVTP0160E	DVTG0160E	DVTW0160E
60	200	DVTK0200E	DVTP0200E	DVTG0200E	DVTW0200E
75	250	DVTK0250E	DVTP0250E	DVTG0250E	DVTW0250E
100	305	DVTK0305E	DVTP0305E	DVTG0305E	DVTW0305E
125	365	DVTK0365E	DVTP0365E	DVTG0365E	DVTW0365E
150	415	DVTK0415E	DVTP0415E	DVTG0415E	DVTW0415E
175	515	DVTK0515E	DVTP0515E	DVTG0515E	DVTW0515E
200	600	DVTK0600E	DVTP0600E	DVTG0600E	DVTW0600E
250	750	DVTK0750E	DVTP0750E	DVTG0750E	DVTW0750E

DV-E 480V
Motor Protection, 30-1000′ lead length.

Reflective wave/rise time mitigation
Caps motor voltage at 150% of DC Bus
Low watt loss
Protects cables ≤1,000′

HP	Filter Amp Rating	Kit	Open	NEMA1/2	NEMA3R
0.5-1.5	3	DVTK0003E	DVTP0003E	DVTG0003E	DVTW0003E
2	4	DVTK0004E	DVTP0004E	DVTG0004E	DVTW0004E
3	7	DVTK0007E	DVTP0007E	DVTG0007E	DVTW0007E
5	9	DVTK0009E	DVTP0009E	DVTG0009E	DVTW0009E
8	12	DVTK0012E	DVTP0012E	DVTG0012E	DVTW0012E
10	17	DVTK0017E	DVTP0017E	DVTG0017E	DVTW0017E
15	22	DVTK0022E	DVTP0022E	DVTG0022E	DVTW0022E
20	27	DVTK0027E	DVTP0027E	DVTG0027E	DVTW0027E
25	35	DVTK0035E	DVTP0035E	DVTG0035E	DVTW0035E
30	45	DVTK0045E	DVTP0045E	DVTG0045E	DVTW0045E
40	55	DVTK0055E	DVTP0055E	DVTG0055E	DVTW0055E
50	65	DVTK0065E	DVTP0065E	DVTG0065E	DVTW0065E
60	80	DVTK0080E	DVTP0080E	DVTG0080E	DVTW0080E
75	110	DVTK0110E	DVTP0110E	DVTG0110E	DVTW0110E
100	130	DVTK0130E	DVTP0130E	DVTG0130E	DVTW0130E
125	160	DVTK0160E	DVTP0160E	DVTG0160E	DVTW0160E
150	200	DVTK0200E	DVTP0200E	DVTG0200E	DVTW0200E
200	250	DVTK0250E	DVTP0250E	DVTG0250E	DVTW0250E
250	305	DVTK0305E	DVTP0305E	DVTG0305E	DVTW0305E
300	365	DVTK0365E	DVTP0365E	DVTG0365E	DVTW0365E
350	415	DVTK0415E	DVTP0415E	DVTG0415E	DVTW0415E
400-450	515	DVTK0515E	DVTP0515E	DVTG0515E	DVTW0515E
500	600	DVTK0600E	DVTP0600E	DVTG0600E	DVTW0600E
600-605	750	DVTK0750E	DVTP0750E	DVTG0750E	DVTW0750E

DV-E 600V
Motor Protection, 30-1000′ lead length.

Reflective wave/rise time mitigation
Caps motor voltage at 150% of DC Bus
Low watt loss
Protects cables ≤1,000′

HP	Filter Amp Rating	Kit	Open	NEMA1/2	NEMA3R
0.5-2	3	DVTK0003E	DVTP0003E	DVTG0003E	DVTW0003E
3	4	DVTK0004E	DVTP0004E	DVTG0004E	DVTW0004E
5	7	DVTK0007E	DVTP0007E	DVTG0007E	DVTW0007E
8	9	DVTK0009E	DVTP0009E	DVTG0009E	DVTW0009E
10	12	DVTK0012E	DVTP0012E	DVTG0012E	DVTW0012E
15	17	DVTK0017E	DVTP0017E	DVTG0017E	DVTW0017E
20	22	DVTK0022E	DVTP0022E	DVTG0022E	DVTW0022E
25	27	DVTK0027E	DVTP0027E	DVTG0027E	DVTW0027E
30	35	DVTK0035E	DVTP0035E	DVTG0035E	DVTW0035E
40	45	DVTK0045E	DVTP0045E	DVTG0045E	DVTW0045E
50	55	DVTK0055E	DVTP0055E	DVTG0055E	DVTW0055E
60	65	DVTK0065E	DVTP0065E	DVTG0065E	DVTW0065E
75	80	DVTK0080E	DVTP0080E	DVTG0080E	DVTW0080E
100	110	DVTK0110E	DVTP0110E	DVTG0110E	DVTW0110E
125	130	DVTK0130E	DVTP0130E	DVTG0130E	DVTW0130E
150	160	DVTK0160E	DVTP0160E	DVTG0160E	DVTW0160E
200	200	DVTK0200E	DVTP0200E	DVTG0200E	DVTW0200E
250	250	DVTK0250E	DVTP0250E	DVTG0250E	DVTW0250E
300	305	DVTK0305E	DVTP0305E	DVTG0305E	DVTW0305E
350	365	DVTK0365E	DVTP0365E	DVTG0365E	DVTW0365E
450	415	DVTK0415E	DVTP0415E	DVTG0415E	DVTW0415E
500-550	515	DVTK0515E	DVTP0515E	DVTG0515E	DVTW0515E
600	600	DVTK0600E	DVTP0600E	DVTG0600E	DVTW0600E
700	750	DVTK0750E	DVTP0750E	DVTG0750E	DVTW0750E

DV-S 208V
Motor Protection, 30-1000′ lead length.

True common mode reduction (≥50% peak current)
Voltage spike/reflective wave control
Caps motor voltage at 150% DC Bus
Low watt loss
Protects cables ≤1,000′

HP	Filter Amp Rating	Open	NEMA1/2	NEMA3R
0.5	3	DVSP0003E	DVSG0003E	DVSW0003E
0.75	4	DVSP0004E	DVSG0004E	DVSW0004E
1.5	7	DVSP0007E	DVSG0007E	DVSW0007E
2	9	DVSP0009E	DVSG0009E	DVSW0009E
3	12	DVSP0012E	DVSG0012E	DVSW0012E
5	17	DVSP0017E	DVSG0017E	DVSW0017E
5.5	22	DVSP0022E	DVSG0022E	DVSW0022E
7.5	27	DVSP0027E	DVSG0027E	DVSW0027E
10	35	DVSP0035E	DVSG0035E	DVSW0035E
12.5	45	DVSP0045E	DVSG0045E	DVSW0045E
15	55	DVSP0055E	DVSG0055E	DVSW0055E
20	65	DVSP0065E	DVSG0065E	DVSW0065E
25	80	DVSP0080E	DVSG0080E	DVSW0080E
30	110	DVSP0110E	DVSG0110E	DVSW0110E
40	130	DVSP0130E	DVSG0130E	DVSW0130E
50	160	DVSP0160E	DVSG0160E	DVSW0160E
60	200	DVSP0200E	DVSG0200E	DVSW0200E
75	250	DVSP0250E	DVSG0250E	DVSW0250E
100	305	DVSP0305E	DVSG0305E	DVSW0305E
125	365	DVSP0365E	DVSG0365E	DVSW0365E
150	415	DVSP0415E	DVSG0415E	DVSW0415E
175	515	DVSP0515E	DVSG0515E	DVSW0515E
200	600	DVSP0600E	DVSG0600E	DVSW0600E

DV-S 480V
Motor Protection, 30-1000′ lead length.

True common mode reduction (≥50% peak current)
Voltage spike/reflective wave control
Caps motor voltage at 150% DC Bus
Low watt loss
Protects cables ≤1,000′

HP	Filter Amp Rating	Open	NEMA1/2	NEMA3R
0.5-1.5	3	DVSP0003E	DVSG0003E	DVSW0003E
2	4	DVSP0004E	DVSG0004E	DVSW0004E
3	7	DVSP0007E	DVSG0007E	DVSW0007E
5	9	DVSP0009E	DVSG0009E	DVSW0009E
8	12	DVSP0012E	DVSG0012E	DVSW0012E
10	17	DVSP0017E	DVSG0017E	DVSW0017E
15	22	DVSP0022E	DVSG0022E	DVSW0022E
20	27	DVSP0027E	DVSG0027E	DVSW0027E
25	35	DVSP0035E	DVSG0035E	DVSW0035E
30	45	DVSP0045E	DVSG0045E	DVSW0045E
40	55	DVSP0055E	DVSG0055E	DVSW0055E
50	65	DVSP0065E	DVSG0065E	DVSW0065E
60	80	DVSP0080E	DVSG0080E	DVSW0080E
75	110	DVSP0110E	DVSG0110E	DVSW0110E
100	130	DVSP0130E	DVSG0130E	DVSW0130E
125	160	DVSP0160E	DVSG0160E	DVSW0160E
150	200	DVSP0200E	DVSG0200E	DVSW0200E
200	250	DVSP0250E	DVSG0250E	DVSW0250E
250	305	DVSP0305E	DVSG0305E	DVSW0305E
300	365	DVSP0365E	DVSG0365E	DVSW0365E
350	415	DVSP0415E	DVSG0415E	DVSW0415E
400-450	515	DVSP0515E	DVSG0515E	DVSW0515E
500	600	DVSP0600E	DVSG0600E	DVSW0600E

SineWave Guardian 208V
Motor Protection for lead lengths up to 15,000′

Best-value sine wave filter
Multi-motor compatible
Low insertion loss (<6%)
Limits THVD to 5% @ 2kHz

HP	Filter Amp Rating	Open	NEMA1/2	NEMA3R
2	9	SWGM0009A	SWGG0009A	SWGW0009A
3	12	SWGM0012A	SWGG0012A	SWGW0012A
5	17	SWGM0017A	SWGG0017A	SWGW0017A
5.5	22	SWGM0022A	SWGG0022A	SWGW0022A
7.5	30	SWGM0030A	SWGG0030A	SWGW0030A
10 - 12.5	45	SWGM0045A	SWGG0045A	SWGW0045A
15	55	SWGM0055A	SWGG0055A	SWGW0055A
20	70	SWGM0070A	SWGG0070A	SWGW0070A
25	85	SWGM0085A	SWGG0085A	SWGW0085A
30	110	SWGM0110A	SWGG0110A	SWGW0110A
40	135	SWGM0135A	SWGG0135A	SWGW0135A
50	160	SWGM0160A	SWGG0160A	SWGW0160A
60	200	SWGM0200A	SWGG0200A	SWGW0200A
75	250	SWGM0250A	SWGG0250A	SWGW0250A
100	320	SWGM032A	SWGG0320A	SWGW0320A

DV-S 600V
Motor Protection, 30-1000′ lead length.

True common mode reduction (≥50% peak current)
Voltage spike/reflective wave control
Caps motor voltage at 150% DC Bus
Low watt loss
Protects cables ≤1,000′

HP	Filter Amp Rating	Open	NEMA1/2	NEMA3R
0.5-2	3	DVSP0003E	DVSG0003E	DVSW0003E
3	4	DVSP0004E	DVSG0004E	DVSW0004E
5	7	DVSP0007E	DVSG0007E	DVSW0007E
8	9	DVSP0009E	DVSG0009E	DVSW0009E
10	12	DVSP0012E	DVSG0012E	DVSW0012E
15	17	DVSP0017E	DVSG0017E	DVSW0017E
20	22	DVSP0022E	DVSG0022E	DVSW0022E
25	27	DVSP0027E	DVSG0027E	DVSW0027E
30	35	DVSP0035E	DVSG0035E	DVSW0035E
40	45	DVSP0045E	DVSG0045E	DVSW0045E
50	55	DVSP0055E	DVSG0055E	DVSW0055E
60	65	DVSP0065E	DVSG0065E	DVSW0065E
75	80	DVSP0080E	DVSG0080E	DVSW0080E
100	110	DVSP0110E	DVSG0110E	DVSW0110E
125	130	DVSP0130E	DVSG0130E	DVSW0130E
150	160	DVSP0160E	DVSG0160E	DVSW0160E
200	200	DVSP0200E	DVSG0200E	DVSW0200E
250	250	DVSP0250E	DVSG0250E	DVSW0250E
300	305	DVSP0305E	DVSG0305E	DVSW0305E
350	365	DVSP0365E	DVSG0365E	DVSW0365E
450	415	DVSP0415E	DVSG0415E	DVSW0415E
500-550	515	DVSP0515E	DVSG0515E	DVSW0515E
600	600	DVSP0600E	DVSG0600E	DVSW0600E

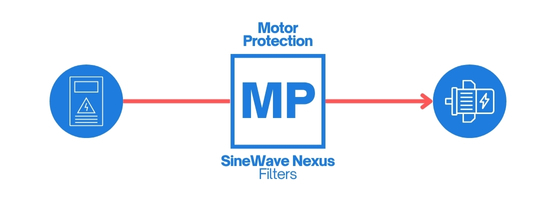

MicroNexus 380-480V
Motor Protection for lead lengths up to 15,000

The only filter on the market that virtually eliminates common mode voltage.
Eliminate the need for inductive absorbers and shaft grounding rings.
Allows mulitple motor leads in the same conduit / raceway.
Nexus and microNexus filters are the best choice in motor protection.

380V Motor KW	480V Motor HP	Filter Amp Rating	Part Number	Weight (lbs)	Dimensions (in)
0.55	0.75	2	SNUG0002D	10	12.8 x 3.3 x 7.1
0.75	1.5	3	SNUG0003D	11	12.8 x 3.3 x 7.1
2.2	3	5	SNUG0005D	11	12.8 x 3.3 x 7.1
3	4	7	SNUG0007D	12	12.8 x 3.3 x 7.1
4	5.5	9	SNUG0009D	21	14.3 x 5.7 x 9.1
5.5	7.5	12	SNUG0012D	23	14.3 x 5.7 x 9.1
7.5	10	17	SNUG0017D	23	14.3 x 5.7 x 9.1
11	15	22	SNUG0022D	24	14.3 x 5.7 x 9.1

SineWave Guardian 480V
Motor Protection for lead lengths up to 15,000′

Best-value sine wave filter
Multi-motor compatible
Low insertion loss (<6%)
Limits THVD to 5% @ 2kHz

HP	Filter Amp Rating	Open	NEMA1/2	NEMA3R
0.75	2	SWGM0002D	SWGG0002D	SWGW0002D
1.5	3	SWGM0003D	SWGG0003D	SWGW0003D
3	5	SWGM0005D	SWGG0005D	SWGW0005D
4	7	SWGM0007D	SWGG0007D	SWGW0007D
5.5	9	SWGM0009D	SWGG0009D	SWGW0009D
7.5	12	SWGM0012D	SWGG0012D	SWGW0012D
10	17	SWGM0017D	SWGG0017D	SWGW0017D
15	22	SWGM0022D	SWGG0022D	SWGW0022D
20	27	SWGM0027D	SWGG0027D	SWGW0027D
25	35	SWGM0035D	SWGG0035D	SWGW0035D
30	45	SWGM0045D	SWGG0045D	SWGW0045D
40	55	SWGM0055D	SWGG0055D	SWGW0055D
50	65	SWGM0065D	SWGG0065D	SWGW0065D
60	80	SWGM0080D	SWGG0080D	SWGW0080D
75	110	SWGM0110D	SWGG0110D	SWGW0110D
100	130	SWGM0130D	SWGG0130D	SWGW0130D
125	160	SWGM0160D	SWGG0160D	SWGW0160D
150	200	SWGM0200D	SWGG0200D	SWGW0200D
200	250	SWGM0250D	SWGG0250D	SWGW0250D
250	305	SWGM0305D	SWGG0305D	SWGW0305D
300	365	SWGM0365D	SWGG0365D	SWGW0365D
350	415	SWGM0415D	SWGG0415D	SWGW0415D
450	515	SWGM0515D	SWGG0515D	SWGW0515D
500	600	SWGM0600D	SWGG0600D	SWGW0600D
600	720	SWGM0720D	SWGG0720D	SWGW0720D
700	850	SWGM0850D	SWGG0850D	SWGW0850D
850	1,000	SWGM1000D	SWGG1000D	SWGW1000D
1000	1,200	SWGM1200D	SWGG1200D	SWGW1200D
1200	1,500	SWGM1500D	SWGG1500D	SWGW1500D

SineWave Guardian 600V
Motor Protection for lead lengths up to 15,000′

Best-value sine wave filter
Multi-motor compatible
Low insertion loss (<6%)
Limits THVD to 5% @ 2kHz

HP	Filter Amp Rating	Open	NEMA1/2	NEMA3R
1	2	SWGM0002E	SWGG0002E	SWGW0002E
2	3	SWGM0003E	SWGG0003E	SWGW0003E
3	5	SWGM0005E	SWGG0005E	SWGW0005E
5	7	SWGM0007E	SWGG0007E	SWGW0007E
7.5	9	SWGM0009E	SWGG0009E	SWGW0009E
10	12	SWGM0012E	SWGG0012E	SWGW0012E
15	17	SWGM0017E	SWGG0017E	SWGW0017E
20	22	SWGM0022E	SWGG0022E	SWGW0022E
25	27	SWGM0027E	SWGG0027E	SWGW0027E
30	35	SWGM0035E	SWGG0035E	SWGW0035E
40	45	SWGM0045E	SWGG0045E	SWGW0045E
50	55	SWGM0055E	SWGG0055E	SWGW0055E
60	65	SWGM0065E	SWGG0065E	SWGW0065E
75	80	SWGM0080E	SWGG0080E	SWGW0080E
100	110	SWGM0110E	SWGG0110E	SWGW0110E
125	130	SWGM0130E	SWGG0130E	SWGW0130E
150	160	SWGM0160E	SWGG0160E	SWGW0160E
200	200	SWGM0200E	SWGG0200E	SWGW0200E
250	250	SWGM0250E	SWGG0250E	SWGW0250E
300	305	SWGM0305E	SWGG0305E	SWGW0305E
350	365	SWGM0365E	SWGG0365E	SWGW0365E
450	415	SWGM0415E	SWGG0415E	SWGW0415E
500	515	SWGM0515E	SWGG0515E	SWGW0515E
600	600	SWGM0600E	SWGG0600E	SWGW0600E
700	720	SWGM0720E	SWGG0720E	SWGW0720E
900	865	SWGM0865E	SWGG0865E	SWGW0865E
1000	1000	SWGM1000E	SWGG1000E	SWGW1000E
1250	1200	SWGM1200E	SWGG1200E	SWGW1200E
1500	1500	SWGM1500E

Load Side

RL 480V

RL 208V

RL 600V

DV-E 208V
Motor Protection, 30-1000′ lead length.

DV-E 480V
Motor Protection, 30-1000′ lead length.

DV-E 600V
Motor Protection, 30-1000′ lead length.

DV-S 208V
Motor Protection, 30-1000′ lead length.

DV-S 480V
Motor Protection, 30-1000′ lead length.

SineWave Guardian 208V
Motor Protection for lead lengths up to 15,000′

DV-S 600V
Motor Protection, 30-1000′ lead length.

MicroNexus 380-480V
Motor Protection for lead lengths up to 15,000

SineWave Guardian 480V
Motor Protection for lead lengths up to 15,000′

SineWave Guardian 600V
Motor Protection for lead lengths up to 15,000′

About Us

Links

Load Side

RL 480V

RL 208V

RL 600V

DV-E 208VMotor Protection, 30-1000′ lead length.

DV-E 480VMotor Protection, 30-1000′ lead length.

DV-E 600VMotor Protection, 30-1000′ lead length.

DV-S 208VMotor Protection, 30-1000′ lead length.

DV-S 480VMotor Protection, 30-1000′ lead length.

SineWave Guardian 208VMotor Protection for lead lengths up to 15,000′

DV-S 600VMotor Protection, 30-1000′ lead length.

MicroNexus 380-480VMotor Protection for lead lengths up to 15,000

SineWave Guardian 480VMotor Protection for lead lengths up to 15,000′

SineWave Guardian 600VMotor Protection for lead lengths up to 15,000′

About Us

Links

DV-E 208V
Motor Protection, 30-1000′ lead length.

DV-E 480V
Motor Protection, 30-1000′ lead length.

DV-E 600V
Motor Protection, 30-1000′ lead length.

DV-S 208V
Motor Protection, 30-1000′ lead length.

DV-S 480V
Motor Protection, 30-1000′ lead length.

SineWave Guardian 208V
Motor Protection for lead lengths up to 15,000′

DV-S 600V
Motor Protection, 30-1000′ lead length.

MicroNexus 380-480V
Motor Protection for lead lengths up to 15,000

SineWave Guardian 480V
Motor Protection for lead lengths up to 15,000′

SineWave Guardian 600V
Motor Protection for lead lengths up to 15,000′
