Description

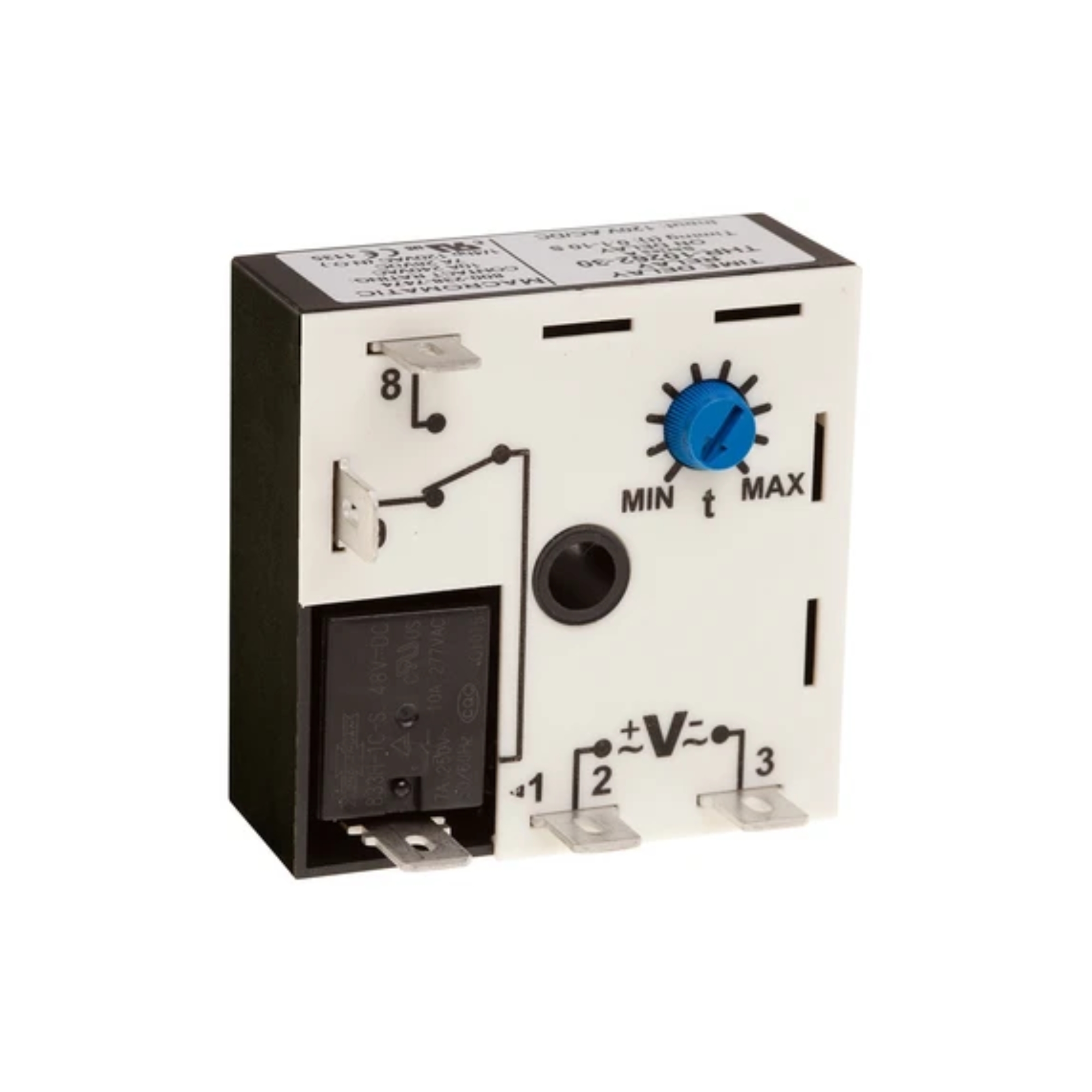

The Macromatic THR-10262-07 is a heavy-duty, fully encapsulated ON-delay time delay relay engineered for precise timing control in demanding industrial environments. Featuring a solid-state potted enclosure, this relay provides exceptional resistance against moisture, dust, extreme vibration, and environmental contamination, ensuring long-term operational reliability in severe-duty applications.

Upon application of input control voltage, the preset time delay begins (adjustable via an onboard analog potentiometer across a 0.05 to 5-second range). Once the delay period elapses, the 10A SPDT output contacts energize and remain transferred until input power is removed. Featuring a factory standard modification where control voltage is connected at the relay common terminal, the THR-10262-07 simplifies wiring for industrial automation, HVAC system staging, and motor start delay circuits.

Key Features

• ON-Delay Timing Function: Initiates timing sequence upon power application, energizing the 10A output after the set time delay elapses.
• Encapsulated Solid-State Design: Fully potted housing protects internal components from humidity, dirt, vibration, and thermal shock.
• Analog Adjustment Potentiometer: Allows straightforward, precise delay settings across a 0.05 to 5-second timing range.
• 10A SPDT Output Relay: Heavy-duty Single Pole Double Throw output contact switching for pilot loads and control circuits.
• Streamlined Common Wiring: Pre-configured standard modification connects control voltage directly at the relay common terminal to reduce wiring complexity.
• Compact Industrial Form Factor: Designed for easy mounting in control panels, machinery enclosures, and OEM assemblies.

Specifications
