Description

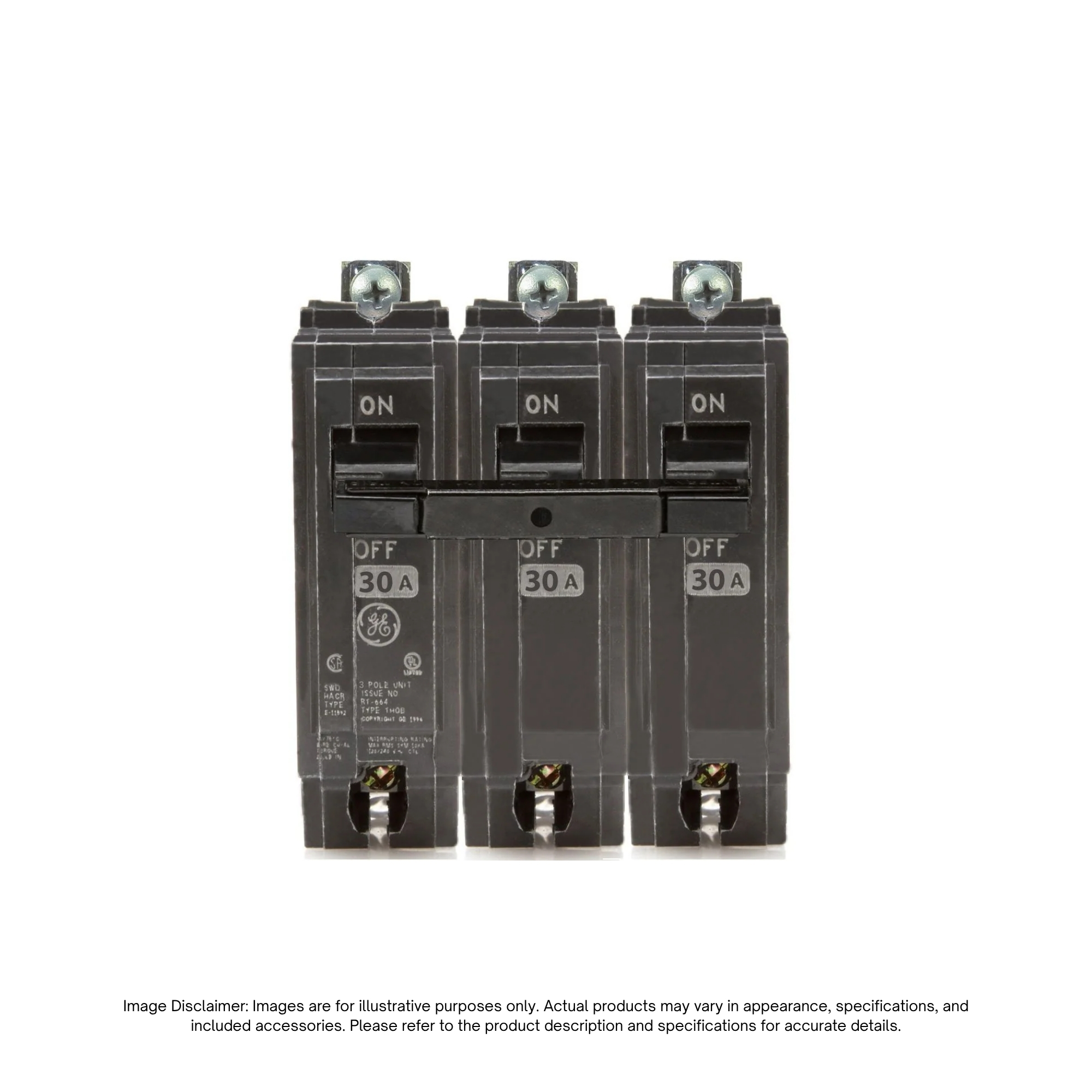

The ABB / GE THQB32030 (Catalog Number: THQB32030, UPC: 783164012415) is a compact, 3-pole thermal-magnetic miniature circuit breaker engineered for residential, commercial, and industrial electrical distribution systems. Rated for 30 Amps at up to 240 VAC, this bolt-on Q-Line breaker provides reliable overload and short-circuit protection with an interrupting capacity of 10 kAIC.
Featuring a standard one-inch wide per pole design, the THQB32030 incorporates a quick-make / quick-break mechanism, an internal common trip bar to prevent single-phasing, and an easy-to-spot trip indication for enhanced safety. It is HACR rated and suitable for reverse feed applications, making it ideal for 3-phase load centers and lighting panelboards.
Key Features
- Three-Pole Thermal-Magnetic Protection: Combines thermal overload sensing with magnetic short-circuit tripping across 3 poles for comprehensive system protection.
- 30A / 240V Rating: Engineered for 3-phase branch circuit protection up to 240 VAC (120V, 120/240V, or 240V systems).
- 10 kAIC Interrupting Capacity: Provides reliable fault-clearing capacity at 120V, 120/240V, and 240V AC.
- Bolt-On Configuration: Designed for secure bolt-on connection directly to the bus bars of compatible load centers and lighting panels.
- HACR Rated & Reverse Feed Capable: Certified for heating, air conditioning, and refrigeration equipment, and approved for reverse feed installations.
Specifications
| Technical Specification | Detail |
|---|---|
| Catalog Number / Model | THQB32030 |
| Brand / Manufacturer | ABB / GE |
| UPC Code | 783164012415 |
| Product Line | TEY / Q-Line (Bolt-On) |
| Product Type | Thermal-Magnetic Miniature Circuit Breaker |
| Amperage Rating | 30 A |
| Voltage Rating | 120 VAC / 120/240 VAC / 240 VAC |
| Number of Poles | 3-Pole (3P) |
| Interrupting Rating | 10 kAIC at 120 VAC / 120/240 VAC / 240 VAC |
| Trip Style / Function | Non-Interchangeable / LI (Long-Time Fixed, Instantaneous Fixed) |
| Special Markings | HACR |
| Suitable for Reverse Feed | Yes |
| UL File Number | E11592 |
| Environmental Product Declaration | ABBG00647V0101 |
| Primary Applications | 3-phase commercial/industrial lighting panels, load centers, HVAC equipment, and branch circuit protection |
