Description

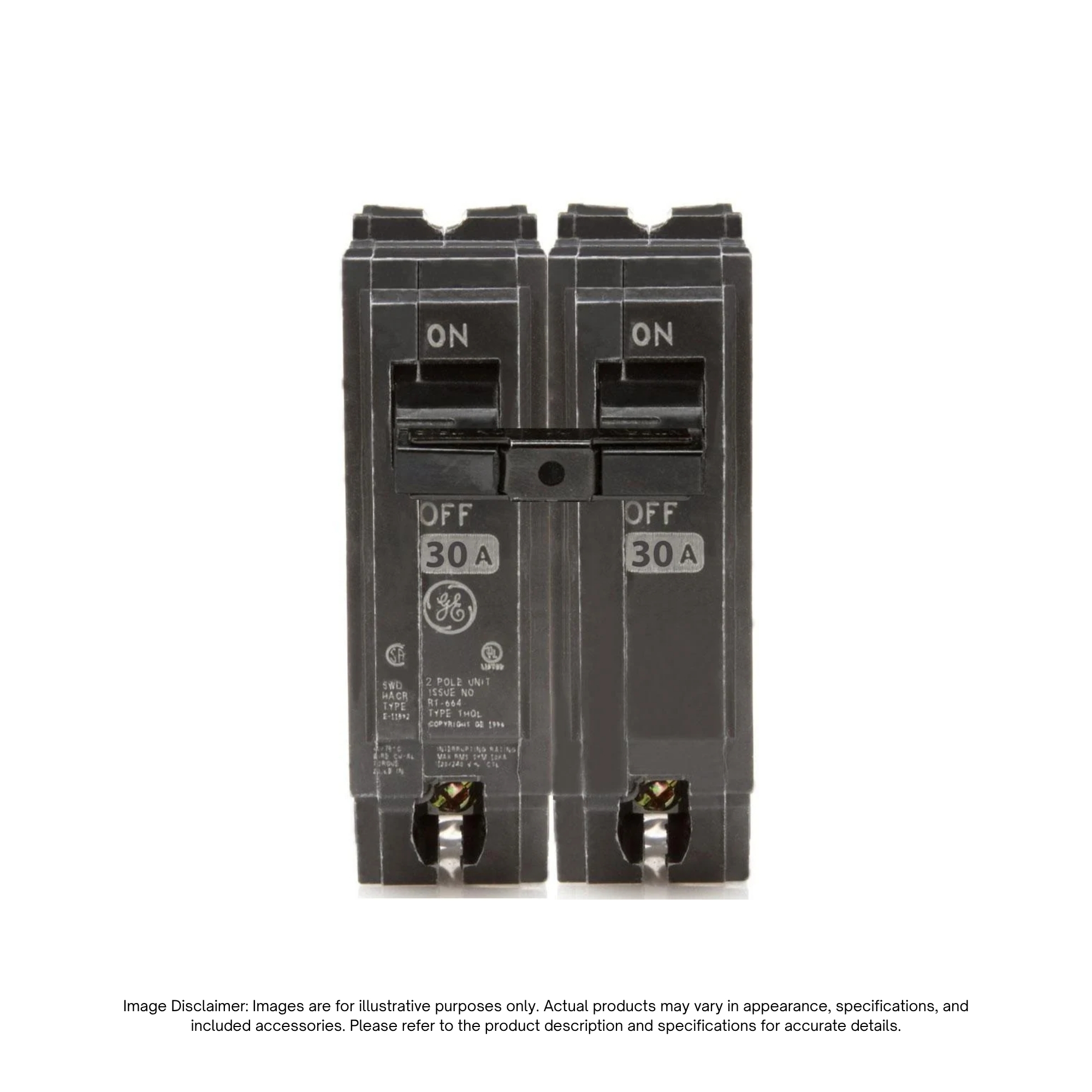

The ABB / GE THQL2130 (Catalog Number: THQL2130, UPC: 783164012927) is a compact, 2-pole thermal-magnetic miniature circuit breaker engineered for residential and commercial electrical distribution systems. Rated for 30 Amps at up to 120/240 VAC, this plug-in Q-Line breaker provides reliable overload and short-circuit protection with an interrupting capacity of 10 kAIC.
Featuring a standard one-inch wide per pole design, the THQL2130 plugs securely into compatible load centers and lighting panels. It incorporates a quick-make / quick-break mechanism, an internal common trip bar, and an easy-to-spot trip indication for enhanced safety. Additionally, it carries an HACR rating and is GSA compliant, making it suitable for heating, air conditioning, and government-specified installations.
Key Features
- Two-Pole Thermal-Magnetic Protection: Combines thermal overload sensing with magnetic short-circuit tripping across 2 poles for reliable circuit isolation.
- 30A / 120/240V Rating: Engineered for two-pole branch circuit protection in single-phase residential and commercial systems.
- 10 kAIC Interrupting Rating: Provides dependable fault-clearing performance at both 120V and 120/240V AC.
- Plug-In Configuration: Designed for fast and secure plug-in mounting directly onto compatible load center bus bars.
- HACR Rated & GSA Compliant: Certified for HVAC equipment usage and meets applicable government procurement standards.
Specifications
| Technical Specification | Detail |
|---|---|
| Catalog Number / Model | THQL2130 |
| Brand / Manufacturer | ABB / GE |
| UPC Code | 783164012927 |
| Product Line | Q-Line (Plug-In) |
| Product Type | Thermal-Magnetic Miniature Circuit Breaker |
| Amperage Rating | 30 A |
| Voltage Rating | 120 VAC / 120/240 VAC |
| Number of Poles | 2-Pole (2P) |
| Interrupting Rating | 10 kAIC at 120 VAC / 120/240 VAC |
| Trip Style / Function | Non-Interchangeable / LI (Long-Time Fixed, Instantaneous Fixed) |
| Special Markings | HACR |
| GSA Compliance | Yes |
| Suitable for Reverse Feed | Yes |
| UL File Number | E11592 |
| Environmental Product Declarations | ABBG-00646-V01.01, ABBG-00676-V01.01 |
| Primary Applications | Residential/commercial load centers, lighting panels, HVAC equipment, and 2-pole branch circuit protection |
