Description

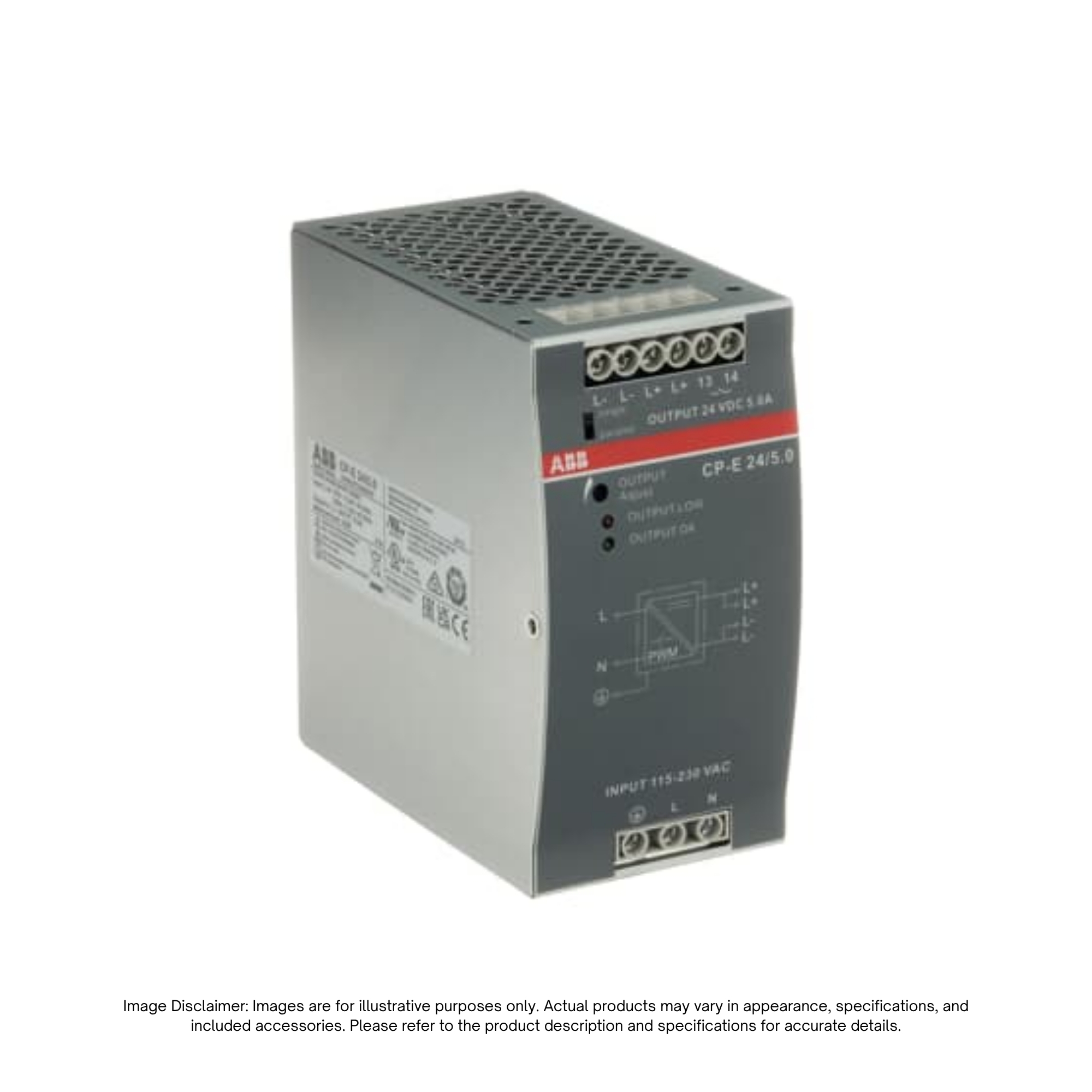

The ABB CP-E 24/5.0 Switch Mode Power Supply (1SVR427034R0000) is a high-efficiency primary switch mode power supply designed for reliable 24 V DC power delivery in industrial automation setups. Operating with an auto-selectable rated input voltage of 115/230 V AC (wide range: 90–132 V AC, 180–264 V AC, and 210–375 V DC), it delivers up to 120 W of continuous power at a 5 A output current.
Featuring an adjustable output voltage range of 22.5 to 28.5 V DC and a classic U/I output characteristic curve, the CP-E 24/5.0 allows up to three units to be connected in parallel for increased power capacity or redundant system designs. Built with an IP20 touch-safe housing and broad ambient operating tolerance (-35 °C to +70 °C), it mounts easily onto standard TH35 DIN rails.
Key Features
- Auto-Select Wide-Range Input: Supports 115 / 230 V AC rated inputs (90–132 V AC / 180–264 V AC / 210–375 V DC).
- Adjustable 24 V DC Output: Delivers 120 W (5 A at 24 V DC) with output voltage fine-tuning from 22.5 to 28.5 V DC.
- Parallel Operation Capable: Supports parallel connection of up to 3 units for capacity expansion or redundancy.
- U/I Output Characteristic: Provides reliable power delivery under complex operational and starting loads.
- 35mm DIN-Rail Mounting: Snaps securely onto standard TH35-7.5 and TH35-15 DIN rails according to IEC 60715.
- Comprehensive Approvals: Certified to UL 508, cUL, UR (UL 60950), ANSI/ISA-12.12, CE, and CSA standards.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | CP-E 24/5.0 |
| Product ID (SKU) | 1SVR427034R0000 |
| Brand / Manufacturer | ABB |
| Product Type | Switch Mode Power Supply (1-Phase) |
| Input Voltage (Uin) | 115 / 230 V AC (90–132 / 180–264 V AC, 210–375 V DC) |
| Rated Output Voltage | 24 V DC (Adjustable 22.5 … 28.5 V DC) |
| Rated Output Current / Power | 5 A / 120 W |
| Degree of Protection | IP20 (Housing and Terminals) |
| Operating Temperature | -35 °C to +70 °C |
| EAN | 4016779669689 |
