Description

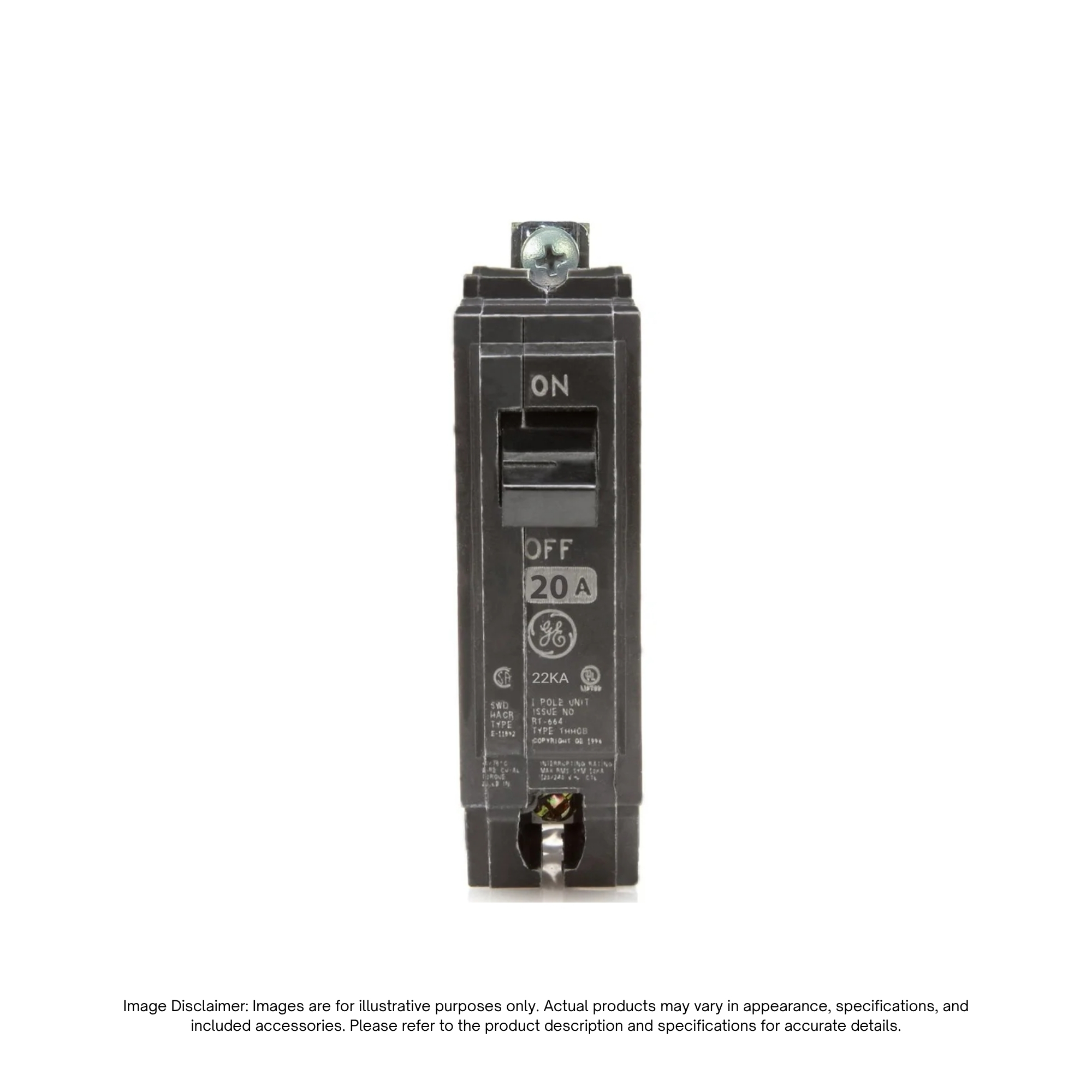

The ABB / GE THQB1120 (Catalog Number: THQB1120) is a compact, 1-pole thermal-magnetic miniature circuit breaker engineered for residential and commercial electrical distribution systems. Rated for 20 Amps at 120/240 VAC, this bolt-on Q-Line breaker provides reliable overload and short-circuit protection with a high interrupting capacity of 22 kAIC.
Featuring a standard one-inch wide per pole design, the THQB1120 incorporates a quick-make / quick-break mechanism, a common trip bar, and an easy-to-spot trip indication for enhanced safety. It is also rated for HACR and SWD applications, making it ideal for heating, air conditioning, refrigeration equipment, and fluorescent lighting circuits.
Key Features
- Thermal-Magnetic Protection: Combines thermal overload sensing with magnetic short-circuit tripping for comprehensive circuit safety.
- 20A / 120/240V Rating: Designed for standard branch circuit protection across single-phase electrical systems.
- High Interrupting Capacity: Delivers 22 kAIC at both 120V and 120/240V AC for robust fault clearing.
- Bolt-On Design: Engineered specifically for secure bolt-on connection to load centers and lighting panel bus connections.
- HACR & SWD Rated: Certified for use with heating, air conditioning, refrigeration equipment, and switching duty fluorescent lighting loads.
Specifications
| Technical Specification | Detail |
|---|---|
| Catalog Number / Model | THQB1120 |
| Brand / Manufacturer | ABB / GE |
| Product Line | TEY / Q-Line (Bolt-On) |
| Product Type | Thermal-Magnetic Miniature Circuit Breaker |
| Amperage Rating | 20 A |
| Voltage Rating | 120 VAC / 120/240 VAC |
| Number of Poles | 1-Pole (1P) |
| Interrupting Rating | 22 kAIC at 120 VAC / 22 kAIC at 120/240 VAC |
| Trip Style / Function | Non-Interchangeable / LI (Long-Time Fixed, Instantaneous Fixed) |
| Special Markings | HACR, SWD (Switching Duty) |
| Suitable for Reverse Feed | Yes |
| UL File Number | E11592 |
| Primary Applications | Residential/commercial panelboards, lighting panels, HVAC equipment, and branch circuit protection |
