Description

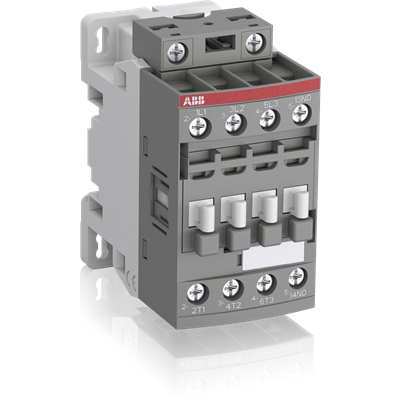

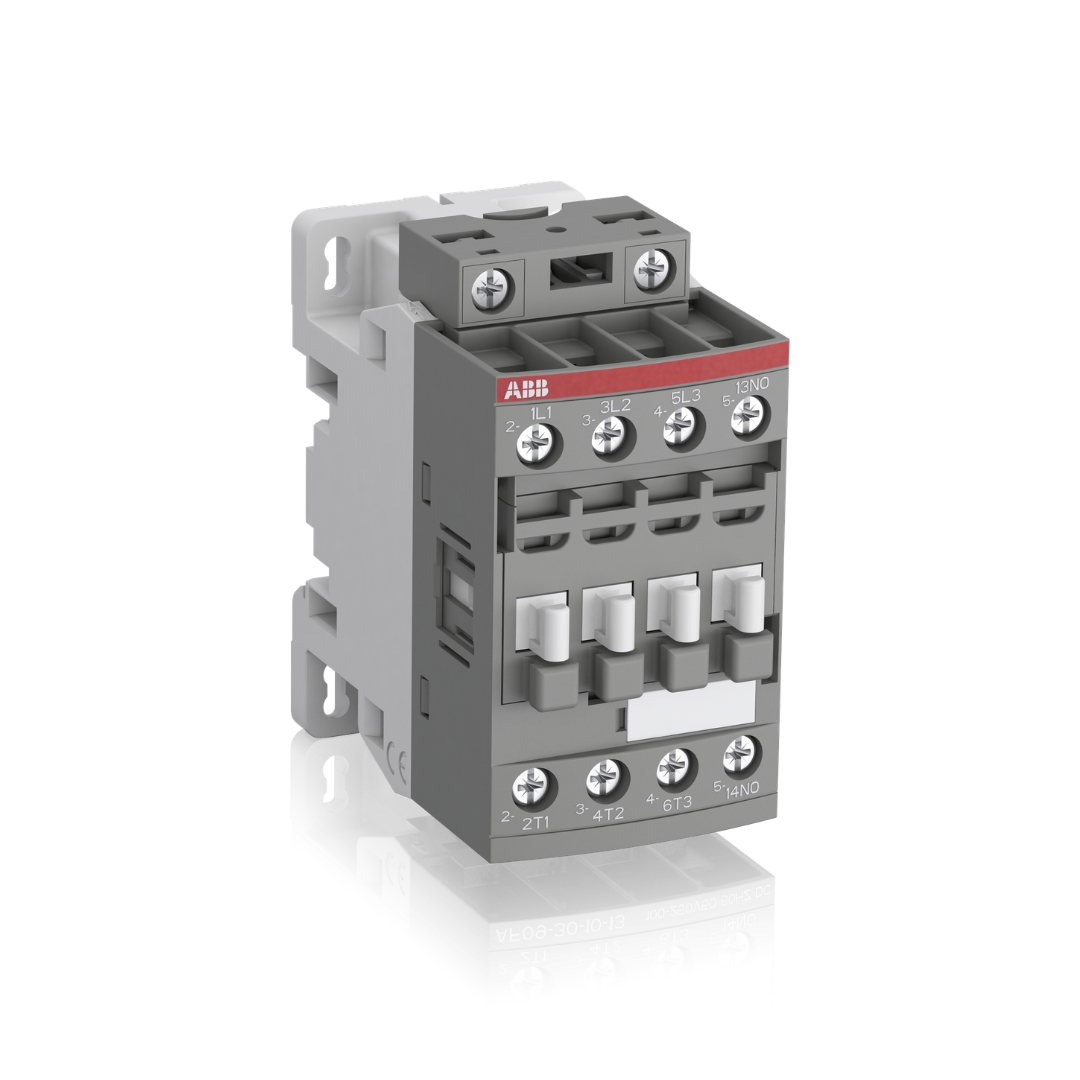

The ABB AF16-30-10-11 is a versatile, non-reversing across-the-line contactor designed for efficient control of electric motors and power circuits in demanding industrial and commercial applications. Featuring a 3-pole main contact configuration (3NO) and an integrated 1NO auxiliary contact, this compact block contactor handles maximum load currents up to 30 A and power ratings up to 9 kW. It is engineered to deliver reliable switching performance while maintaining a compact footprint inside your control panel.
Equipped with an advanced electronic coil interface, the AF16-30-10-11 seamlessly accepts wide control voltage ranges (24 to 60 V AC at 50/60 Hz and 20 to 60 V DC), allowing it to easily manage large control voltage fluctuations. The unit features built-in surge suppression to protect sensitive control circuits without requiring external surge suppressors, significantly reducing panel energy consumption and overall footprint. Designed for straightforward mounting on standard DIN rails, with touch-safe IP20 screw terminals, this contactor offers a durable, energy-efficient solution for modern electrical control systems.
Key Features
- Wide Coil Voltage Range: Electronic coil interface accepts 24 to 60 V AC and 20 to 60 V DC, managing large control voltage variations effortlessly.
- Built-In Surge Suppression: Integrated protection eliminates the need for external surge suppressors, saving space and cost.
- Energy Efficient: Reduces control circuit energy consumption while ensuring distinct, reliable opening and closing operations.
- 3 Power Poles & Auxiliary Contact: Configured with 3 Normally Open (3NO) main contacts plus 1 Normally Open (1NO) auxiliary contact for signaling and interlocking functions.
- DIN Rail Mounting: Standard 35 mm DIN rail mounting design for quick, modular panel assembly.
- Compact & Secure Design: Features an IP20 enclosure with standard screw terminal connections for reliable operation.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | AF16-30-10-11 |
| Product Type | Non-Reversing Contactor |
| Series | AF16 |
| Number of Poles | 3 |
| Main Contact Configuration | 3NO (3 Normally Open) |
| Auxiliary Contacts | 1NO (1 Normally Open) |
| Coil Voltage | 24 to 60 V AC, 20 to 60 V DC |
| Frequency Rating | 50/60 Hz |
| Maximum Load Current | 30 A |
| Wattage | 9 kW |
| Maximum Contact Voltage | 690 V AC |
| Contact Type | Non-Reversing Across-the-Line |
| Terminal Type | Screw Terminal |
| Mounting Type | DIN Rail |
| Enclosure Rating | IP20 |
| Operating Cycles | 3600 Cycles per hour |
| Operating Temperature | -76°F to 176°F (-60°C to +80°C) |
| Dimensions | 1.77 in W x 3.39 in H x 3.03 in D (45 x 86 x 77 mm) |
