Description

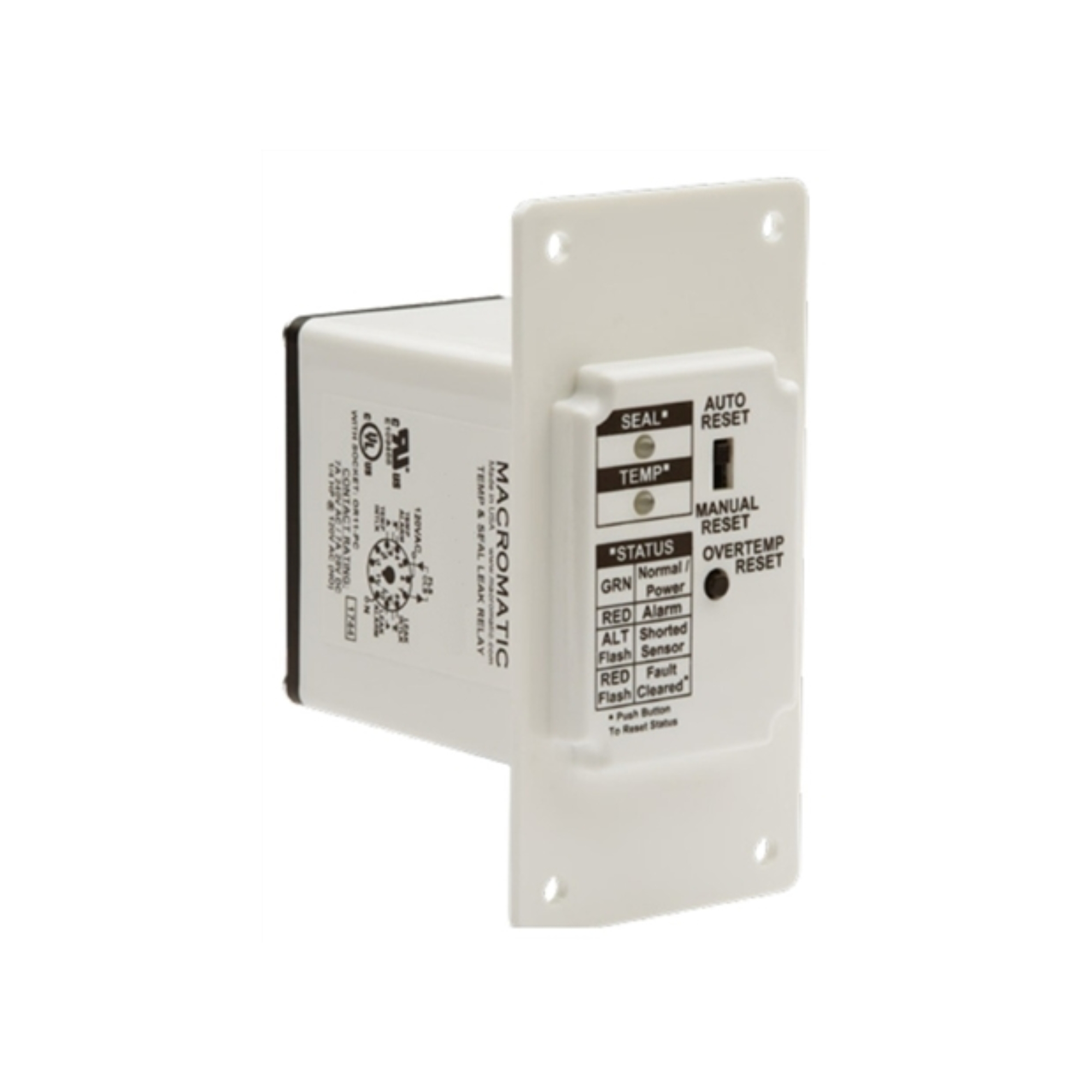

The Macromatic TCF2F is a flange-mounted seal leak and over-temperature relay specifically engineered to protect submersible pump motors from thermal overload and fluid contamination. Designed as a direct replacement for Flygt submersible pumps equipped with FLA or CLS sensors (Flygt Mini-CAS style relays), the TCF2F operates on a 120 VAC control supply and features a door-mountable flange enclosure for convenient panel-face installation and visual monitoring.
This dual-function protection relay monitors motor cavity resistance via a 5 VDC pulsed probe signal to detect seal breaches, while concurrently monitoring the motor’s normally closed (N.C.) thermal switch for over-temperature conditions. Unlike standard socket-mounted models, the TCF2F offers selectable Automatic or Manual reset modes for over-temperature trips, incorporating a front-panel reset button. Top-mounted dual-color LEDs (TEMP and LEAK) provide clear visual diagnostics for normal operation and fault conditions, making it an essential component for municipal lift stations and industrial wastewater pumping installations.
Key Features
- Direct Flygt Pump Compatibility: Engineered as a direct replacement for Flygt Mini-CAS monitoring relays using FLA or CLS sensor inputs.
- Flange Door Mount Design: Features a flange enclosure for panel door or enclosure face mounting, complete with a back-mounted 11-pin socket.
- Selectable Auto / Manual Over-Temp Reset: Includes a low-profile mode switch allowing choice between Automatic reset or Manual reset using the front push button.
- Dual Submersible Pump Protection: Combines motor over-temperature interlock and resistance-based seal leakage detection in a single housing.
- Pulsed 5V DC Probe Signal: Low-voltage pulsed probe signal prevents sensor plating and electrolytic corrosion inside the pump cavity.
- Dual 7A SPDT Relay Outputs: Provides two independent 7A SPDT contacts for pump contactor control and external remote alarm circuits.
- Top-Panel Status Diagnostics: High-visibility dual-color status LEDs (TEMP and LEAK) allow quick visual verification of power, thermal status, and seal integrity.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | TCF2F |
| Brand | Macromatic |
| Product Type | Seal Leak & Over-Temperature Relay (Flange Mount) |
| Compatibility | Direct replacement for Flygt submersible pumps with FLA or CLS sensors (Mini-CAS) |
| Control Voltage | 120 VAC (+10/-15% at 50/60 Hz) |
| Output Contacts | (2) SPDT (1 Over-Temperature, 1 Seal Leak) |
| Output Contact Rating | 7 A @ 240 VAC / 7 A @ 28 VDC, 1/4 HP @ 120 VAC (N.O.) |
| Over-Temperature Reset Modes | Selectable Auto or Manual (includes front reset button) |
| Leakage Probe Voltage | 5 VDC Pulsed |
| Leakage Sensitivity | Adjustable via low-profile switch |
| Over-Temperature Threshold | 5 kΩ (N.C. Thermal Switch) |
| Response Time | Pick-up: 1 second | Drop-out: 1 second |
| Power Burden | 3 VA |
| Enclosure & Mounting Style | Flange Enclosure for door/panel face mounting (requires standard 11-pin octal socket; back-mounted socket included) |
| Status Diagnostics | Top-mounted LEDs (TEMP: Green=Normal, Red=Fault | LEAK: Green=Normal, Red=Leak Detected) |
| Operating Temperature Range | -18°F to 149°F (-28°C to 65°C) |
| Storage Temperature Range | -40°F to 185°F (-40°C to 85°C) |
| Lifespan | Mechanical: 10,000,000 operations | Full Load: 100,000 operations |
| Primary Applications | Flygt submersible pump protection, municipal wastewater lift stations, industrial sewage pumps, storm water stations |
