70170-D – Macromatic | 11 pin octal socket, 10 Amp, 300V

Description

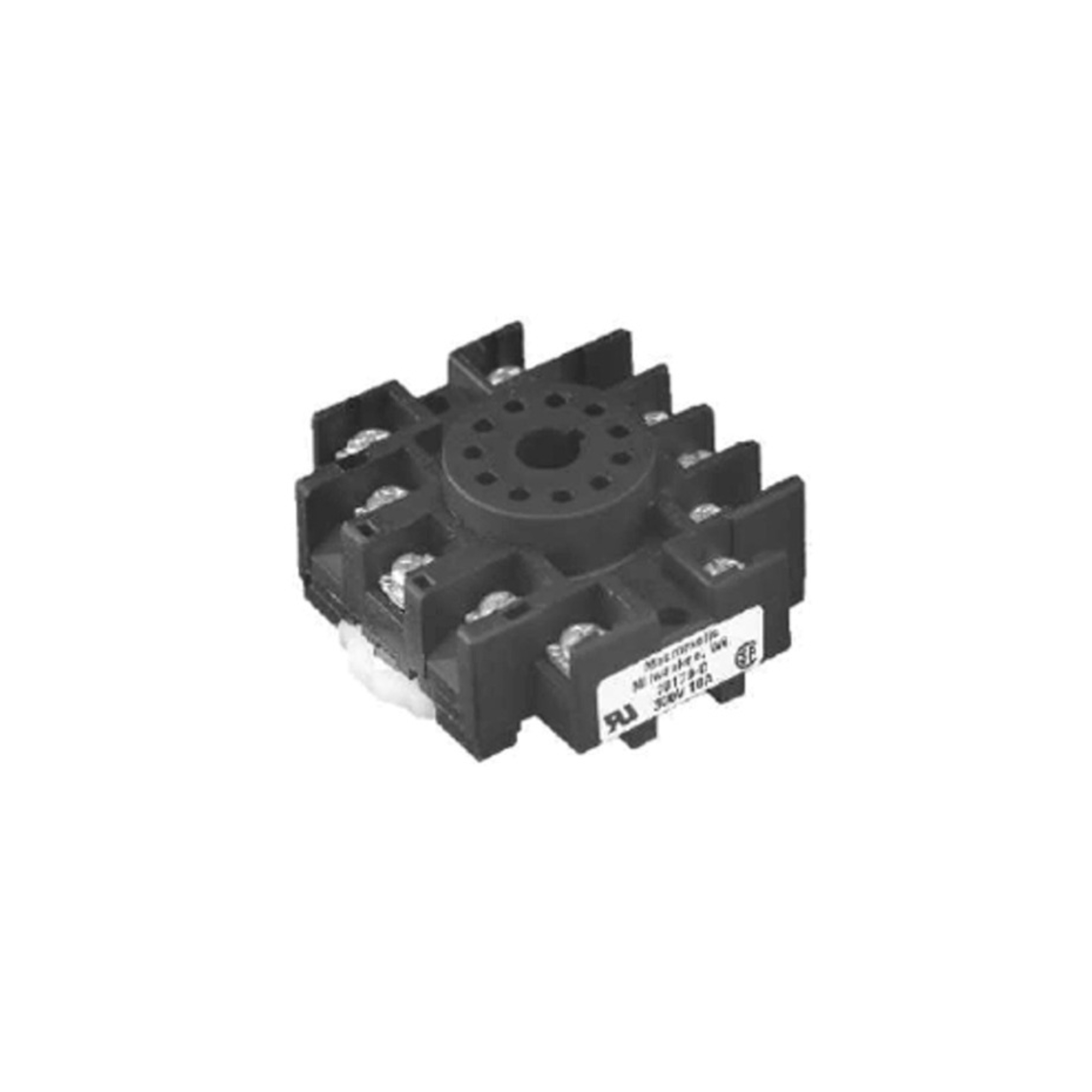

The Macromatic 70170-D is a heavy-duty, 11-pin octal socket base designed for secure mounting and wiring of 11-pin plug-in industrial relays, time delay relays, and pump monitoring controls. Rated for 10 Amps at 300 VAC, this terminal socket features durable pressure-plate screw terminals to ensure reliable electrical connections in industrial control panels.

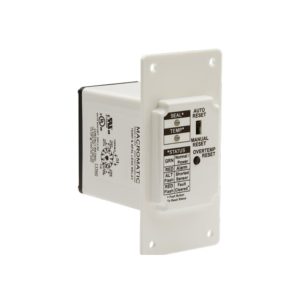

Engineered for installation flexibility, the 70170-D supports both direct surface mounting using panel screws and rapid snap-on mounting onto standard 35mm DIN rail. It serves as the standard mounting interface for Macromatic 11-pin plug-in devices—including seal leak/over-temperature relays and multi-function timers—simplifying panel fabrication, maintenance, and field device replacement.

Key Features

• Standard 11-Pin Octal Interface: Compatible with all standard 11-pin octal plug-in relays, timers, and monitoring controls.
• Dual Mounting Configuration: Snaps directly onto standard 35mm DIN rail or mounts to panel backplates via surface screw holes.
• 10A 300V Industrial Rating: Rated for 10 Amps at up to 300 VAC to handle standard industrial control and pilot duty loads.
• Pressure-Plate Screw Terminals: Robust screw terminals hold wire terminations firmly to prevent accidental loosening from vibration.
• Simplified Field Maintenance: Enables quick plug-in replacement of control relays without disconnecting panel wiring.

Specifications
