Description

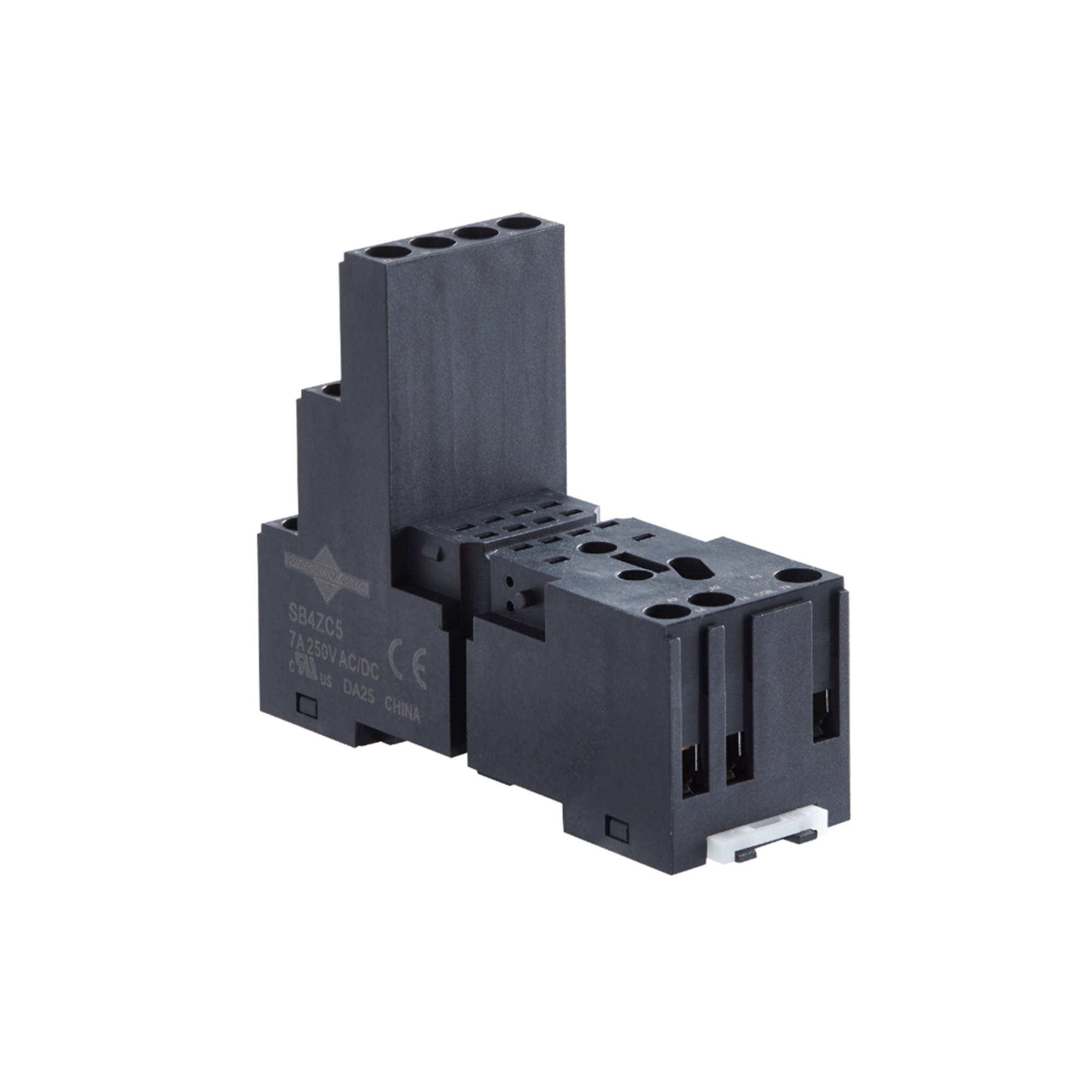

The Macromatic SB2ZC5 is an 8-blade finger-safe terminal socket engineered for secure mounting and wiring of Macromatic GB series 2-pole general purpose industrial relays. Designed for high versatility in control panel fabrication, this heavy-duty socket supports both direct panel surface mounting via screws or fast snap-on installation onto standard 35mm DIN rail.
Constructed to ensure safe electrical connections, the SB2ZC5 features 8 blade terminals with pressure plate screw terminals rated for a tightening torque of 5.31 in-lbs (0.6 N·m). Measuring 3.0 in L x 1.1 in W x 2.4 in H (76.2 mm x 27.9 mm x 61.0 mm), this compact socket simplifies relay replacement, circuit isolation, and wire routing in industrial control, automation, and power distribution systems.
Key Features
- 2-Pole General Purpose Relay Socket: Engineered specifically for 8-blade Macromatic GB series 2-pole plug-in industrial relays.
- Dual Mounting Flexibility: Supports easy snap-on mounting onto standard 35mm DIN rail or direct surface panel mounting via screw holes.
- Secure Screw Terminals: Durable blade terminal pressure screws designed for a maximum tightening torque of 5.31 in-lbs (0.6 N·m).
- Compact Form Factor: Space-saving width of 1.1 in (27.9 mm) optimizes panel space utilization.
- Safety & Compliance Recognized: UL and cUL Recognized and CE marked for high operational safety standards in industrial panels.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | SB2ZC5 |
| Brand | Macromatic |
| Product Type | General Purpose Relay Terminal Socket / Base |
| Relay Series Compatibility | Macromatic GB Series 2-Pole Relays |
| Number of Blade Terminals / Pins | 8 Blade Pins |
| Mounting Type | 35mm DIN Rail Mount or Direct Panel Surface Screw Mount |
| Terminal Type | Screw Terminals |
| Terminal Tightening Torque | 5.31 in-lbs (0.6 N·m) |
| Dimensions (L x W x H) | 3.0 in x 1.1 in x 2.4 in (76.2 mm x 27.9 mm x 61.0 mm) |
| Standards & Approvals | UL Recognized, cUL Recognized, CE Marked |
| Primary Applications | Industrial control panels, relay mounting and wiring, HVAC controls, automation panel wiring |
