RTXP – ABB | BASE BI-REL CL

Description

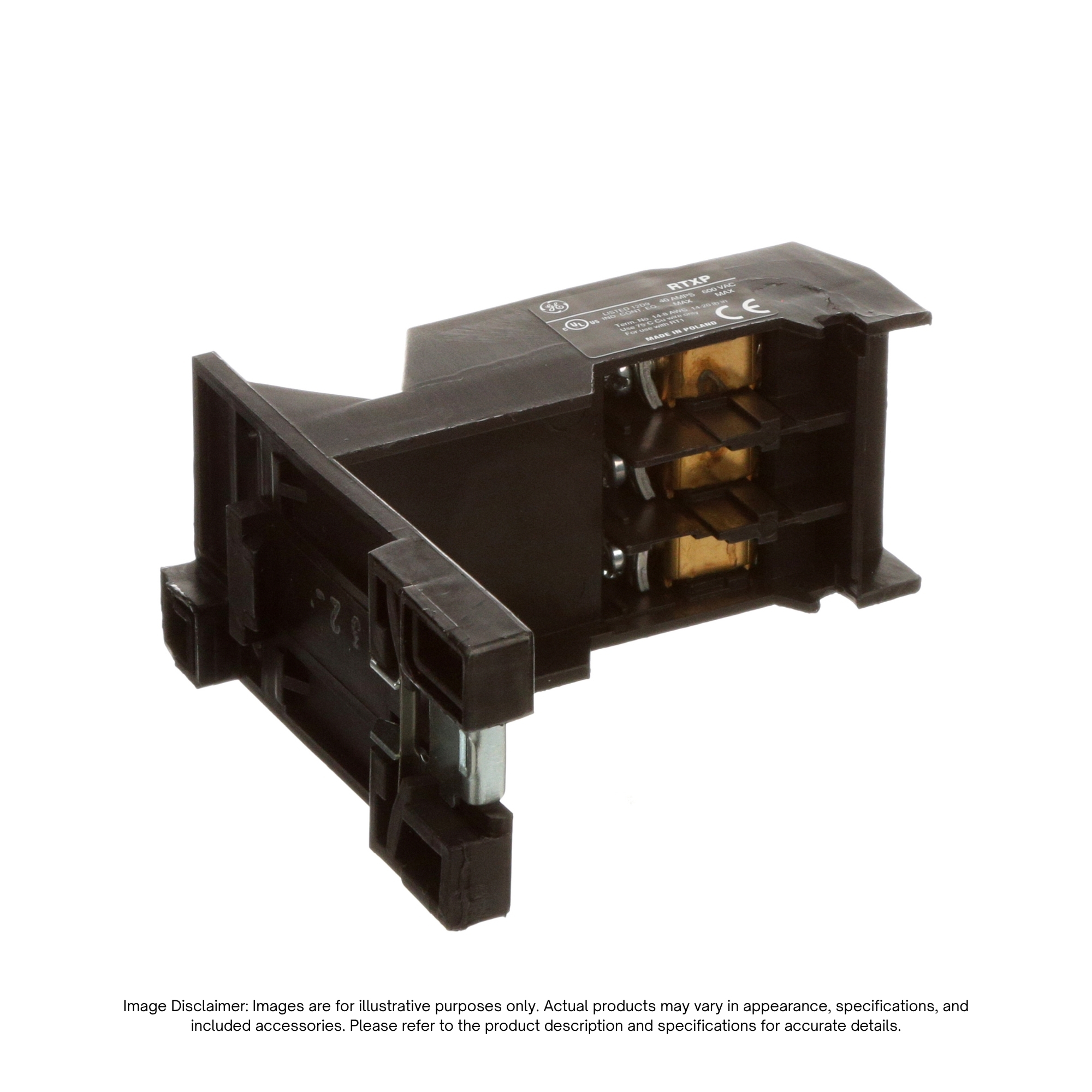

The ABB RTXP Overload Relay Mounting Base (RTXP) is a mounting accessory designed for compatible ABB RT1 Series thermal overload relays. It allows the overload relay to be installed separately from the contactor, providing greater flexibility when configuring direct-on-line (DOL) motor starter assemblies and industrial control panels.

Designed for panel mounting or installation on a standard 35 mm DIN rail, the RTXP provides an alternative mounting arrangement for compatible RT1 overload relays. This makes it suitable for control panel layouts where the relay needs to be positioned separately from the contactor while maintaining integration with the motor starter’s control and protection circuit.

The RTXP is a mounting accessory rather than a standalone protection device. It is intended for use with compatible ABB RT1 thermal overload relays in industrial motor control, machinery, and electrical panel applications.

Key Features

• Separate Relay Mounting: Allows compatible RT1 thermal overload relays to be mounted independently of the contactor.
• DIN-Rail Compatible: Designed for mounting on a standard 35 mm DIN rail conforming to DIN EN 50022-35.
• Panel Mounting: Provides an alternative mounting option for industrial control panels and motor starter assemblies.
• RT1 Series Compatibility: Designed specifically for compatible ABB RT1 Series thermal overload relays.
• DOL Starter Applications: Supports flexible layouts for direct-on-line motor starter control and protection assemblies.
• Compact Accessory Design: Helps accommodate different panel layouts without requiring the overload relay to be mounted directly on the contactor.

Specifications
