Description

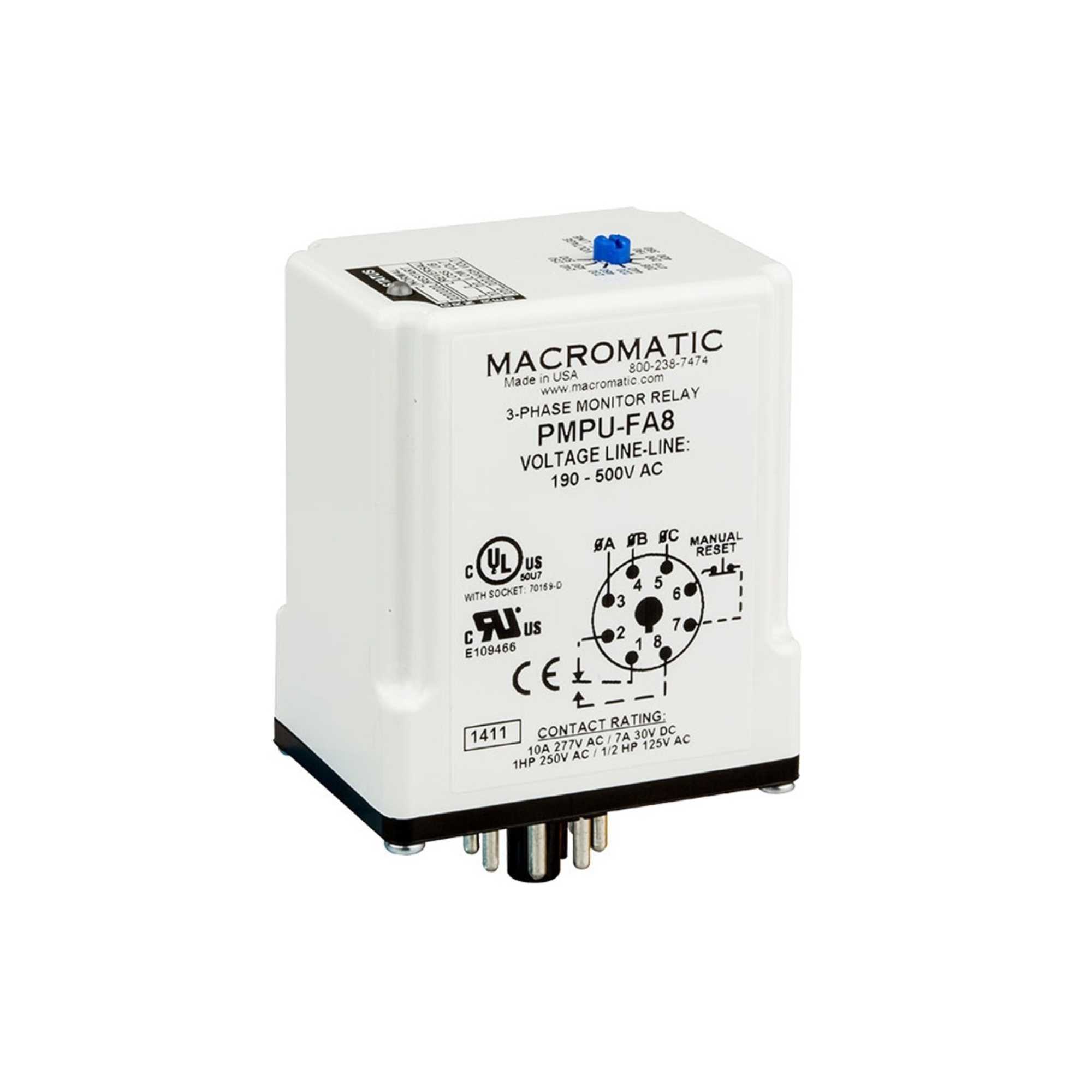

The Macromatic PMPU-FA8 is a universal 3-phase line voltage monitoring relay engineered to protect heavy industrial equipment, motors, and HVAC compressors from catastrophic power fault damage. Operating across an expansive nominal voltage range of 190 to 500 VAC (with an actual monitored range of 156 to 550 VAC), the PMPU-FA8 uses True RMS voltage measurement technology to deliver precise voltage sensing across distorted or harmonic-laden line supplies.
This 8-pin plug-in relay continuously monitors incoming 3-phase power against five critical fault conditions: phase loss, phase reversal, phase unbalance, undervoltage, and overvoltage. Upon detecting a fault, the 10A SPDT relay de-energizes after a calibrated time delay to disconnect the load and prevent motor overheating or mechanical failure. Featuring a top-mounted bi-color diagnostic LED that retains fault codes even during a total phase loss, the PMPU-FA8 supports automatic reset upon fault recovery or manual reset via an external normally closed (N.C.) push button connected across pins 6 and 7.
Key Features
- Comprehensive 5-Point 3-Phase Protection: Guards 3-phase machinery against phase loss, phase reversal, phase unbalance, undervoltage, and overvoltage.
- Universal 190–500 VAC Range: Wide input range covers standard global 3-phase voltages, simplifying inventory requirements for OEMs and control panel builders.
- True RMS Voltage Sensing: Ensures accurate line voltage measurement and trip point precision even in environments with non-linear loads or electrical noise.
- Fast & Intelligent Fault Delays: Rapid 100 ms trip response for phase loss and reversal; 0.25 s for severe phase unbalance (>12%); and 4-second fixed delay for under/overvoltage to prevent nuisance tripping.
- Automatic or Manual Reset Modes: Automatically resets after a 2-second delay upon power restoration, or supports manual reset wiring via pins 6 and 7.
- Diagnostic LED with Memory: Bi-color LED provides instant visual troubleshooting and continues to display active fault indication even if a phase is completely lost.
- Standard 8-Pin Octal Plug-In: Industry-standard 8-pin octal socket design (requires 600V-rated socket such as Macromatic 70169-D for line voltages exceeding 300V).
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | PMPU-FA8 |
| Brand | Macromatic |
| Product Type | 3-Phase Voltage Monitoring Relay |
| Nominal Line Voltage | 190 to 500 VAC (50/60 Hz) |
| Monitored Voltage Range | 156 to 550 VAC |
| Measurement Type | True RMS |
| Protection Functions | Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage, Overvoltage, Rapid Cycling |
| Output Contact Configuration | 10A SPDT |
| Contact & HP Ratings | 10 A @ 277 VAC / 7 A @ 30 VDC, 1 HP @ 250 VAC, 1/2 HP @ 125 VAC, Pilot Duty C300 |
| Undervoltage Threshold / Reset | Fixed at 90% of line voltage setting (Resets at +3% of trip setting) |
| Overvoltage Threshold / Reset | Fixed at 110% of line voltage setting (Resets at 107% of line voltage) |
| Phase Unbalance Threshold | Fixed at 6% unbalance |
| Fault Drop-out Response Times | Phase Loss & Reversal: 100 ms | Under/Overvoltage & Normal Unbalance: 4 s | Severe Unbalance (>12%): 0.25 s |
| Restart Time Delay | 2 seconds fixed |
| Reset Modes | Automatic (or Manual via external N.C. switch across pins 6 & 7) |
| Power Consumption | Less than 40 VA |
| Mounting / Socket Requirement | Plug-in (8-pin octal socket; requires 600V-rated socket like Macromatic 70169-D for line voltages > 300V) |
| Status Indication | Top-mounted bi-color LED (Normal state and specific fault diagnostics) |
| Operating Temperature Range | -18°F to 149°F (-28°C to 65°C) |
| Storage Temperature Range | -40°F to 185°F (-40°C to 85°C) |
| Lifespan | Mechanical: 10,000,000 operations | Full Load: 100,000 operations |
| Primary Applications | 3-phase motor protection, commercial HVAC compressors, industrial pumps, elevators, emergency generator sets, power control panels |
