70169-D – Macromatic | 8 pin octal socket, 10 Amp, 600V

Description

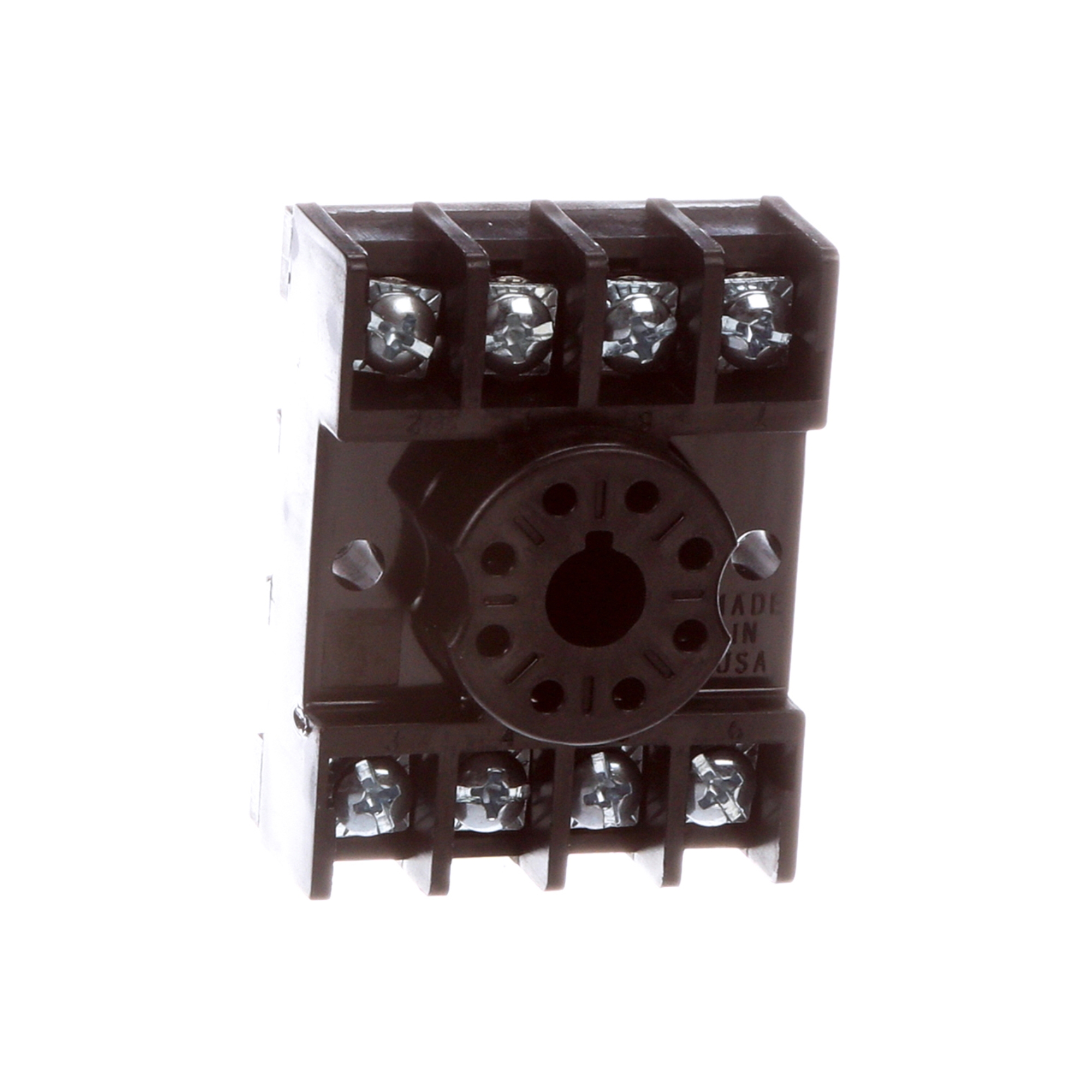

The Macromatic 70169-D is a heavy-duty, 600V-rated 8-pin octal socket base designed for secure mounting and panel wiring of 8-pin plug-in industrial relays, time delay relays, alternating relays, and 3-phase voltage monitoring controls. Rated for 10 Amps at up to 600 VAC, this high-voltage socket provides the necessary insulation rating required when deploying monitoring relays (such as the Macromatic PMPU series) on system voltages exceeding 300 V.

Engineered for control panel installation flexibility, the 70169-D features pressure-plate screw terminals and supports both fast snap-on mounting onto standard 35mm DIN rail and direct surface mounting via panel backplate screws. It establishes a secure, vibration-resistant electrical connection while enabling rapid, tool-less plug-in replacement of control modules without disturbing existing enclosure wiring.

Key Features

• High-Voltage 600V Rating: Certified for up to 600 VAC operation, making it ideal for 3-phase monitoring relays operating on line voltages above 300V.
• Standard 8-Pin Octal Interface: Compatible with all standard 8-pin octal plug-in relays, timers, alternating relays, and line voltage monitors.
• Dual Mounting Configuration: Snaps directly onto standard 35mm DIN rail or surface mounts to enclosure backplates using screw mounting holes.
• 10A Heavy-Duty Rating: Handles continuous operating currents up to 10 Amps for standard industrial pilot duty and power switching circuits.
• Pressure-Plate Screw Terminals: Robust clamping screw design holds conductors firmly to prevent wire loosening caused by machinery vibration.
• Simplified Field Maintenance: Permits fast plug-in unit swapping for maintenance or troubleshooting without disconnecting control wiring.

Specifications
