Description

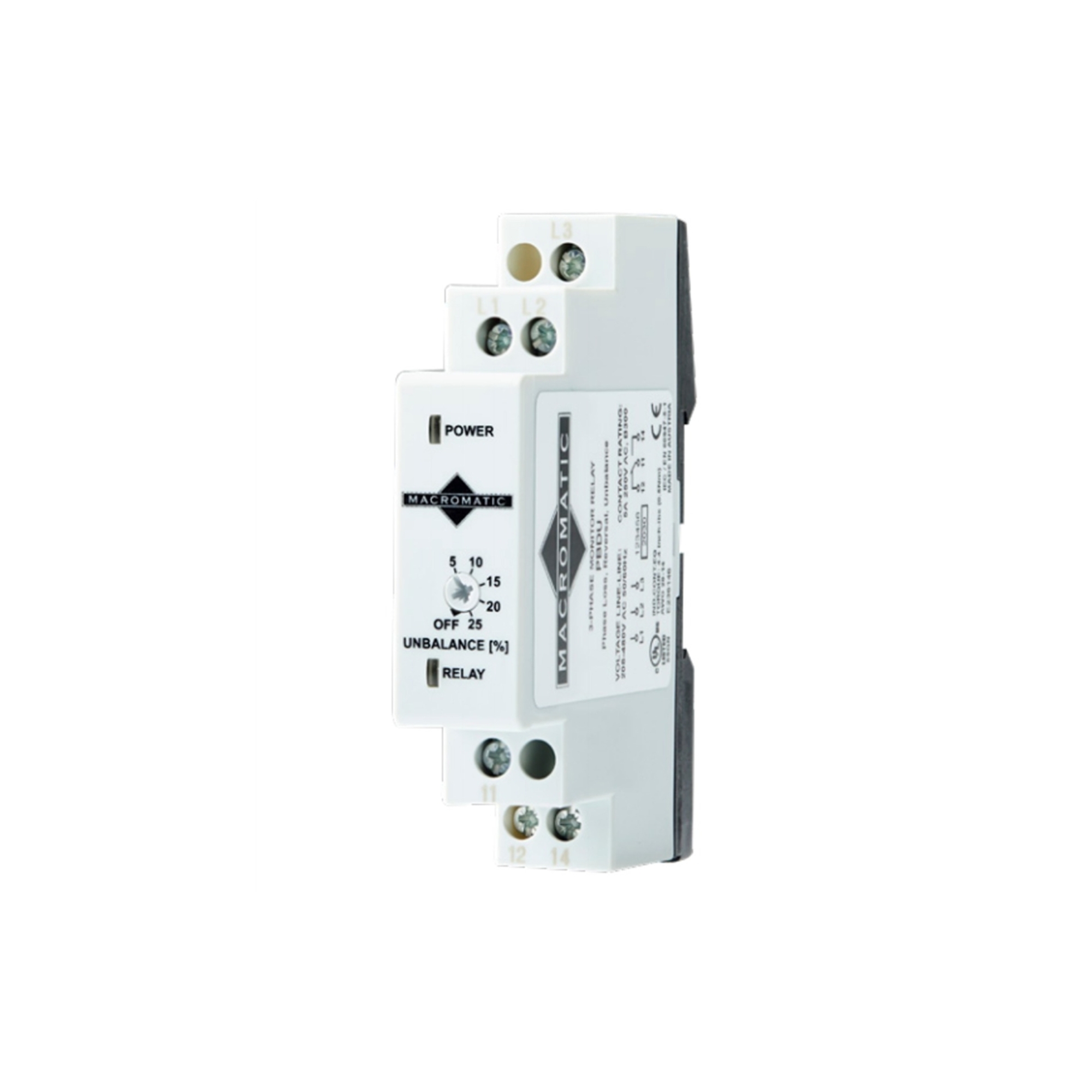

The Macromatic PBDU is an ultra-compact 17.5 mm (0.69 in) DIN rail-mounted 3-phase voltage monitoring relay designed to protect industrial machinery, motors, and commercial HVAC equipment from primary power quality faults. Operating across a universal line voltage range of 208 to 480 VAC (monitored range of 187 to 528 VAC), this modular relay continuously guards against phase loss, phase reversal, and phase unbalance.
Featuring front-panel analog adjustment, the PBDU allows operators to fine-tune phase unbalance sensitivity from 5% to 25%, or disable unbalance protection entirely if required. Upon detecting a phase fault, the unit executes a fast 100 ms (0.1 second) fixed trip delay to de-energize its 5A SPDT output contacts and isolate connected loads. Clear front-face LEDs provide immediate visual status (Green for Power ON, Yellow for Relay Energized), making the PBDU an economical, space-saving choice for industrial automation and motor control panels.
Key Features
- 3-Point Phase Fault Protection: Guards 3-phase electrical equipment against phase loss, phase reversal, and phase unbalance conditions.
- Universal 208–480 VAC Input: Wide input range covers standard 208V, 240V, 380V, 400V, 415V, and 480V 3-phase systems to simplify panel design.
- Adjustable Phase Unbalance: Front-panel dial configures phase unbalance trip threshold between 5% and 25%, or disables the feature when unbalance monitoring is not required.
- Fast 100 ms Trip Response: Fixed 0.1-second trip delay rapidly disconnects loads during severe phase failures to prevent motor overheating.
- Ultra-Compact 17.5 mm Enclosure: Space-saving 0.69 in (17.5 mm) wide housing snaps directly onto standard 35mm DIN rail with an IP20 touch-safe rating.
- Dual Diagnostic LEDs: High-visibility front LEDs indicate power supply status (Green) and output relay energized status (Yellow) for easy troubleshooting.
- Extended Mechanical Service Life: Built for high reliability with up to 20,000,000 mechanical operations and 200,000 electrical operations under load.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | PBDU |
| Brand | Macromatic |
| Product Type | 3-Phase Voltage Monitoring Relay (DIN Rail Mount) |
| Nominal Line Voltage | 208 to 480 VAC (50/60 Hz) |
| Monitored Voltage Range | 187 to 528 VAC |
| Protection Functions | Phase Loss, Phase Reversal, Phase Unbalance (Adjustable or Disableable) |
| Output Contact Configuration | 5A SPDT |
| Output Contact Rating | 5 A @ 250 VAC |
| Phase Unbalance Setting | Adjustable 5% to 25% (or OFF / Disabled) |
| Time Delay on Fault | 0.1 seconds (100 ms fixed) |
| Setting / Repeat Accuracy | Setting Accuracy: ≤5% | Repeat Accuracy: ±2% |
| Power Consumption | 10 VA (1 W) @ 400 V / 50 Hz | 16 VA (1.5 W) @ 480 V / 60 Hz |
| IP Rating | IP20 Finger-Safe |
| Enclosure Width & Mounting | 0.69 in (17.5 mm) width; 35mm DIN Rail Mount |
| Terminal Conductor Capacity | 1 x #14–20 AWG or 2 x #16–20 AWG |
| Terminal Tightening Torque | 8.4 in-lbs / 0.7 ft-lbs (1.0 N·m) maximum |
| Status Indication | Green LED (Power ON) | Yellow LED (Relay Energized) |
| Operating Temperature Range | -13°F to 131°F (-25°C to 55°C) |
| Storage Temperature Range | -13°F to 167°F (-25°C to 75°C) |
| Operating Humidity | 15% to 85% RH (Non-condensing) |
| Lifespan | Mechanical: 20,000,000 operations | Electrical: 200,000 operations (at 1000 VA resistive load) |
| Product Weight | 0.16 lbs (0.072 kg) |
| Primary Applications | 3-phase motor protection, commercial HVAC equipment, industrial pumps, conveyor systems, automation panel protection |
