Description

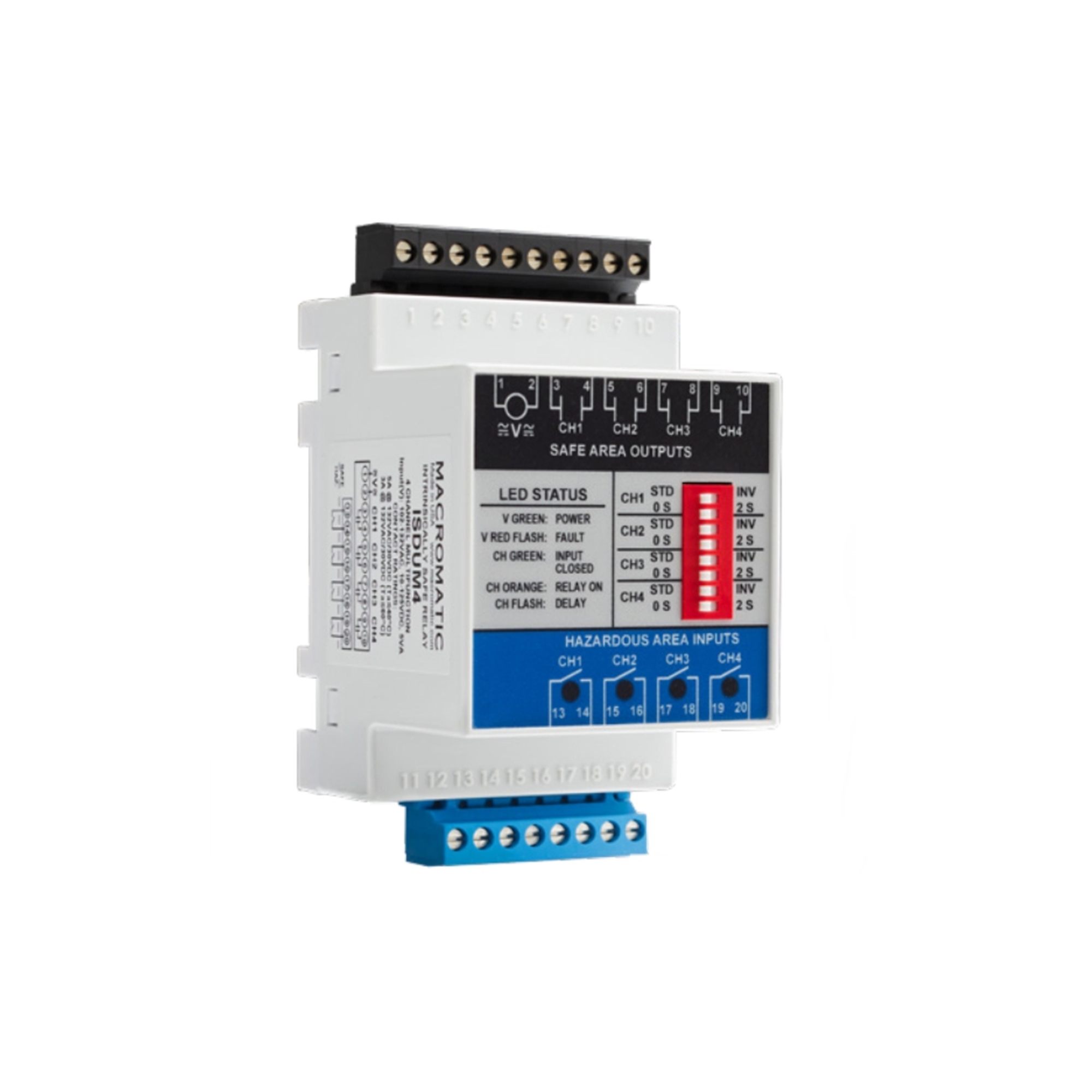

The Macromatic ISDUM4 is a 4-channel intrinsically safe control relay engineered to safely isolate and monitor up to four switch inputs originating from hazardous locations. Operating on a universal control supply of 102–132 VAC or 10–125 VDC, this relay eliminates the need for bulky explosion-proof switch enclosures in classified environments by limiting electrical energy sent to field switches. It is certified for use in Class I, Division 1 (Groups A, B, C, D), Class II, Division 1 (Groups E, F, G), and Class III, Division 1 hazardous locations.
Housed in a compact 2.36 in (60 mm) wide enclosure, the ISDUM4 features 8 top-mounted DIP switches allowing independent configuration for each channel between Standard or Inverse logic, as well as instant response (<50 ms) or a fixed 2-second trip time delay. Equipped with pluggable terminal blocks for simplified panel wiring, four electrically isolated 5A SPST-NO output contacts, and clear LED status indicators (Power, Input, and Output), the ISDUM4 delivers reliable intrinsically safe control for industrial automation, chemical processing, and wastewater applications. Note: The ISDUM4 relay module must be installed in a suitable enclosure located in a non-hazardous area.
Key Features
- 4-Channel Intrinsically Safe Isolation: Safely interfaces up to four control switches from Class I, II, and III, Division 1 hazardous areas with non-hazardous control circuits.
- Independent DIP Switch Configuration: Eight top-accessible DIP switches allow custom channel-by-channel selection of Standard or Inverse logic and 0-second or 2-second time delays.
- Pluggable Terminal Blocks: Heavy-duty removable terminal connectors simplify wiring installation, system testing, and field servicing.
- Isolated 5A SPST-NO Contacts: Provides four independent Single Pole Single Throw – Normally Open output channels rated for 5 A @ 125 VAC / 30 VDC with D300 pilot duty ratings.
- Comprehensive Diagnostic LEDs: Front/top LEDs show power status (Green V LED), active input switch closures (Green Input LEDs), and energized relay state (Orange Output LEDs).
- Flexible Panel Mounting: Snaps directly onto standard 35mm DIN rail or surface mounts using extended clips for #8 screws; terminals accommodate single 14–24 AWG or dual 16/18 AWG conductors.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | ISDUM4 |
| Brand | Macromatic |
| Product Type | 4-Channel Intrinsically Safe Control Relay |
| Hazardous Location Approvals | Class I, Div 1, Groups A, B, C, D | Class II, Div 1, Groups E, F, G | Class III, Div 1 |
| Input / Control Voltage | 102 to 132 VAC / 10 to 125 VDC |
| Input Switch Open Circuit Voltage | 10 VDC |
| Output Contacts | (4) SPST-NO (Single Pole Single Throw – Normally Open), Electrically Isolated |
| Output Contact Ratings | 5 A Resistive @ 125 VAC (40°C) / 30 VDC | 3 A Resistive @ 125 VAC (60°C) / 30 VDC | Pilot Duty D300 |
| Logic Modes | Standard or Inverse Logic (DIP Switch Selectable per Channel) |
| Time Delay Modes | Standard (<50 ms) or Fixed 2-Second Delay (DIP Switch Selectable per Channel) |
| Power Burden / Load | 5 VA Maximum |
| Insulation Voltage | 1500 VAC (Coil-to-contacts, between output channels, and hazardous-to-safe circuits) | 750 VAC (Between open contacts) |
| Terminal Wiring Capacity | Pluggable Terminals; Accepts 1 x #14–24 AWG or 2 x #16/#18 AWG conductors |
| Dimensions (H x W x D) | 4.36 in x 2.36 in x 2.60 in (110.7 mm x 60.0 mm x 66.0 mm) |
| Housing Width & Mounting | 2.36 in (60 mm) width; 35mm DIN Rail Mount or Panel Surface Mount (#8 Screws) |
| Status Diagnostics | Green V LED (Power ON), Green Input LEDs (Input Closed), Orange Output LEDs (Relay Energized) |
| Operating Temperature Range | -18°F to 140°F (-28°C to 60°C) |
| Storage Temperature Range | -67°F to 185°F (-55°C to 85°C) |
| Lifespan | Mechanical: 5,000,000 closures (no load) | Electrical: 50,000 closures (full load AC) |
| Standards & Approvals | UL Listed, cUL Listed, CE Marked |
| Primary Applications | Hazardous area level/flow sensing, chemical processing plants, oil & gas refineries, municipal wastewater stations, paint spraying facilities |
