Description

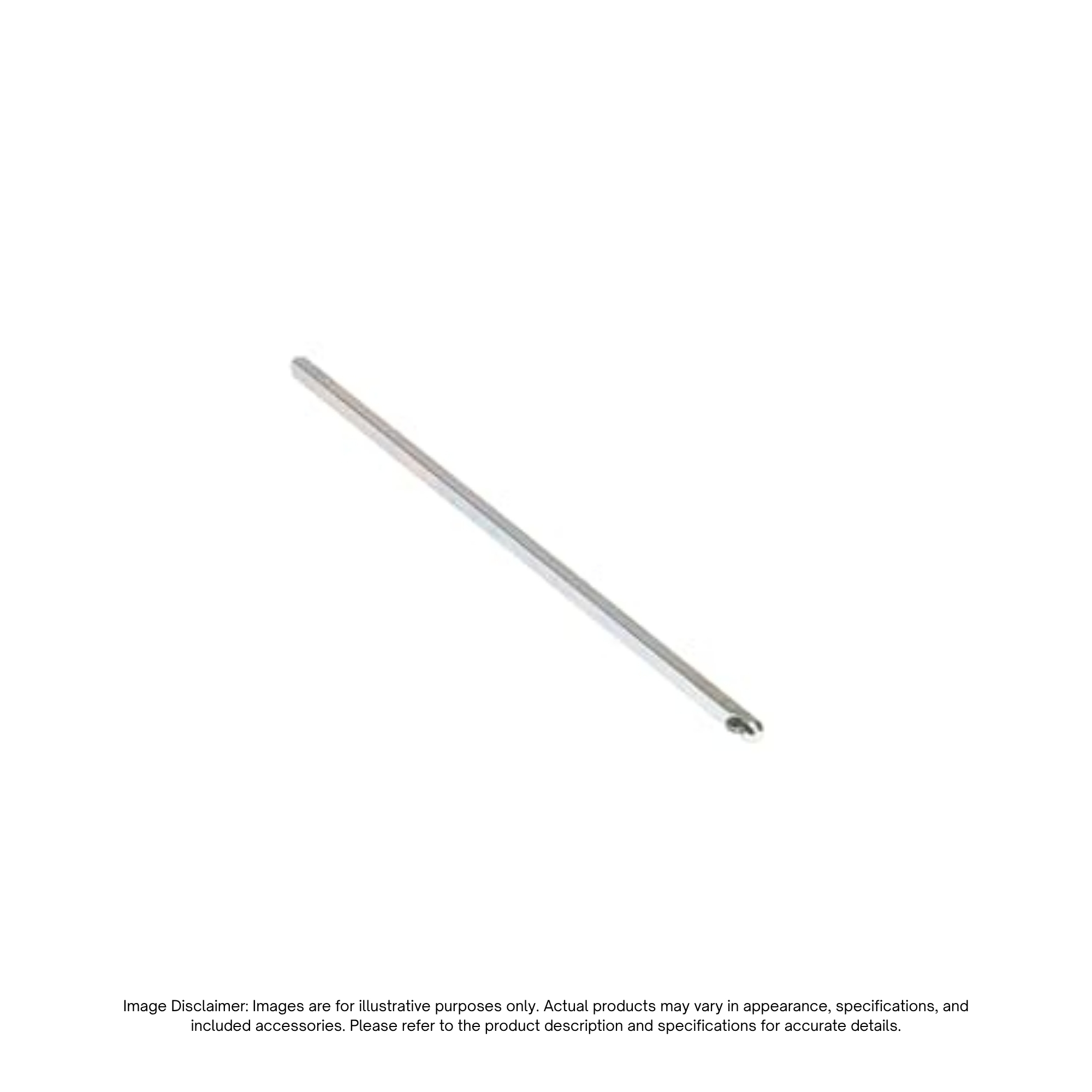

The ABB OXS6X160 Operating Shaft (1SCA101656R1001) is a 160 mm shaft designed for use with compatible ABB selector-type operating handles and switch-disconnectors. Featuring a 6 mm × 6 mm shaft profile, it connects the selector handle to the switch mechanism, enabling manual operation of electrical switches installed in control panels and electrical enclosures.
Designed for compatible ABB OT and OTDC Series switch-disconnectors, the OXS6X160 provides a mechanical connection between the operating handle and switching mechanism. Its 160 mm length accommodates installations requiring a specific mounting depth, making it suitable for industrial power distribution equipment, electrical panels, and machinery installations.
Key Features
- 160 mm Shaft Length: Provides the required reach for compatible selector handle installations.
- 6 mm × 6 mm Shaft Profile: Designed for compatible ABB selector-type operating handles and switch mechanisms.
- Selector Handle Compatibility: Intended for use with compatible ABB selector handles rather than pistol-type operating handles.
- ABB OT Series Compatibility: Suitable for specified OT16 to OT125 and compatible OTDC Series switch-disconnectors.
- External Manual Operation: Connects the selector handle to the switch mechanism for manual switching.
- Industrial Applications: Suitable for electrical enclosures, control panels, and power distribution assemblies.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | OXS6X160 |
| Product ID (SKU) | 1SCA101656R1001 |
| Brand / Manufacturer | ABB |
| Product Type | Operating Shaft |
| Accessory Category | Shafts for Selector Handles |
| Shaft Length | 160 mm |
| Shaft Cross-Section | 6 mm × 6 mm |
| Compatible Handle Type | ABB Selector-Type Operating Handles |
| Compatible Switch Series | Specified ABB OT16, OT25, OT40, OT45, OT63, OT80, OT100, OT125, OTDC16, OTDC25, and OTDC32 models |
| Product Weight | Approximately 0.04 kg |
| EAN | 6417019365800 |
