Description

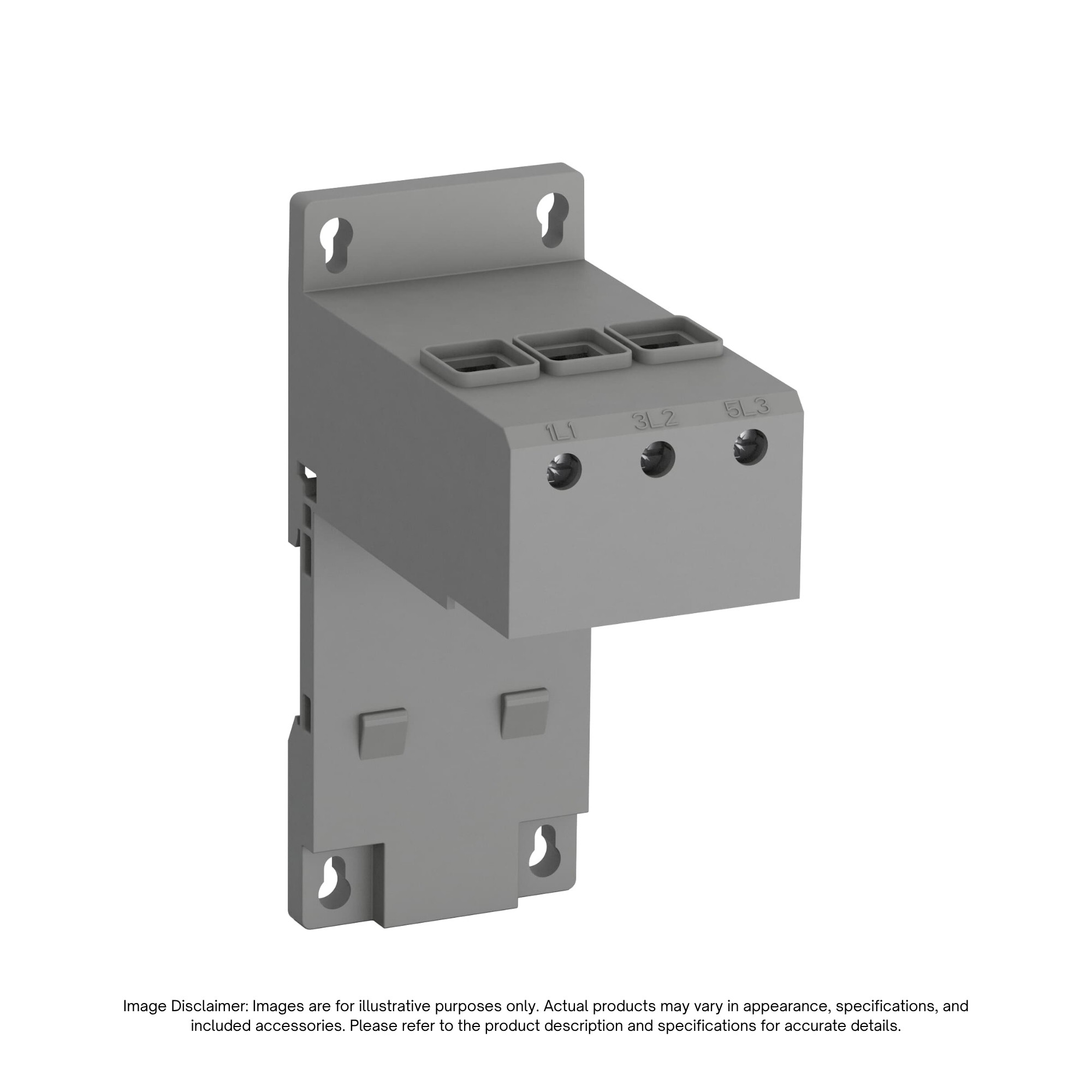

The ABB DB65 Single Mounting Kit (1SAZ801901R1001) is a specialized mounting accessory designed to allow standalone installation of ABB TF65 series thermal overload relays without attaching directly to a contactor. By enabling direct mounting onto standard DIN rails or panel backplates, this adapter kit offers greater installation flexibility in motor protection and control panel design.
Featuring robust terminal connections and durable mechanical housing, the DB65 kit simplifies panel wiring and modular layout arrangements while ensuring secure, long-lasting performance for isolated thermal overload relay applications.
Key Features
- Standalone Relay Mounting: Allows TF65 thermal overload relays to be mounted independently on a DIN rail or mounting plate without a contactor.
- DIN Rail & Screw Mounting: Supports versatile installation options using standard 35mm DIN rail or direct screw panel mounting.
- Simplified Panel Wiring: Streamlines control cabinet layout by allowing separated placement of overload relays and switching devices.
- Durable Construction: Built from high-grade industrial materials for secure mechanical retention and long operational life.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | DB65 |
| Product ID (SKU) | 1SAZ801901R1001 |
| Brand / Manufacturer | ABB |
| Product Range | Overload Relay Accessories |
| Product Type | Single Mounting Kit / Adapter Base |
| Compatibility | ABB TF65 Thermal Overload Relays |
| Mounting Method | 35mm DIN Rail / Mounting Plate |
| EAN | 4013614501722 |
