Description

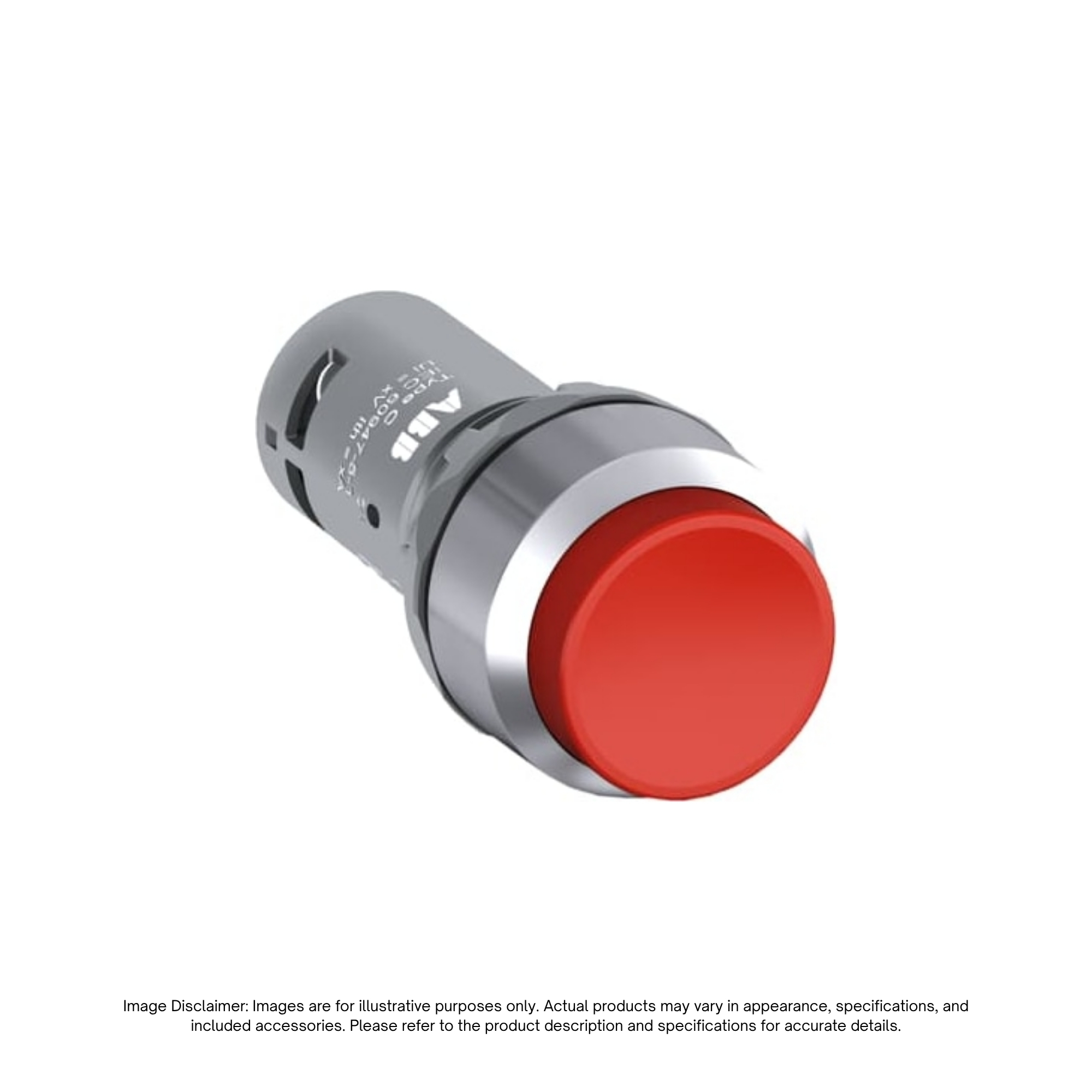

The ABB CP3-30R-01 Pushbutton (1SFA619102R3041) is an all-in-one, non-illuminated extended pushbutton engineered for efficient and robust panel control. As part of ABB’s Compact range, this switch combines the operator, chrome metal bezel, contact block, and mounting mechanism into a single integrated unit, significantly reducing installation time, enclosure depth requirements, and assembly costs.
Featuring a red extended actuator with momentary operation, an elegant chrome metal bezel, and an integrated 1 NC (normally closed) contact block, the CP3-30R-01 supports rated operational voltages up to 300 V. Built with high dust and water resistance, it provides long-lasting, heavy-duty performance for demanding industrial control panels and operator interfaces.
Key Features
- Compact All-in-One Design: Integrates operator, chrome bezel, and 1 NC contact block into a single component for rapid, cost-effective mounting.
- Momentary Extended Action: Raised button profile provides tactile feedback and easy activation, returning to the rest position immediately upon release.
- Premium Chrome Metal Bezel: Delivers high mechanical durability and a polished aesthetic for industrial control panels.
- High Ingress Protection: Engineered with exceptional dust and water resistance for harsh environment operations.
- Integrated 1 NC Contact: Pre-wired with 1 normally closed contact rated for 24–300 V AC/DC control circuits.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | CP3-30R-01 |
| Product ID (SKU) | 1SFA619102R3041 |
| Brand / Manufacturer | ABB |
| Product Range | Compact Range |
| Product Type | Pushbutton |
| Actuator Style | Extended (Red) |
| Function / Position | Momentary Action |
| Bezel Material | Chrome Metal |
| Illumination | Non-Illuminated |
| Contact Configuration | 1 NC (0 NO) |
| Voltage Rating | 24–300 V AC/DC |
| EAN | 7320500553114 |
