Description

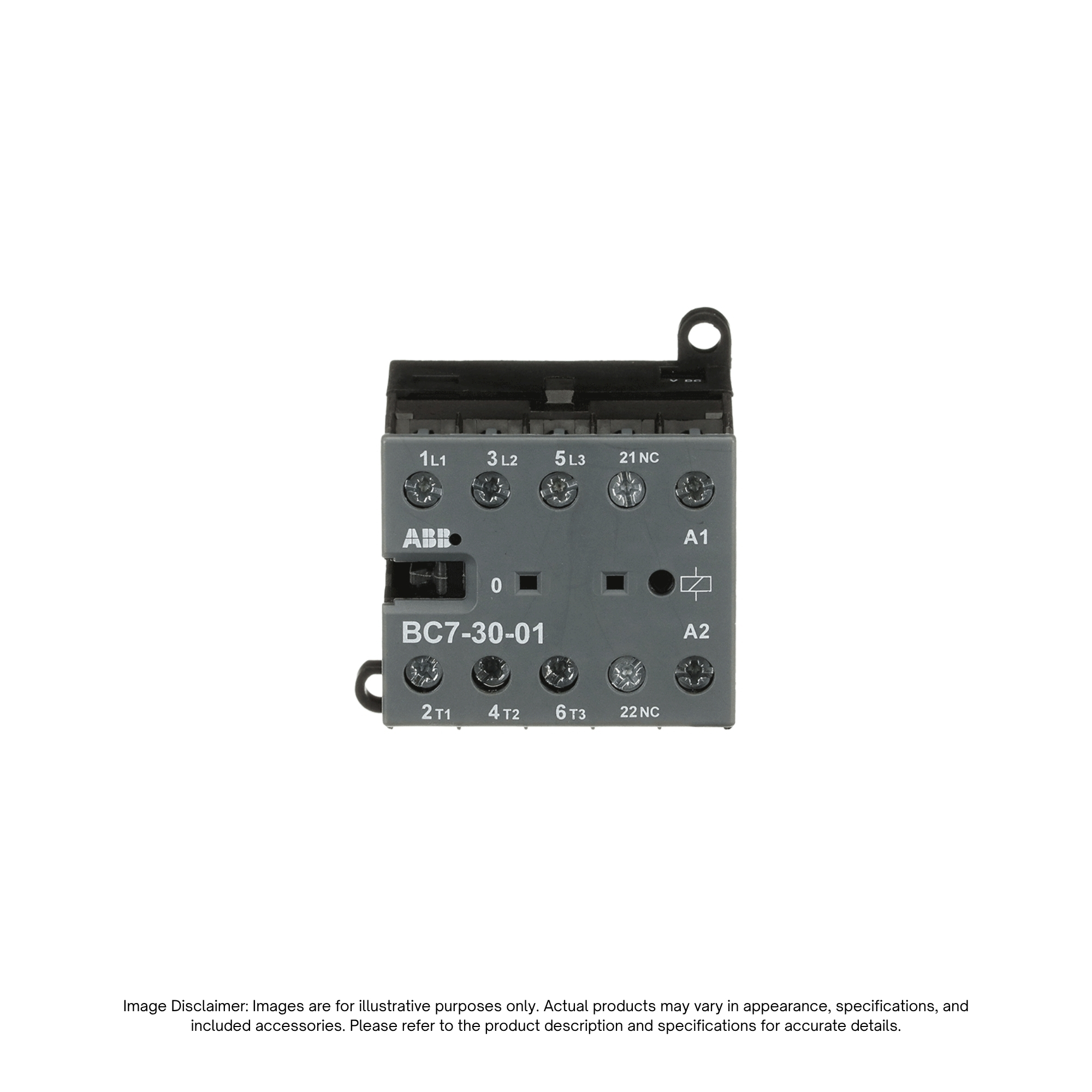

The ABB BC7-30-01-01 (Product ID: GJL1313001R0011, EAN: 4013614152603) is a compact 3-pole miniature contactor featuring 1 built-in auxiliary contact and secure screw terminals. Engineered specifically for applications where space is at a premium and high reliability is mandatory, the BC7 mini contactor is ideal for residential, commercial, and industrial installations controlling single-phase or three-phase loads up to 5.5 kW (AC-3) or 20 A (AC-1) general use.
Operated by a reliable 24 V DC noiseless and hum-free coil, this contactor includes a built-in switch position indicator and offers flexible installation options for standard DIN rail or direct wall mounting. Its robust miniature design makes it the perfect solution for control signal switching, HVAC equipment, and compact automation panels.
Key Features
- Compact Miniature Design: Optimizes cabinet space in residential, commercial, and industrial control panels without sacrificing performance.
- 3-Pole Power Switching: Engineered to control single-phase or 3-phase loads up to 5.5 kW / 400 V (AC-3) and 20 A AC-1.
- 24 V DC Hum-Free Coil: Features a silent, energy-efficient DC operating coil ideal for noise-sensitive environments.
- Built-In Auxiliary Contact: Includes 1 integrated auxiliary contact (0 NC / configurable) for status feedback and control interlocking.
- Screw Terminals: Equipping reliable, vibration-resistant screw connection terminals for secure conductor wiring.
- Flexible Mounting: Features integrated provisions for quick snap-on 35mm DIN rail or direct wall mounting.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Type / Model | BC7-30-01-01 (BC7 Series) |
| Brand / Manufacturer | ABB |
| Product ID | GJL1313001R0011 |
| EAN Code | 4013614152603 |
| Number of Main Poles | 3-Pole (3 NO, 0 NC main contacts) |
| AC-3 Motor Rating (400V) | 5.5 kW |
| AC-1 Thermal Current | 20 A |
| Control Supply Voltage | 24 V DC (Hum-free coil) |
| Auxiliary Contacts | 1 Built-in Auxiliary Contact |
| Terminal Type | Screw Terminals |
| Mounting Type | DIN Rail (35mm) or Wall Mounting |
| Primary Applications | HVAC control, residential/commercial building automation, compact machinery, and control signal switching |
