USCC1 – Mersen | UltraSafe™ USCC – Class CC Fuse Holders

Description

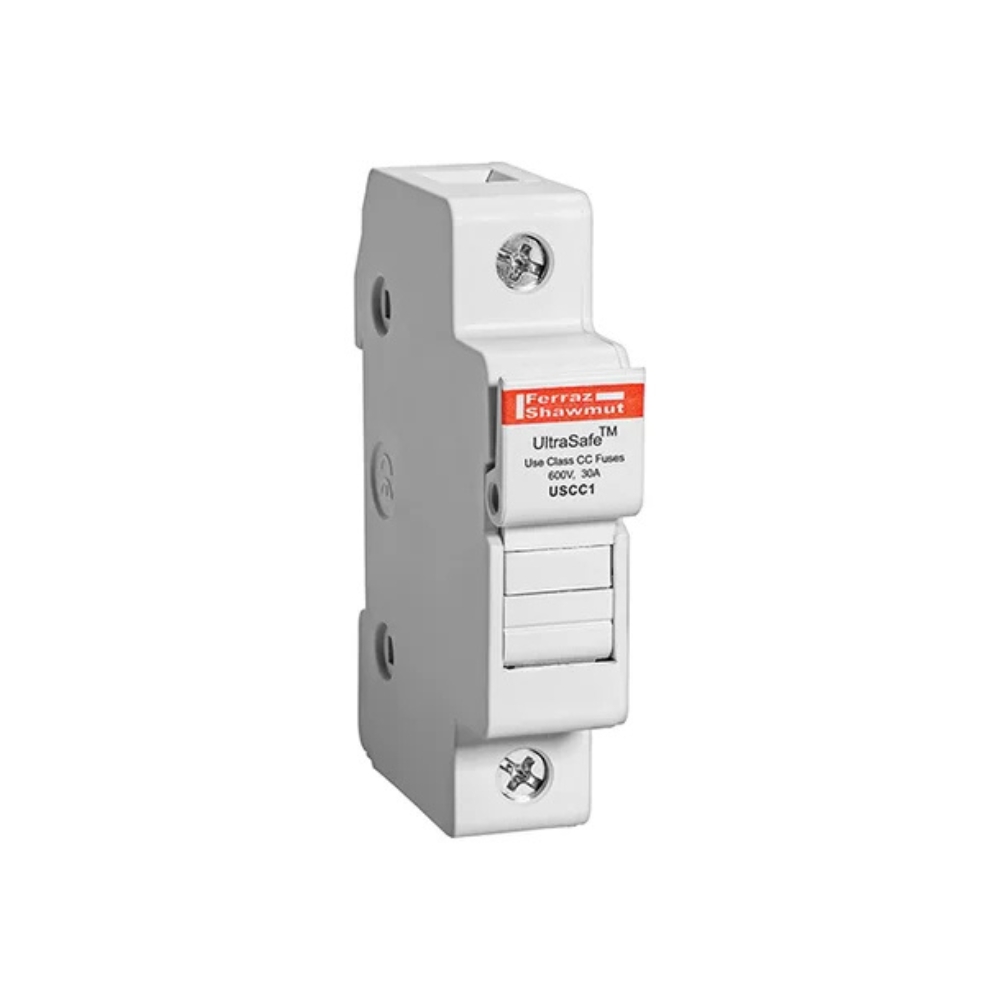

The Mersen UltraSafe™ USCC1 is a state-of-the-art 1-pole modular fuse holder designed to provide superior protection and safety for Class CC 1-1/2″ x 13/32″ fuses up to 30 amperes. As part of the UltraSafe series, it sets a new standard for safety by qualifying as “Finger-safe” under IEC and DIN standards, achieving an IP20 grade of protection even during fuse changing.

Constructed with tough, durable glass-filled polycarbonate for exceptional insulating properties, the USCC1 offers reliable performance at 600VAC and 600VDC. This compact holder saves up to 15% mounting space and easily snaps onto a 35mm DIN-rail, significantly reducing panel building time.³ When paired with Class CC fuses for Type “2” No Damage protection, the UltraSafe USCC1 provides one of the safest and most efficient protection packages in the industry.

Key Features

• UltraSafe™ IP20 Finger-Safe: Qualifies as “Finger-safe” with an IP20 degree of protection, ensuring safety during operation and fuse replacement.
• High Voltage Rating: Rated for use up to 600VAC and 600VDC.
• Space-Saving Design: Modular design saves up to 15% mounting space compared to traditional holders.
• Easy Installation: Features DIN Rail mounting for quick and tool-free installation, saving panel assembly time.
• Robust Construction: Made from durable Glass Filled Polycarbonate with excellent insulating properties.
• High Interrupting Rating: Features a Short Circuit Current Rating (SCCR) of 200kA.
• Single-Pole Design: 1-Pole holder with a pressure plate connection method for reliable wiring.

Specifications

Document Link

DS-USCC-Class-CC-Mersen-EN
