Description

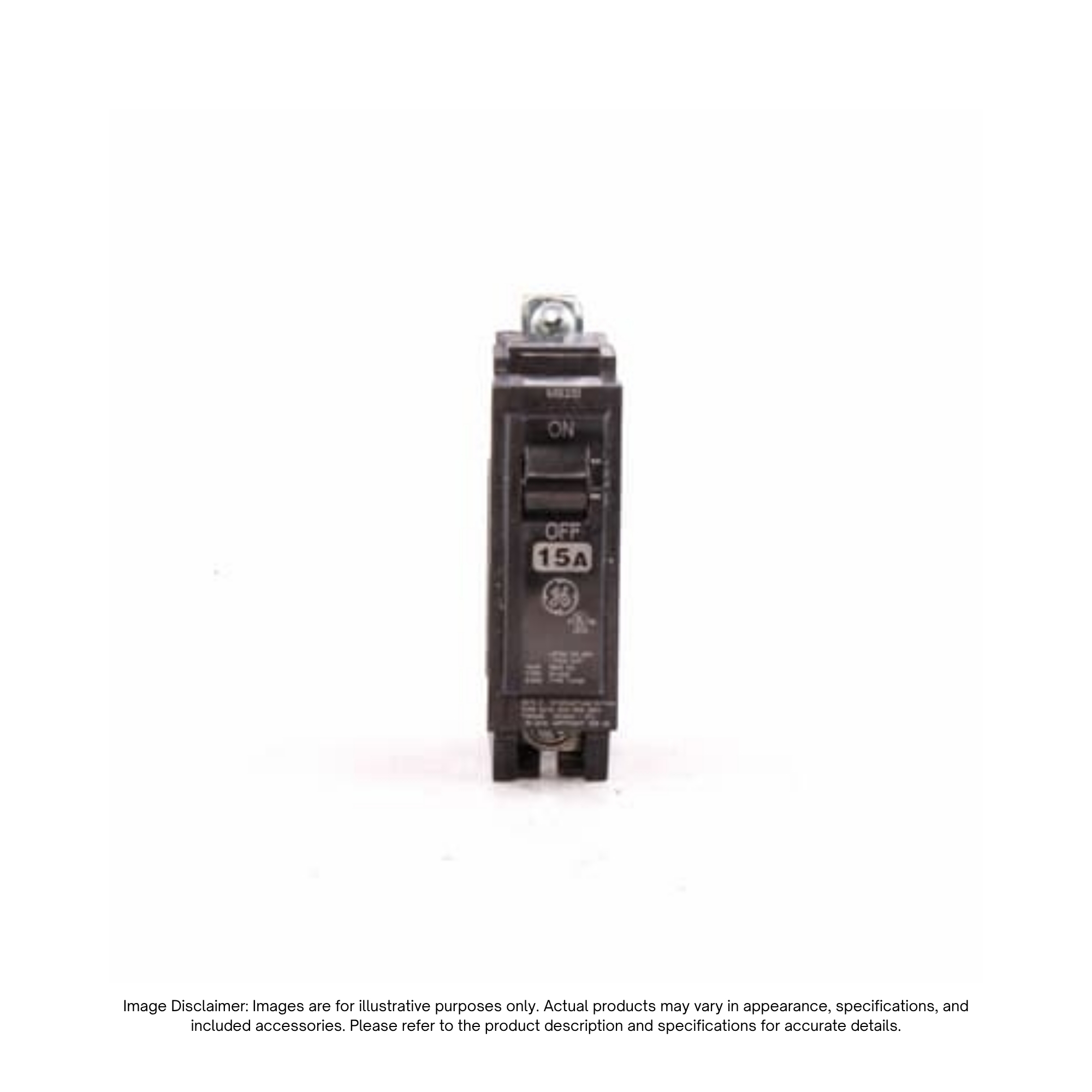

The ABB / GE THHQB1115 (Product ID: 1TQB111015X0100) is a compact, 1-pole thermal-magnetic miniature circuit breaker engineered for residential and commercial electrical distribution systems. Rated for 15 Amps at 120/240 VAC, this Q-Line breaker provides reliable overload and short-circuit protection with a high interrupting capacity (22 kAIC at 120V / 10 kAIC at 240V).
Featuring a standard one-inch wide per pole design, the THHQB1115 incorporates a quick-make / quick-break mechanism, a common trip bar, and an easy-to-spot trip indication for enhanced safety. Built to deliver dependable electrical isolation, it is ideal for standard panelboard and distribution applications.
Key Features
- Thermal-Magnetic Protection: Combines thermal overload sensing with magnetic short-circuit tripping for comprehensive circuit safety.
- 15A / 120/240V Rating: Designed for standard branch circuit protection across single-phase electrical systems.
- High Interrupting Capacity: Delivers 22 kAIC at 120V and 10 kAIC at 240V for robust fault clearing.
- Quick-Make / Quick-Break Mechanism: Minimizes contact arcing and wear to ensure extended operational lifespan.
- Clear Trip Indication: Provides immediate visual status identification in the event of a tripped circuit.
Specifications
| Technical Specification | Detail |
|---|---|
| Global Commercial Alias / Model | THHQB1115 |
| Brand / Manufacturer | ABB / GE |
| Product ID | 1TQB111015X0100 |
| EAN / UPC Code | 783164118230 |
| Product Type | Thermal-Magnetic Circuit Breaker (Q-Line) |
| Amperage Rating | 15 A |
| Voltage Rating | 120/240 VAC |
| Number of Poles | 1-Pole (1P) |
| Interrupting Rating | 22 kAIC at 120V / 10 kAIC at 240V |
| Primary Applications | Residential and commercial branch circuit protection, load center distribution |
