Description

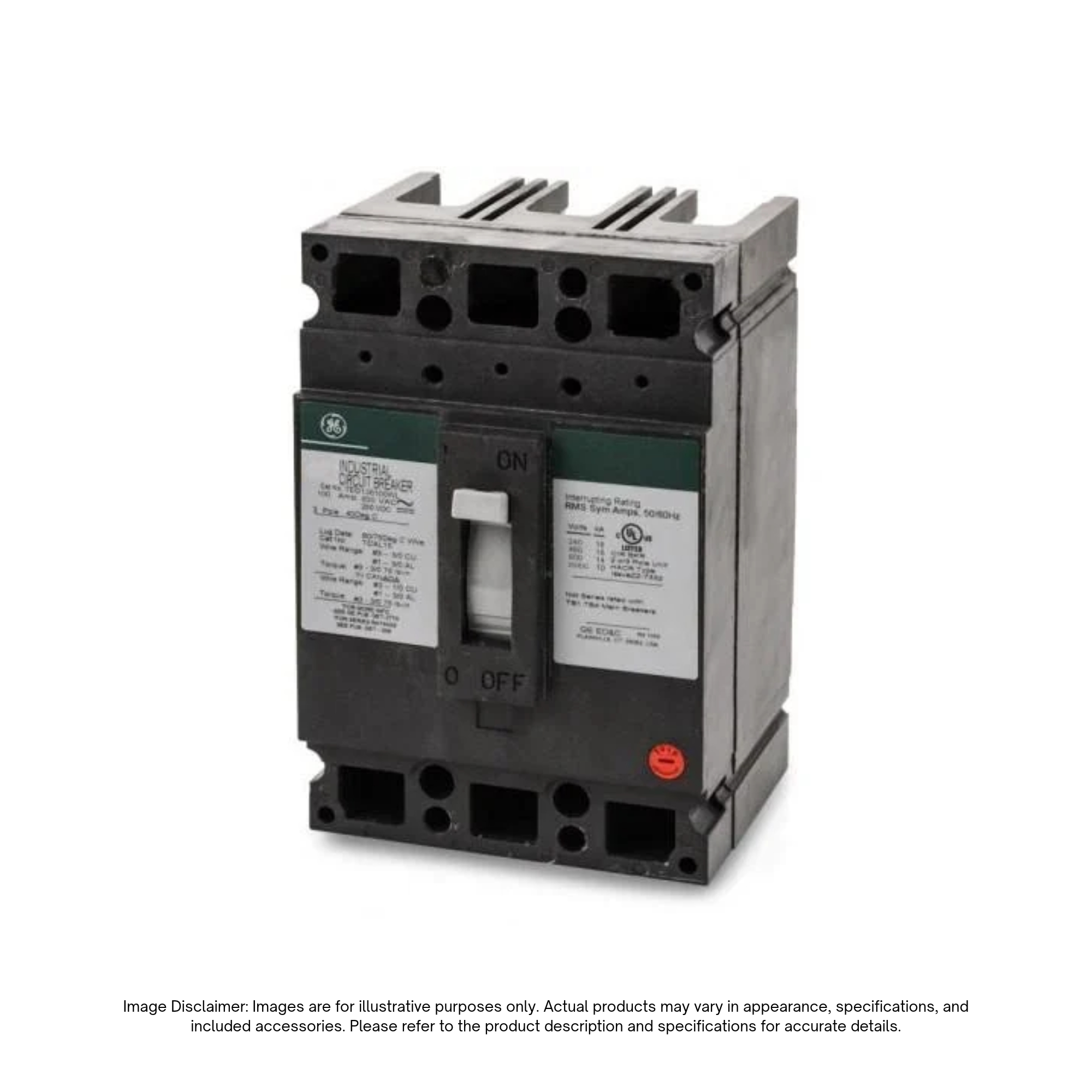

The GE TED136100 (Catalog Number: TED136100, UPC: 783164063547) is a 3-pole thermal-magnetic molded case circuit breaker rated for 100 A and up to 600 VAC. Part of the E150 product line, this breaker features fixed long-time and instantaneous (LI) trip functions, providing reliable overcurrent and short-circuit protection for commercial and industrial electrical distribution systems.
Engineered to deliver robust performance in a compact E150 frame, the TED136100 ensures dependable circuit isolation and equipment safety across demanding power distribution environments.
Key Features
- 3-Pole Configuration: Robust 3-phase switching and overcurrent protection for industrial power systems.
- 100 A Current Rating: Designed to handle continuous branch and feeder circuit loads reliably.
- Thermal-Magnetic Trip Mechanism (LI): Combines thermal overload protection with magnetic short-time response for comprehensive safety.
- 600 VAC Voltage Rating: Suitable for high-voltage commercial and industrial electrical panels.
- E150 Compact Frame: Space-saving molded-case design built to rigorous industry standards.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Type / Model | TED136100 (E150 Series) |
| Brand / Manufacturer | GE / ABB (E150 Line) |
| Catalog Number | TED136100 |
| UPC Code | 783164063547 |
| Device Type | Thermal-Magnetic Molded-Case Circuit Breaker |
| Amperage Rating | 100 A |
| Number of Poles | 3 Pole (3P) |
| Voltage Rating | 600 VAC |
| Frame Type | E150 |
| Trip Function | LI (Thermal-Magnetic / Fixed Long-Time & Instantaneous) |
| Primary Applications | Commercial switchboards, industrial power distribution, panelboards, and motor feeder protection |
