Description

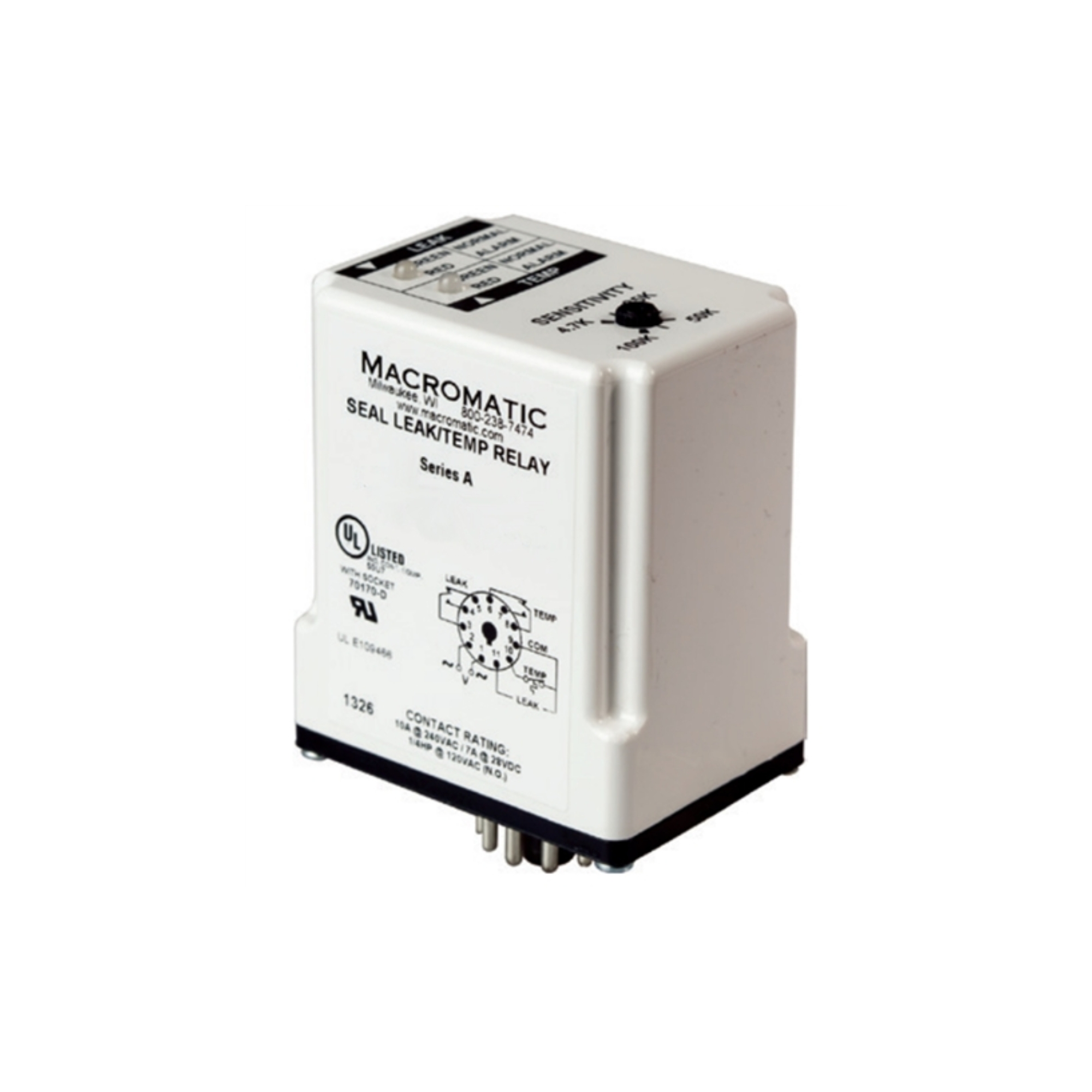

The Macromatic TCP2G100 is a plug-in seal leak and over-temperature relay engineered to protect submersible pump motors from thermal burnout and fluid contamination. Operating on a 120 VAC control supply, this dual-function monitoring relay combines over-temperature protection and resistance-sensing seal leakage detection into a single compact module that mounts into an industry-standard 11-pin octal socket.
During normal operation with no faults, the over-temperature relay remains energized through the motor’s normally closed (N.C.) thermal switch, and the seal leak relay remains de-energized. If motor temperatures exceed safe limits, the thermal switch opens, de-energizing the relay to open the pump contactor circuit and prevent motor failure; the unit automatically resets once the temperature cools. Concurrently, the seal leak circuit monitors internal pump cavity resistance using a 5V DC pulsed sensing voltage. If fluid breaches the seal and drops cavity resistance below the user-adjustable sensitivity set-point, the seal leak relay energizes to trigger an external alarm. Top-mounted dual-color LEDs (TEMP and LEAK) offer immediate visual status for input power, thermal conditions, and seal integrity.
Key Features
- Dual Submersible Pump Protection: Integrates motor over-temperature monitoring and resistance-based seal leak detection into a single relay.
- Automatic Temperature Reset: Automatically restores normal operation once the motor thermal switch cools and re-closes.
- Adjustable Leak Sensitivity: Features a low-profile adjustment knob to fine-tune resistance sensing thresholds for reliable leak detection without false alarms.
- Safe Pulsed Probe Voltage: Utilizes a 5V DC pulsed probe signal to prevent plating and corrosion on internal leakage sensors.
- Top-Mounted Status Diagnostics: Dual-color LED indicators (TEMP and LEAK) on the top panel provide clear visual status during operation and troubleshooting.
- Dual 7A SPDT Outputs: Provides two independent 7A SPDT relay outputs for pump contactor control and external alarm signaling.
- Standard 11-Pin Octal Base: Mounts into standard 11-pin octal sockets (Macromatic 70170-D or equivalent) for fast installation and simple field servicing.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | TCP2G100 |
| Brand | Macromatic |
| Product Type | Seal Leak & Over-Temperature Relay (Single Channel) |
| Control Voltage | 120 VAC (+10/-15% at 50/60 Hz) |
| Output Contacts | (2) SPDT (1 Over-Temperature, 1 Seal Leak) |
| Output Contact Rating | 7 A @ 240 VAC / 7 A @ 28 VDC, 1/4 HP @ 120 VAC (N.O.) |
| Leakage Probe Voltage | 5 VDC Pulsed |
| Leakage Sensitivity | Adjustable via low-profile knob (Two selectable ranges) |
| Over-Temperature Threshold | 5 kΩ (N.C. Thermal Switch) |
| Reset Method | Automatic reset upon fault clearance |
| Response Time | Pick-up: 1 second | Drop-out: 1 second |
| Power Burden | 3 VA |
| Mounting / Socket Type | Plug-in (11-pin octal socket, Macromatic 70170-D or equivalent) |
| Status Diagnostics | Top-mounted LEDs (TEMP: Green=Normal, Red=Fault | LEAK: Green=Normal, Red=Leak Detected) |
| Operating Temperature Range | -18°F to 149°F (-28°C to 65°C) |
| Storage Temperature Range | -40°F to 185°F (-40°C to 85°C) |
| Lifespan | Mechanical: 10,000,000 operations | Full Load: 100,000 operations |
| Primary Applications | Submersible sewage pumps, wastewater lift stations, industrial sump pumps, municipal pumping stations |
