SU202M-C10 – ABB | UL489 MCB 2P C 10A 480/277

$61.33 CAD

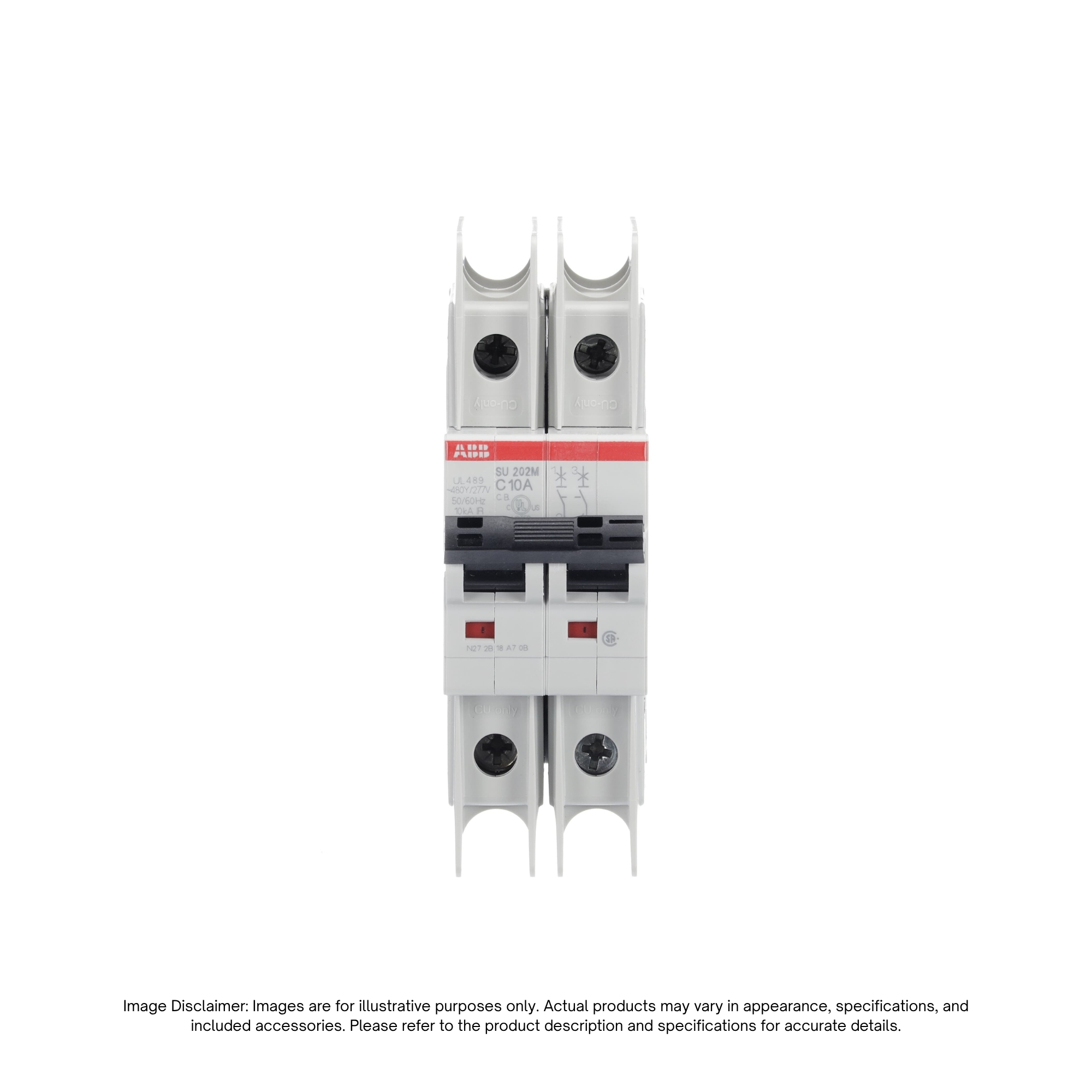

The ABB SU202M-C10 (2CDS272337R0104) is a 10 A, two-pole miniature circuit breaker with a C tripping characteristic. Provides overload and short-circuit protection, a 10 kA UL interrupting rating, and a 15 kA IEC breaking capacity at specified voltages.

2 in stock

SKU: SU202M-C10 Categories: ,

Description

The ABB SU202M-C10 Miniature Circuit Breaker (2CDS272337R0104) is a two-pole circuit breaker designed to provide overload and short-circuit protection for electrical circuits. Rated at 10 A with a C tripping characteristic, it is suitable for branch circuit protection in commercial, industrial, and electrical control panel applications.

Part of ABB’s SU200M series, the SU202M-C10 uses thermal-magnetic tripping to help protect electrical wiring and connected equipment against excessive current. Its C-curve characteristic accommodates moderate inrush currents within the manufacturer’s specified tripping limits, making it suitable for compatible electrical distribution and control applications.

Designed for DIN-rail mounting, this miniature circuit breaker features screw terminals and a compact 35 mm width for space-efficient installation. It provides a 10 kA interrupting rating under applicable UL 489 conditions and a 15 kA rated ultimate short-circuit breaking capacity at 400 V AC under IEC 60947-2 specifications.

Key Features

  • 10 A Current Rating: Provides overcurrent protection for compatible electrical branch circuits.
  • Two-Pole Configuration: Provides two-pole circuit protection for compatible electrical systems.
  • C Trip Characteristic: Accommodates moderate inrush currents within the manufacturer’s specified tripping characteristics.
  • Thermal-Magnetic Protection: Provides protection against sustained overloads and short-circuit currents.
  • 10 kA UL 489 Interrupting Rating: Rated at 10 kA at 480Y/277 V AC and 96 V DC under applicable UL conditions.
  • 15 kA IEC Breaking Capacity: Provides a rated ultimate short-circuit breaking capacity of 15 kA at 400 V AC under IEC 60947-2.
  • DIN-Rail Mounting: Fits compatible 35 mm mounting rails for convenient installation in electrical panels.
  • Screw-Terminal Connections: Supports secure conductor connections for compatible wire sizes.
  • Clear Position Indication: Features red ON and green OFF indications for easy identification of the breaker position.
  • Compact Design: Measures 35 mm wide for efficient use of space in electrical distribution assemblies.

Specifications

Technical Specification Detail
Product Model SU202M-C10
Product ID (SKU) 2CDS272337R0104
Brand / Manufacturer ABB
Product Series SU200M
Product Type Miniature Circuit Breaker (MCB)
Rated Current 10 A
Number of Poles 2
Tripping Characteristic C Curve
Rated Operational Voltage (IEC) 400 V AC under IEC 60947-2
Maximum Operating Voltage (UL/CSA) 480Y/277 V AC; 96 V DC
UL 489 Interrupting Rating 10 kA at 480Y/277 V AC and 96 V DC
IEC Ultimate Short-Circuit Breaking Capacity (Icu) 15 kA at 400 V AC
IEC Service Short-Circuit Breaking Capacity (Ics) 11.2 kA at 400 V AC
Rated Insulation Voltage 440 V
Rated Impulse Withstand Voltage 4 kV
Rated Frequency 50/60 Hz and DC applications
Protection Functions Overload and Short-Circuit Protection
Mounting Type DIN-Rail Mounting
Compatible DIN Rail 35 mm TH35-7.5 or TH35-15, according to IEC 60715
Terminal Type Screw Terminals
Conductor Connection Capacity Flexible conductors: 0.75–25 mm²; rigid or stranded conductors: 0.75–35 mm²
UL/CSA Conductor Range 18–4 AWG
Terminal Tightening Torque 2.8 N·m
Total Power Loss 4.2 W (2.1 W per pole)
Degree of Protection IP20; IP40 when installed in a suitable enclosure with cover
Overvoltage Category III
Pollution Degree 3
Mechanical Endurance 20,000 operating cycles
Operating Temperature -25°C to +55°C
Storage Temperature -40°C to +70°C
Product Width 35 mm
Product Height 111 mm
Product Depth 69 mm
Product Weight 0.25 kg
Applicable Standards UL 489, CSA C22.2 No. 5, IEC/EN 60947-2
EAN 4016779931076
Weight 0.538 lbs
Dimensions 2.717 × 1.378 × 3.465 in
