SU201M-C10 – ABB | UL489 MCB 1P C 10A 480/277

$30.68 CAD

The ABB SU201M-C10 (2CDS271337R0104) is a 10 A, single-pole miniature circuit breaker with a C tripping characteristic. Provides overload and short-circuit protection, with a 10 kA UL interrupting rating and 15 kA IEC breaking capacity at specified voltages.

4 in stock

SKU: SU201M-C10 Categories: ,

Description

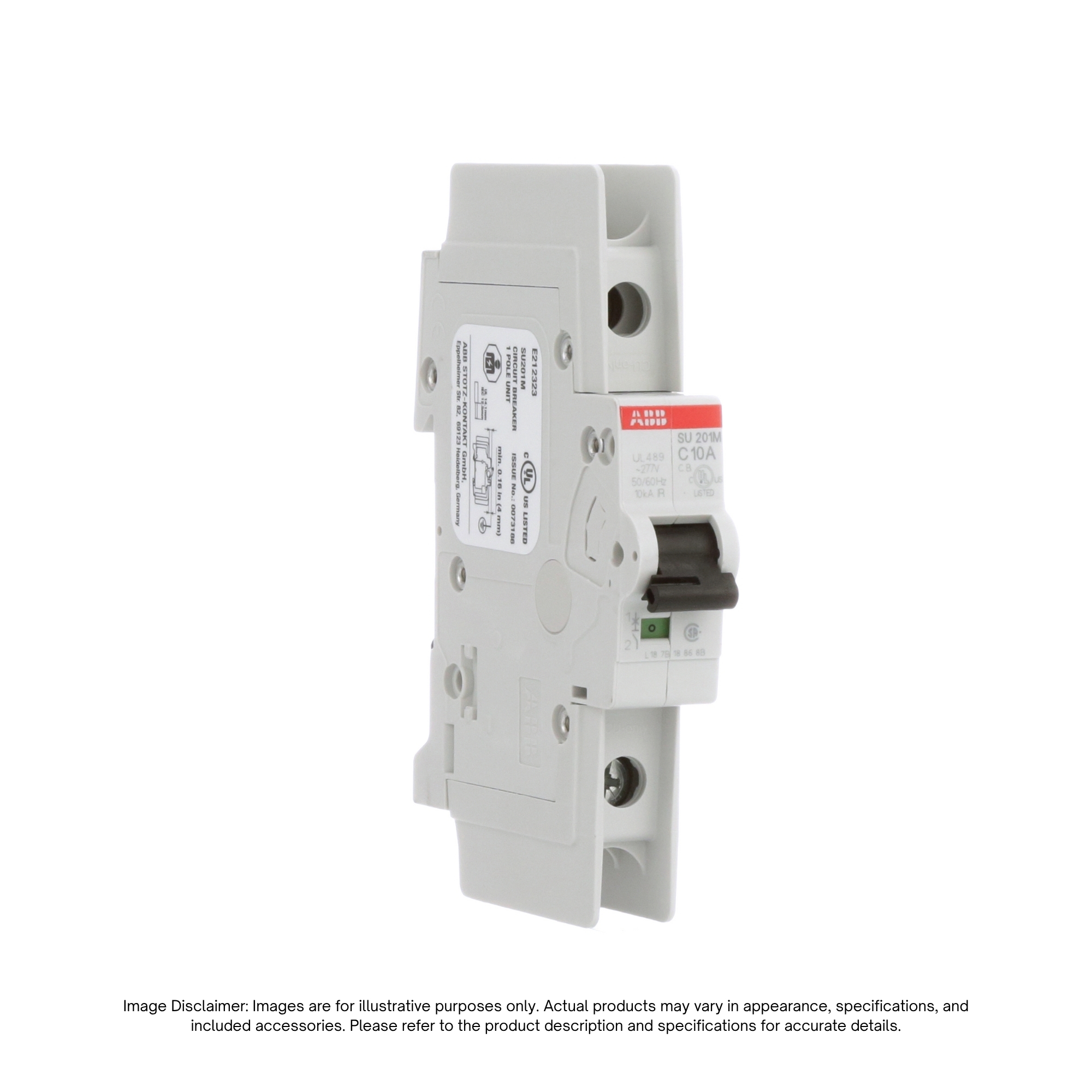

The ABB SU201M-C10 Miniature Circuit Breaker (2CDS271337R0104) is a single-pole circuit breaker designed to provide overload and short-circuit protection in electrical distribution systems. Rated at 10 A with a C tripping characteristic, it is suitable for compatible branch circuit applications in commercial, industrial, and control panel installations.

Part of ABB’s SU200M series, the SU201M-C10 is designed for plug-in installation in compatible ABB SMISSLINE TP distribution systems. It features thermal-magnetic tripping to help protect electrical circuits against excessive current and short circuits. Its compact design, screw terminals, and clear ON/OFF position indication support straightforward installation and maintenance.

With a UL 489 interrupting rating of 10 kA at 277 V AC and an IEC-rated short-circuit breaking capacity of 15 kA at 230 V AC, this miniature circuit breaker supports applications requiring reliable overcurrent protection within the specified system ratings.

Key Features

  • 10 A Current Rating: Provides overcurrent protection for compatible electrical branch circuits.
  • Single-Pole Configuration: Protects one circuit pole in compatible electrical distribution applications.
  • C Trip Characteristic: Designed for applications with moderate inrush currents, subject to the manufacturer’s trip curve specifications.
  • Thermal-Magnetic Protection: Provides protection against overloads and short-circuit currents.
  • 10 kA UL 489 Interrupting Rating: Rated at 10 kA at 277 V AC under the specified UL 489 conditions.
  • 15 kA IEC Breaking Capacity: Provides a rated short-circuit breaking capacity of 15 kA at 230 V AC under the specified IEC conditions.
  • SMISSLINE TP Compatibility: Designed for use in compatible ABB SMISSLINE TP distribution systems.
  • Screw-Terminal Connections: Supports secure conductor connections for electrical installation.
  • Clear Position Indication: Provides visual identification of the ON and OFF positions.
  • Compact Design: Measures 17.5 mm wide for space-efficient installation in compatible distribution assemblies.

Specifications

Technical Specification Detail
Product Model SU201M-C10
Product ID (SKU) 2CDS271337R0104
Brand / Manufacturer ABB
Product Series SU200M
Product Type Miniature Circuit Breaker (MCB)
Rated Current 10 A
Number of Poles 1
Tripping Characteristic C Curve
UL Interrupting Rating 10 kA at 277 V AC; 10 kA at 48 V DC
IEC Rated Short-Circuit Breaking Capacity 15 kA at 230 V AC
Rated Voltage 277 V AC / 48 V DC under specified UL ratings
Rated Insulation Voltage 440 V
Rated Impulse Withstand Voltage 4 kV
Protection Functions Overload and Short-Circuit Protection
Mounting Type Plug-In for Compatible SMISSLINE TP Systems
Terminal Type Screw Terminals
Power Loss per Pole 2.1 W
Protection Rating IP20; IP40 when installed in a suitable enclosure with cover
Product Width 17.5 mm
Product Height 111 mm
Product Depth 69 mm
Product Weight 0.125 kg
Applicable Standards UL 489, CSA C22.2 No. 5, IEC/EN 60947-2
EAN 4016779930840
Weight 0.500 lbs
Dimensions 2.717 × 0.689 × 3.465 in
Part Number
