Description

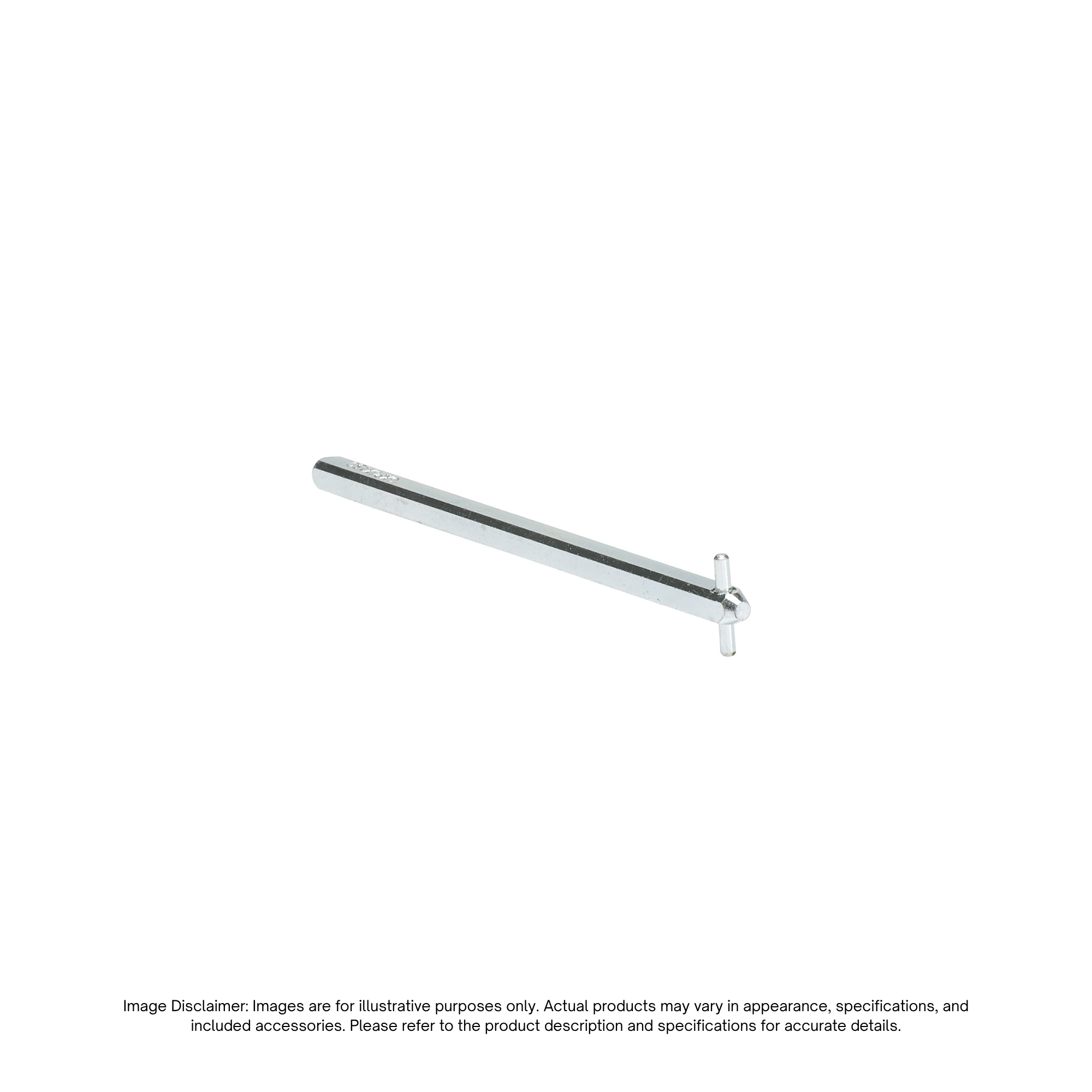

The ABB OXP6X360 Operating Shaft (1SCA022042R6530) is a 360 mm shaft designed for use with compatible ABB pistol-type operating handles and switch-disconnectors. With a 6 mm shaft diameter, it connects the external operating handle to the switch mechanism, enabling manual operation of electrical switches installed inside enclosures and control panels.
Designed for compatible ABB OT, OS, and OTDC Series switch-disconnectors, the OXP6X360 accommodates installations requiring an extended distance between the operating handle and the switching mechanism. Its extended length makes it suitable for industrial control panels, electrical distribution assemblies, and switchgear installations requiring external manual operation.
Key Features
- 360 mm Shaft Length: Provides extended reach for installations requiring additional distance between the operating handle and switch mechanism.
- 6 mm Shaft Diameter: Designed for compatible ABB pistol-type operating handles and switch mechanisms.
- External Switch Operation: Connects an external operating handle to the switch-disconnector mechanism for manual switching.
- Broad ABB Compatibility: Suitable for specified OT, OS, and OTDC Series switch-disconnectors, including compatible OT200U models.
- Industrial Applications: Supports external manual operation in electrical enclosures, industrial control panels, and power distribution equipment.
- Accessory Integration: Designed for use with compatible ABB pistol-type operating handles.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | OXP6X360 |
| Product ID (SKU) | 1SCA022042R6530 |
| Brand / Manufacturer | ABB |
| Product Type | Operating Shaft |
| Accessory Category | Shafts for Pistol-Type Operating Handles |
| Shaft Length | 360 mm (14.2 in) |
| Shaft Diameter | 6 mm |
| Compatible Handle Type | ABB Pistol-Type Operating Handles for 6 mm Shafts |
| Compatible Equipment | Specified ABB OT16–OT250, OT200U, OS16–OS250, and compatible OTDC Series Switch-Disconnectors |
| Product Width | 6 mm |
| Product Height | 6 mm |
| Product Depth / Length | 360 mm |
| Net Weight | 0.10 kg |
| Quantity per Package | 1 Piece |
| EAN | 6417019141466 |
