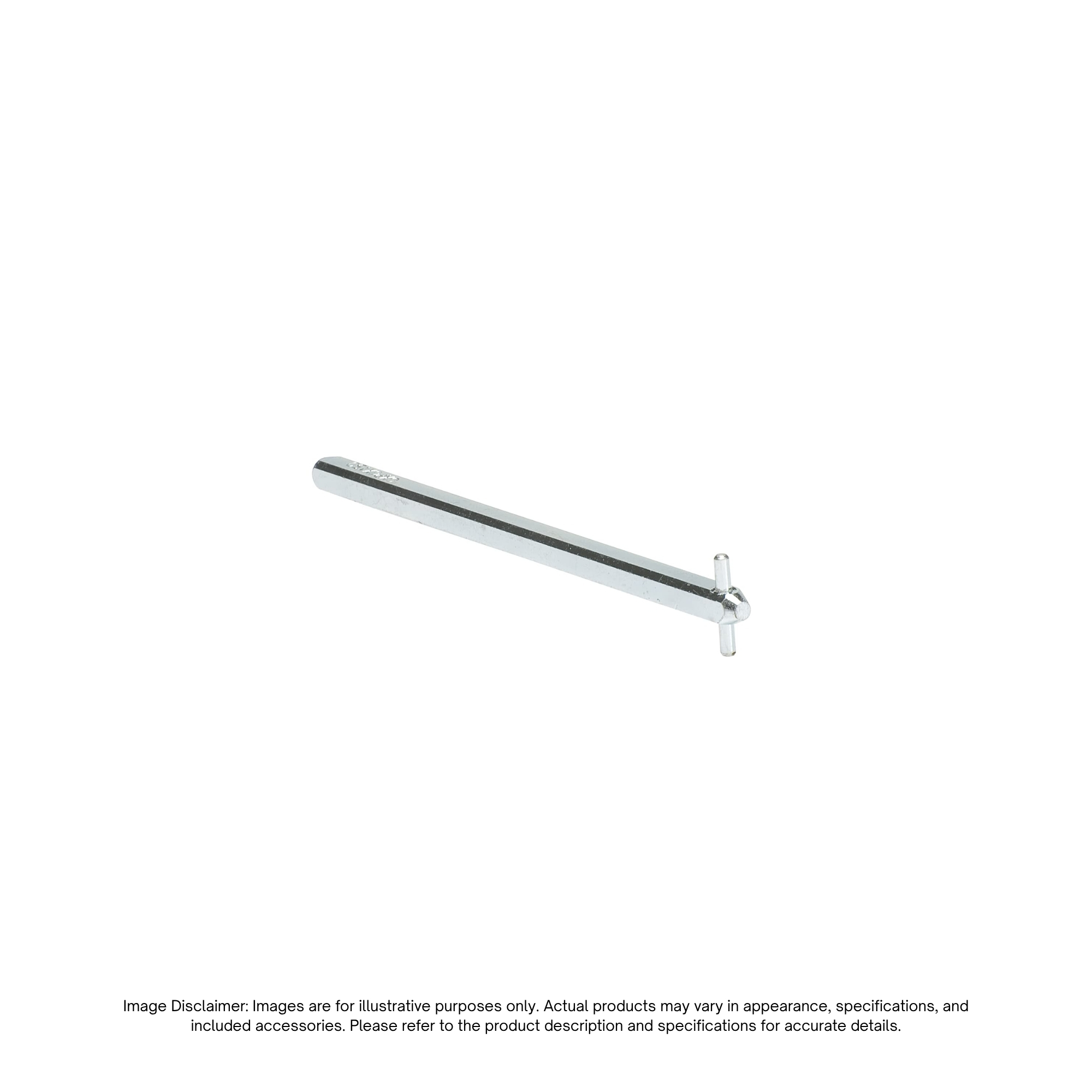

OXP6X290 – ABB | PISTOL SHAFT 11.4IN 6X290

Description

The ABB OXP6X290 Operating Shaft (1SCA022042R6370) is a 290 mm shaft designed for use with compatible ABB pistol-type operating handles and switch-disconnectors. Featuring a 6 mm shaft diameter, it connects the operating handle to the switch mechanism, allowing manual operation of switches installed inside electrical enclosures and control panels.

Designed for compatible ABB OT, OS, and OTDC Series switch-disconnectors, the OXP6X290 accommodates installations requiring an extended shaft length between the operating handle and the switching mechanism. Its design supports external switch operation in industrial power distribution equipment, control panels, and electrical enclosures.

Key Features

• 290 mm Shaft Length: Provides extended reach for installations requiring additional distance between the operating handle and switch mechanism.
• 6 mm Shaft Diameter: Designed for compatible ABB pistol-type operating handles and switch mechanisms.
• External Switch Operation: Connects the external operating handle to the switch-disconnector mechanism for manual switching.
• ABB OT and OS Series Compatibility: Suitable for specified ABB OT16 to OT250, OS16 to OS250, and compatible OTDC Series switch-disconnectors.
• Industrial Applications: Supports external manual operation in electrical enclosures, power distribution equipment, and industrial control panels.
• Lightweight Design: Weighs approximately 0.08 kg for convenient integration into compatible switch assemblies.

Specifications
