Description

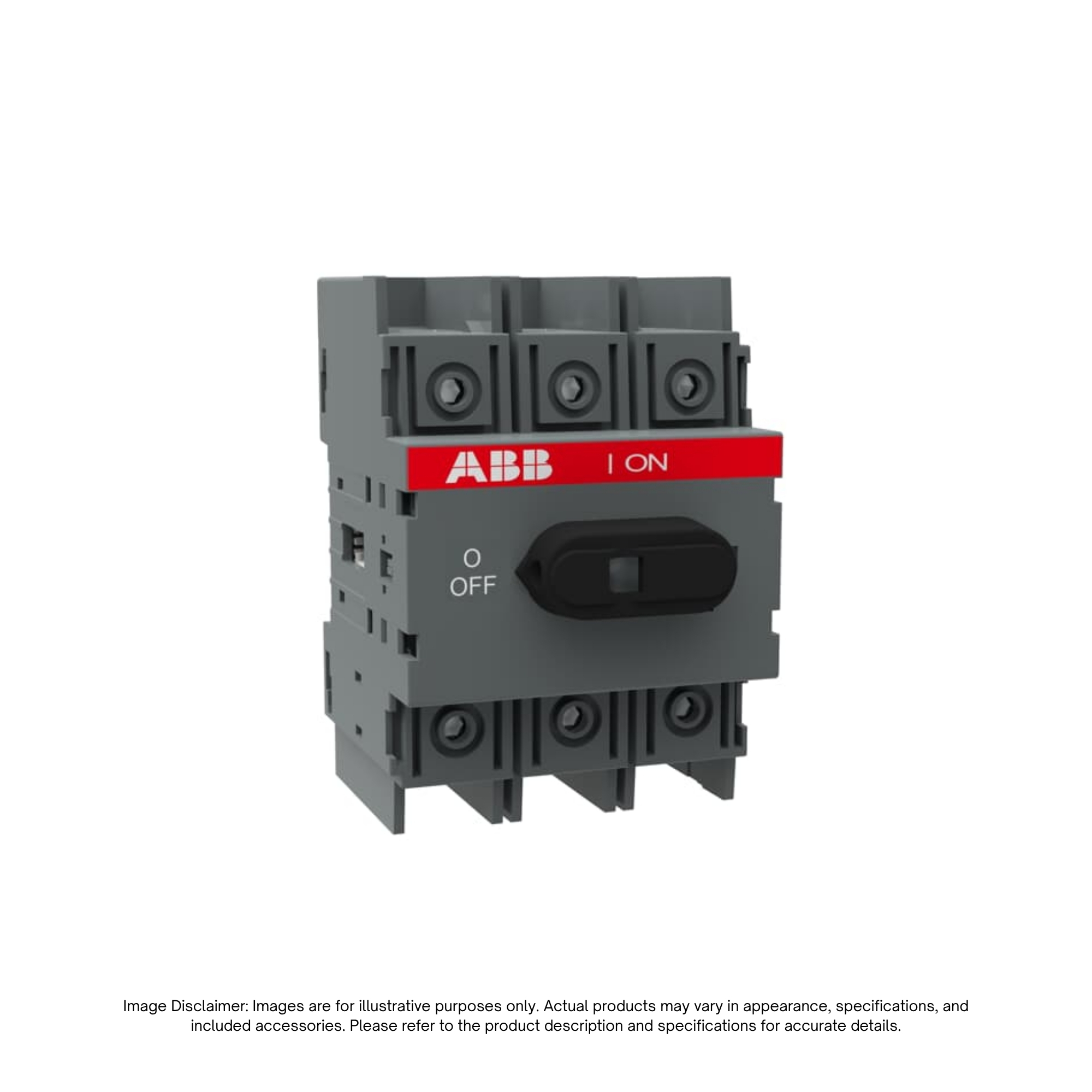

The ABB OT60F3P Front Operated Non-Fusible Disconnect Switch is a three-pole disconnect switch designed for industrial power distribution, motor control, and electrical isolation applications. Rated at 60 A and 600 V AC, it supports motor applications up to 40 hp at applicable voltages and provides a reliable means of manually disconnecting electrical circuits.
Part of ABB’s OT Series, the OT60F3P features a modular design with surface mounting and screw-terminal connections for integration into industrial control panels and electrical distribution assemblies. Its finger-proof, dead-front construction and protected terminal shrouds help reduce the risk of accidental contact with live electrical components. The quick-make, quick-break operating mechanism supports dependable switching, while clear position indication makes it easy to identify the switch status.
The OT60F3P kit includes a pistol operating handle and shaft for front-operated switching. The handle can be padlocked in the OFF position with up to three padlocks, while the operating mechanism provides door interlocking to help prevent the enclosure from opening when the switch is ON. Incoming power can be connected from either the top or bottom, providing flexibility during installation.
Key Features
- 60 A Current Rating: Designed for industrial electrical distribution, motor control, and isolation applications.
- 600 V AC Rated Voltage: Suitable for electrical systems operating within the manufacturer’s specified ratings.
- Three-Pole Configuration: Provides switching and isolation for compatible three-phase electrical circuits.
- 40 hp Motor Rating: Supports motor applications up to 40 hp at applicable voltages.
- Non-Fusible Design: Provides circuit disconnection without integrated fuse holders.
- Finger-Proof Construction: Dead-front construction and terminal shrouds help reduce the risk of accidental contact with live parts.
- Pistol Handle and Shaft Included: Supplied as an operating kit for convenient front-operated switching.
- Quick-Make, Quick-Break Mechanism: Supports rapid switching action for dependable operation.
- Padlockable OFF Position: Accommodates up to three padlocks to support lockout procedures during maintenance.
- Door Interlock: Helps prevent the enclosure door from opening while the switch is in the ON position.
- Flexible Power Feed: Supports incoming power connections from either the top or bottom.
- Modular Construction: Supports integration into compatible industrial electrical assemblies.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | OT60F3P |
| Manufacturer Part Number | OT60F3P |
| Brand / Manufacturer | ABB |
| Product Series | OT Series |
| Product Type | Front-Operated Non-Fusible Disconnect Switch |
| Rated Current | 60 A |
| Rated Voltage | 600 V AC |
| Horsepower Rating | 40 hp |
| Number of Poles | 3 |
| Short-Circuit Current Rating | 200 kA as listed by the distributor; verify applicable protective-device and coordination requirements |
| Mounting Type | Surface Mount |
| Terminal Type | Screw Terminals |
| Enclosure Temperature Rating | 40°C |
| Operating Method | Front Operated |
| Operating Mechanism | Quick-Make, Quick-Break |
| Front Protection Rating | IP20 |
| Included Operating Handle | Pistol Handle |
| Included Operating Shaft | Operating Shaft, 170 mm nominal length |
| Padlocking Capability | Up to 3 padlocks in the OFF position |
| Door Interlock | Helps prevent door opening while the switch is ON |
| Power Feed Direction | Top or Bottom |
| Dimensions (H × W × D) | 100 × 70 × 70 mm, as listed by the distributor |
| Applicable Standards | UL 98, CSA C22.2 No. 4, IEC 60947-3 |
