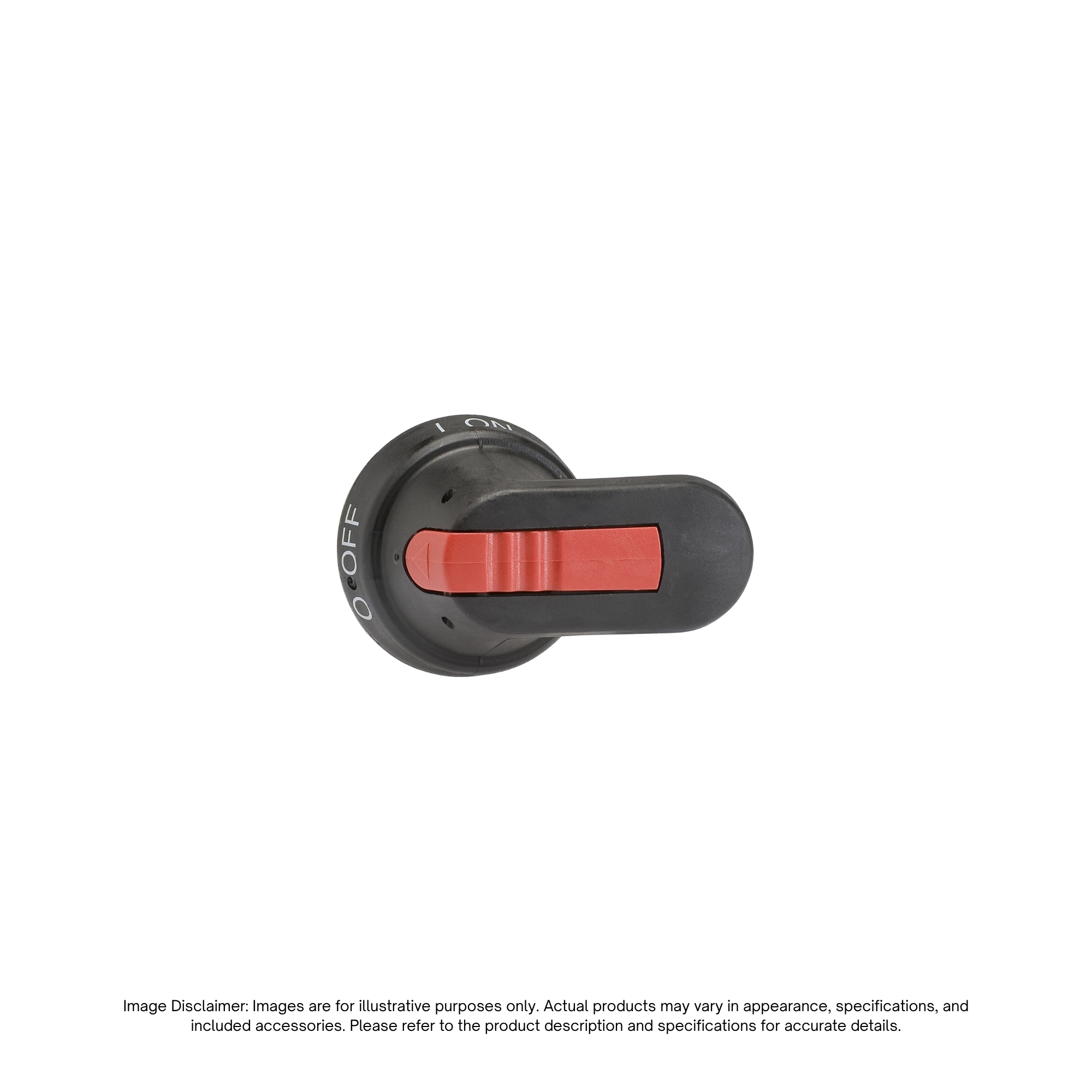

OHB65J6 – ABB | PISTOL HANDLE 6X65MM BLACK

Description

The ABB OHB65J6 Pistol Handle (1SCA022380R9660) is a black rotary operating handle designed for compatible ABB switch-disconnectors. With a compact 65 mm handle length and compatibility with 6 mm operating shafts, it provides convenient manual operation for industrial electrical distribution systems and control panel installations.

Featuring an IP65 protection rating and NEMA Type 1, 3R, and 12 ratings, the OHB65J6 is suitable for a range of industrial environments. The handle can be padlocked in the OFF position using up to three padlocks and includes a door interlock that helps prevent the enclosure door from opening while the switch is in the ON position. Rear screw fixing and a screw-free front design provide double insulation for added installation safety.

Key Features

• Compact 65 mm Handle: Provides convenient manual rotary operation for compatible ABB switch-disconnectors.
• 6 mm Shaft Compatibility: Designed for use with compatible ABB switches requiring a 6 mm operating shaft.
• IP65 Protection: Provides protection against dust ingress and water jets under specified test conditions.
• NEMA 1, 3R, and 12 Ratings: Suitable for installations requiring these enclosure protection ratings.
• Three-Padlock Capability: Supports padlocking in the OFF position to help facilitate lockout procedures during maintenance.
• Door Interlock: Helps prevent the enclosure door from opening while the handle is in the ON position.
• Rear Screw Fixing: Uses screws installed from the back of the handle, with no exposed screws on the front to maintain double insulation.
• Black Finish: Provides a clean, professional appearance for industrial electrical assemblies.

Specifications
