OHB175J12 – ABB | HANDLE IP65 175MM BLK

Description

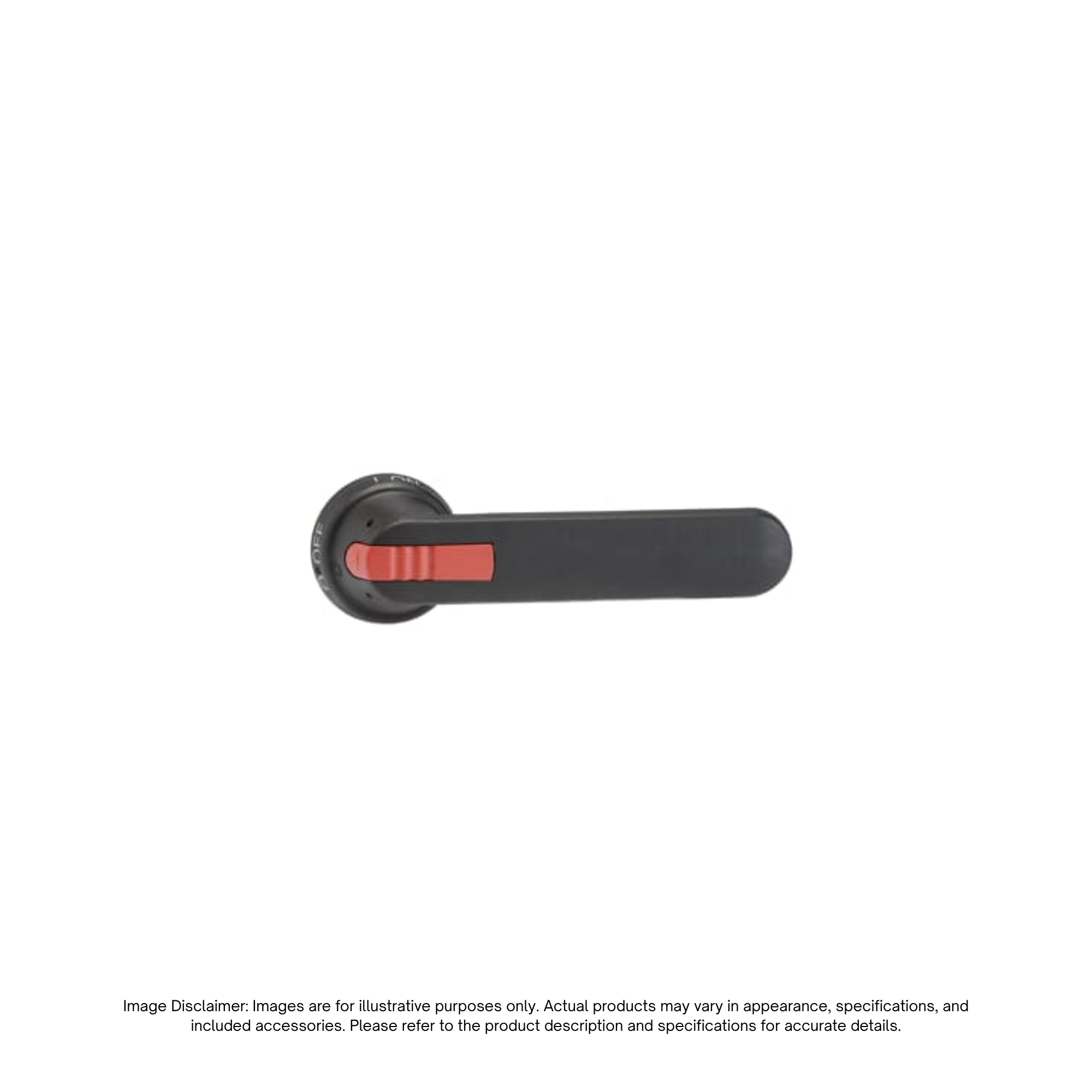

The ABB OHB175J12 Pistol Handle (1SCA022381R2450) is a black rotary operating handle designed for compatible ABB OT series switch-disconnectors. With a 175 mm handle length and a 12 mm shaft diameter, it provides manual operation for industrial electrical switching and power distribution applications.

Designed for compatible OT1000 series 6-pole safety switches, the OHB175J12 features an IP65 protection rating for demanding industrial environments. The handle includes I-O and ON-OFF position markings for clear switch status identification and supports padlocking in the OFF position with up to three padlocks. Its door interlock helps prevent access to the switch enclosure while the handle is in the ON position.

Key Features

• 175 mm Handle Length: Provides convenient manual rotary operation for compatible ABB switch-disconnectors.
• 12 mm Shaft Compatibility: Designed for use with compatible ABB OT1000 series 6-pole safety switches.
• IP65 Protection: Provides protection against dust ingress and water jets under specified test conditions.
• Padlockable OFF Position: Accommodates up to three padlocks in the OFF position to support lockout procedures.
• Door Interlock: Helps prevent the enclosure door from opening while the switch is in the ON position. The interlock can be overridden where permitted for authorized inspection.
• Clear Position Markings: Features I-O and ON-OFF indications for easy identification of the switch position.
• Black Finish: Provides a practical, professional finish for industrial electrical installations.
