OHB145J12 – ABB | PSTL HDL 12X145MM BLACK 3R,12

Description

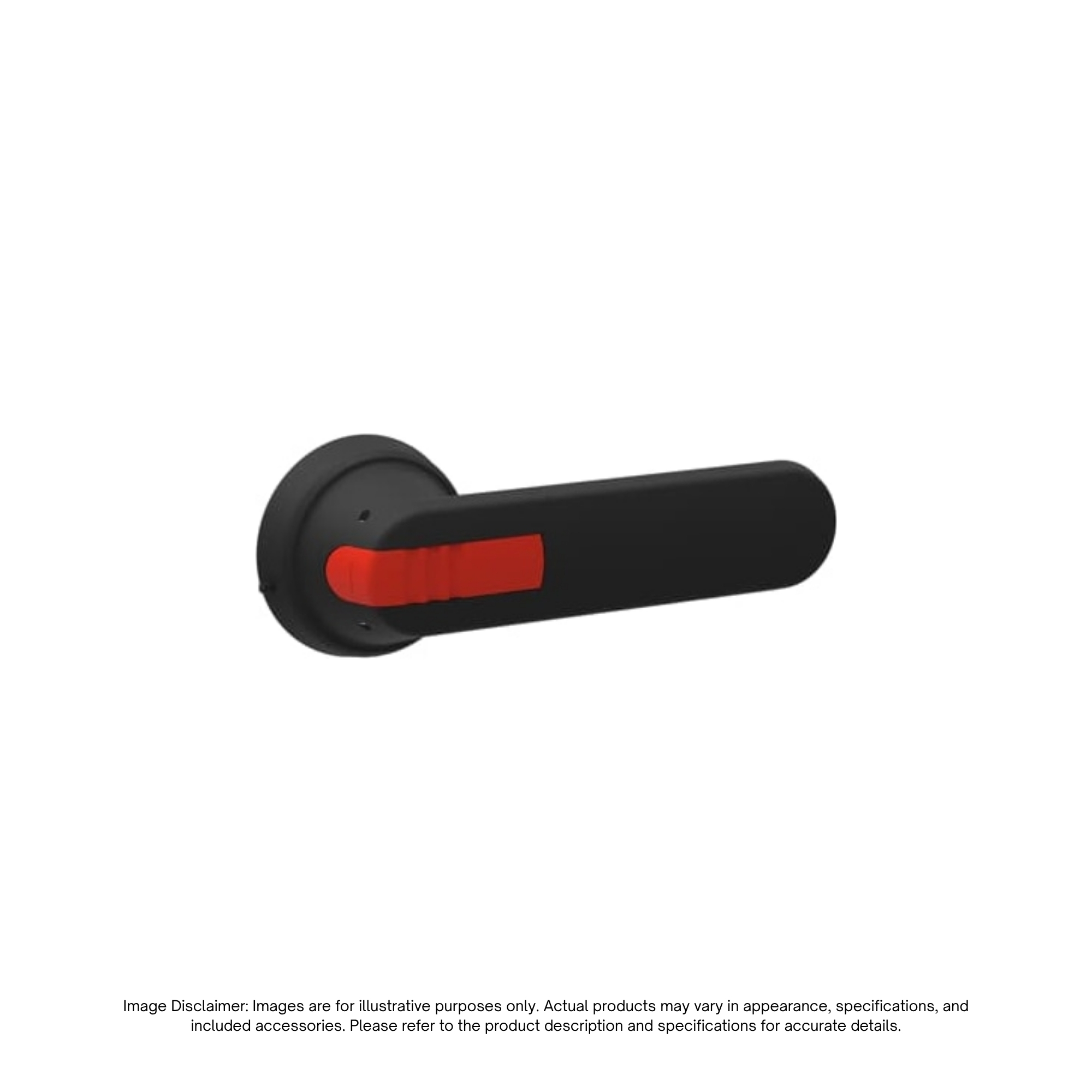

The ABB OHB145J12 Pistol Handle (OHB145J12) is a black rotary operating handle designed for compatible ABB switch-disconnectors. Measuring 145 mm in length, this handle provides convenient manual operation of electrical disconnect switches in industrial control panels and power distribution applications.

Designed for use with compatible 12 mm OXP12X operating shafts, the OHB145J12 features ON/OFF and I/O position markings for clear switch status identification. Its IP65 protection rating and NEMA Type 1, 3R, and 12 enclosure compatibility make it suitable for a variety of industrial environments. The handle is also padlockable in the OFF position, supporting lockout procedures during maintenance.

Key Features

• 145 mm Handle Length: Provides manual rotary operation for compatible ABB switch-disconnectors.
• 12 mm Shaft Compatibility: Designed for use with compatible OXP12X operating shafts.
• IP65 Protection: Provides protection against dust ingress and water jets under specified test conditions.
• NEMA 1, 3R, and 12 Ratings: Suitable for compatible installations requiring these enclosure protection ratings.
• Padlockable OFF Position: Supports locking the handle in the OFF position for maintenance and safety procedures.
• Clear Position Markings: Features ON/OFF and I/O markings for easy identification of the switch position.
• Black Finish: Offers a professional appearance for industrial electrical assemblies.

Specifications
