Description

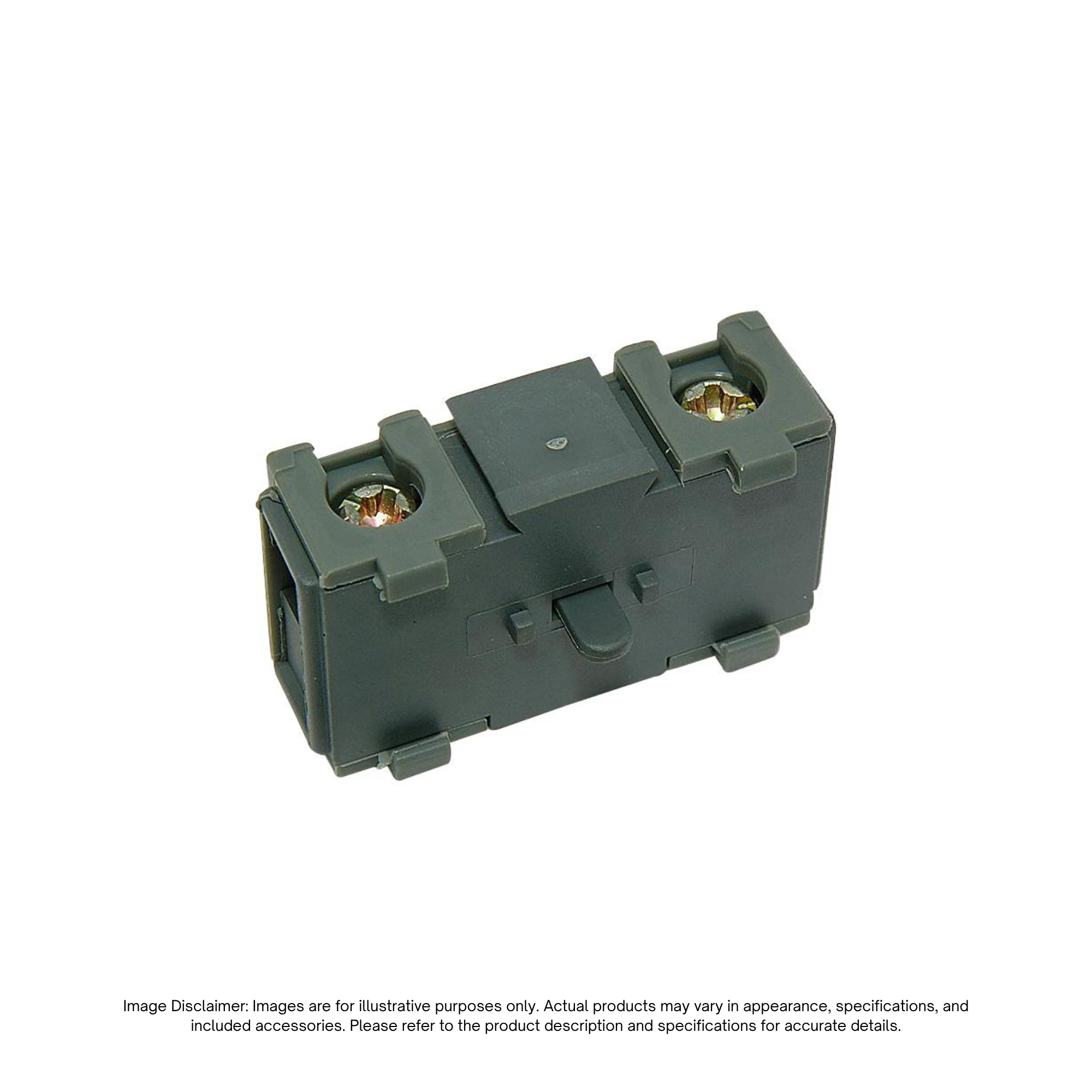

The ABB OA1G01 Auxiliary Contact (1SCA022353R4890) is a side-mounted auxiliary contact designed for use with compatible ABB OT series switch-disconnectors. Featuring 1 normally closed (NC) contact, it enables auxiliary status signaling and control circuit integration in industrial electrical installations.
With snap-on mounting for straightforward installation, the OA1G01 operates alongside the main switch contacts. Its IP20 protection rating and conventional free-air thermal current rating of 16 A make it a practical accessory for electrical distribution systems, control panels, and switch-disconnector applications.
Key Features
- 1 NC Contact: Provides one normally closed auxiliary contact for signaling and control circuit applications.
- Side-Mounted Installation: Features snap-on mounting for convenient installation on compatible ABB OT series switch-disconnectors.
- 16 A Thermal Current Rating: Supports a conventional free-air thermal current (Ith) of 16 A.
- IP20 Protection: Provides protection against access to hazardous parts and solid objects under applicable IP20 conditions.
- Compact Design: Measures 40 mm wide, 30 mm high, and 11 mm deep for space-conscious installations.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | OA1G01 |
| Product ID (SKU) | 1SCA022353R4890 |
| Brand / Manufacturer | ABB |
| Product Range | SwitchLine / OA Series |
| Product Type | Auxiliary Contact Block |
| Contact Configuration | 1 NC (Normally Closed) |
| Conventional Free-Air Thermal Current (Ith) | 16 A |
| Mounting Type | Side Mounting, Snap-On |
| Protection Rating | IP20 |
| Compatible Product Family | Compatible ABB OT Series Switch-Disconnectors |
| Product Width | 40 mm |
| Product Height | 30 mm |
| Product Depth | 11 mm |
| Net Weight | 0.03 kg |
| EAN | 6417019102436 |
