EF19-18.9 – ABB | “ELEC O/L 5.7-18.9A, CLASS 10E, 20E”

Description

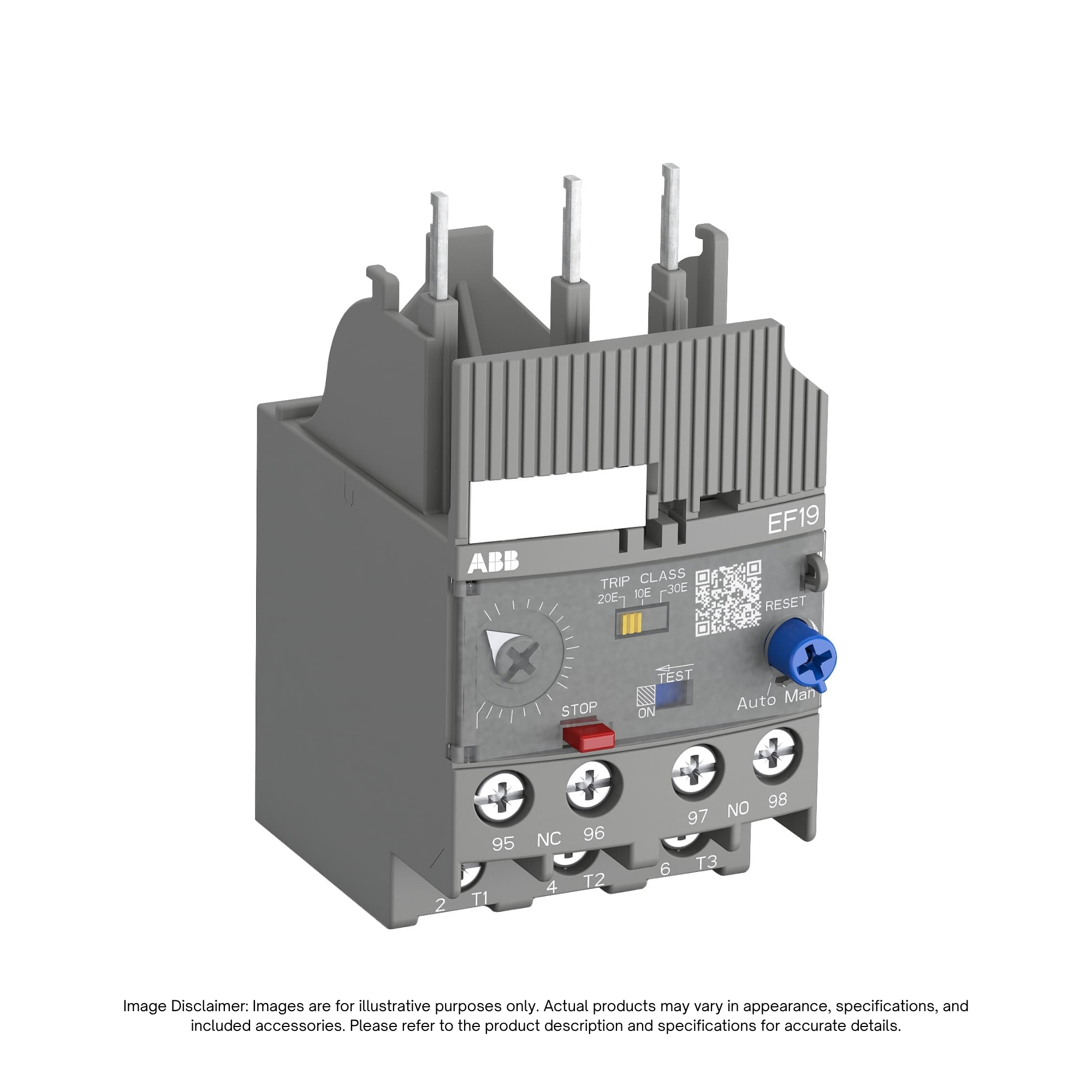

The ABB EF19-18.9 Electronic Overload Relay (1SAX121001R1105) is a self-supplied, high-precision electronic overload protection device engineered for reliable motor protection. Designed to cover a wide current setting range from 5.7 to 18.9 A, this relay protects AC motors against overloads, phase failures, and phase unbalance without requiring an external auxiliary power supply.

Featuring selectable trip classes (10E, 20E, 30E) and integrated temperature compensation, the EF19-18.9 provides higher accuracy and faster response times compared to standard thermal overload relays. It connects directly beneath compatible ABB contactors (or standalone via single mounting kits) and features isolated 1 NO + 1 NC contacts, selectable manual/automatic reset, a trip-free mechanism, STOP/Test functions, and ATEX/IECEx certification for hazardous environments.

Key Features

• Self-Supplied Electronic Protection: Operates directly off main circuit power with no external power supply required.
• Wide Current Setting Range (5.7–18.9 A): Offers high accuracy adjustable current protection across a wide amperage range.
• Selectable Trip Classes (10E, 20E, 30E): Allows customizable tripping speeds tailored to standard, heavy-duty, or long-acceleration motor starts.
• Phase Failure & Overload Protection: Rapidly detects phase loss and overload conditions to prevent motor winding damage.
• Flexible Reset & Test Functions: Includes selectable automatic or manual reset, STOP/Test buttons, trip indication, and 1 NO + 1 NC auxiliary contacts.
• ATEX & IECEx Certified: Approved for safe operation in explosive atmosphere and hazardous environment applications.

Specifications
