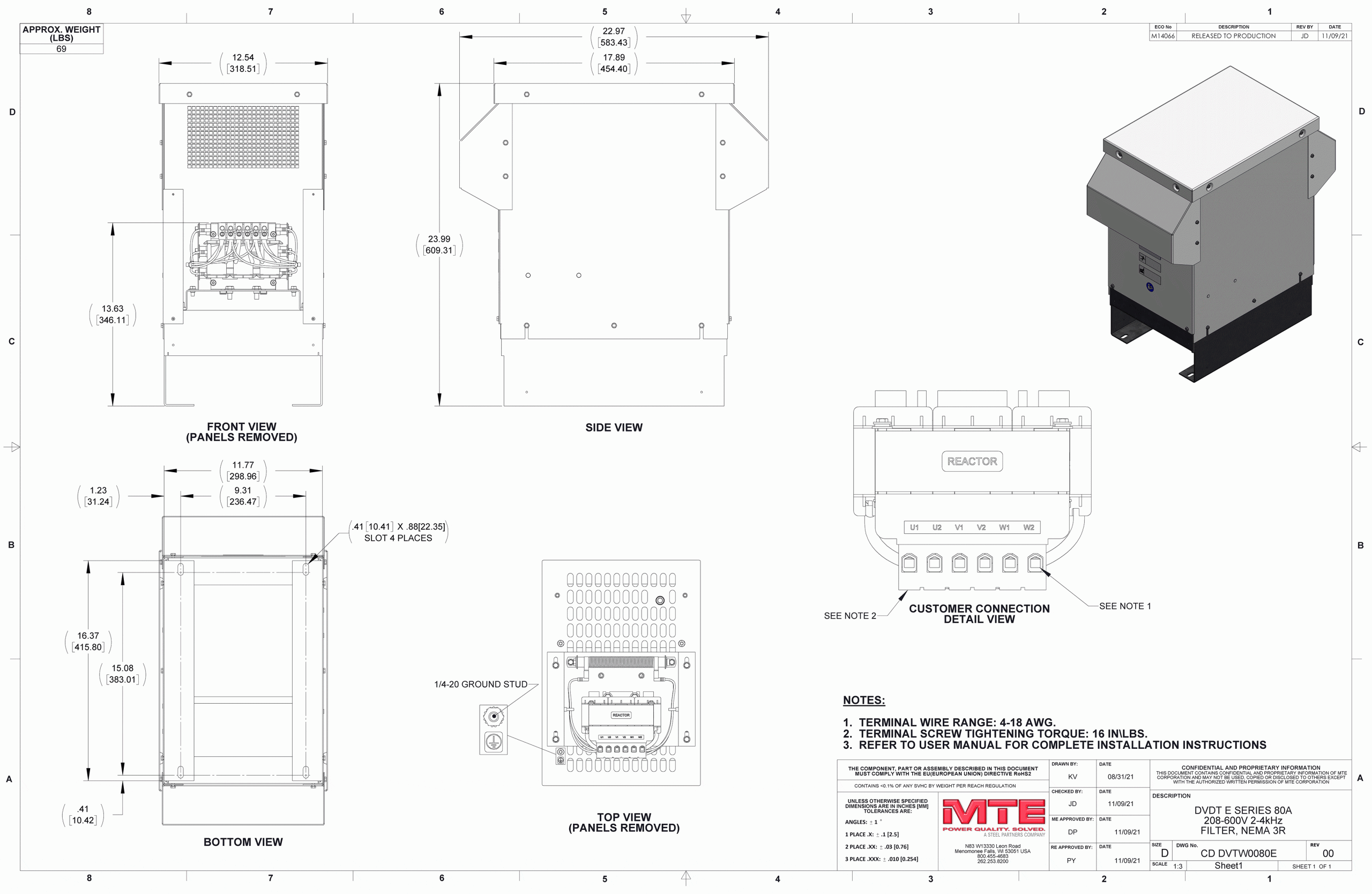

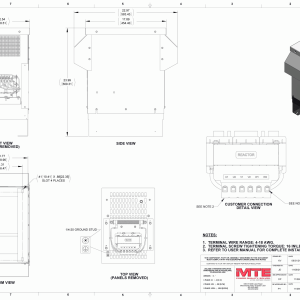

DVTW0080E – MTE | dV E-Series, 208-600V, 80A, 2-4kHz, NEMA 3R

Description

Experience complete protection and convenience with the MTE dV E-Series dV/dt motor protection filters. Designed to prevent damage to motor windings and premature motor insulation failure, these filters help avoid downtime costs and safety concerns. The dV E-Series ensures smooth operation, extends cable life, and is backed by MTE’s industry-leading Performance Guarantee.

Key Features

• Triple Protection: Provides reflective wave mitigation, rise time reduction, and peak voltage protection.
• Efficiency: Up to 60% more efficient, saving money and running cooler.
• Compact Design: Up to 73% lighter and 35% smaller footprint for convenient setup and handling.
• Ease of Installation: Footprint and mounting are compatible with competitive options.
• Silent Operation: Operates as quietly as a conversation.

Performance Guarantee

MTE Corporation guarantees that the peak voltage at the input of the motor terminals will be limited to 150% under the following conditions:

• The appropriate size dV E-Series filter is selected and installed in a variable torque AC variable frequency drive application.
• Published system limits are adhered to.
• Wire lead length does not exceed 1,000 feet.
• Carrier frequency is 4 kHz.

Specifications

• Service Load Condition: Inverter Duty Three Phase Motors
• Voltage: 208 – 600 VAC +/- 10%, 60Hz
• Input Voltage Wave Form: PWM
• Inverter Switching Frequency: 2kHz – 4kHz (3A – 750A)
• Inverter Operating Frequency: 0-60Hz without derating
• Maximum Ambient Temperature:
  • -40C to +60C (modular filter)
  • -40C to +50C (enclosed filter)
  • -40C to +90C (storage)
• Insulation System: Class N (200° C)
• Insertion Loss (Voltage): 1.7% at 60 Hz
• Efficiency: >99%
• Current Range: 3A – 750A
• Available Form Factors: Kit, Open Panel, NEMA 1/2, NEMA 3R
• Altitude without derating: 6,600 feet above sea level
• Maximum Motor Lead Length: 1,000 feet (VFD rated cable recommended)
• Relative Humidity: 0% to 99% non-condensing
• Current Rating:
  • 100% RMS Continuous
  • 150% for 1 minute
  • 200% for 10 seconds
• Audible Noise: <65db at 1 meter
• Rise Time: Greater than 0.1 µs
• Peak Voltage @ Motor: 150% of DC bus voltage up to 1,000 feet

Additional Information

• Manufacturer Part Number: DVTW0080E
• Item Number: DVTW0080E
• Product Series: dv E
• Family Series: MTE Line Reactors, dv E Series
• Enclosed Unit: Yes
• Current Rating: 80 A
• HP @ 240 VAC: 30 hp
• HP @ 480 VAC: 60 hp
• HP @ 575 VAC: 75 hp
• HP @ 600 VAC: 75 hp
• Terminals: Wire Leads
• Mounting: Surface
• NEMA Rating: NEMA 3R
• Approvals: CE, cULus

DVTW0080E
