CE4T-10R-01 – ABB | “40MM TW-REL RED, 1 NC”

$43.35 CAD

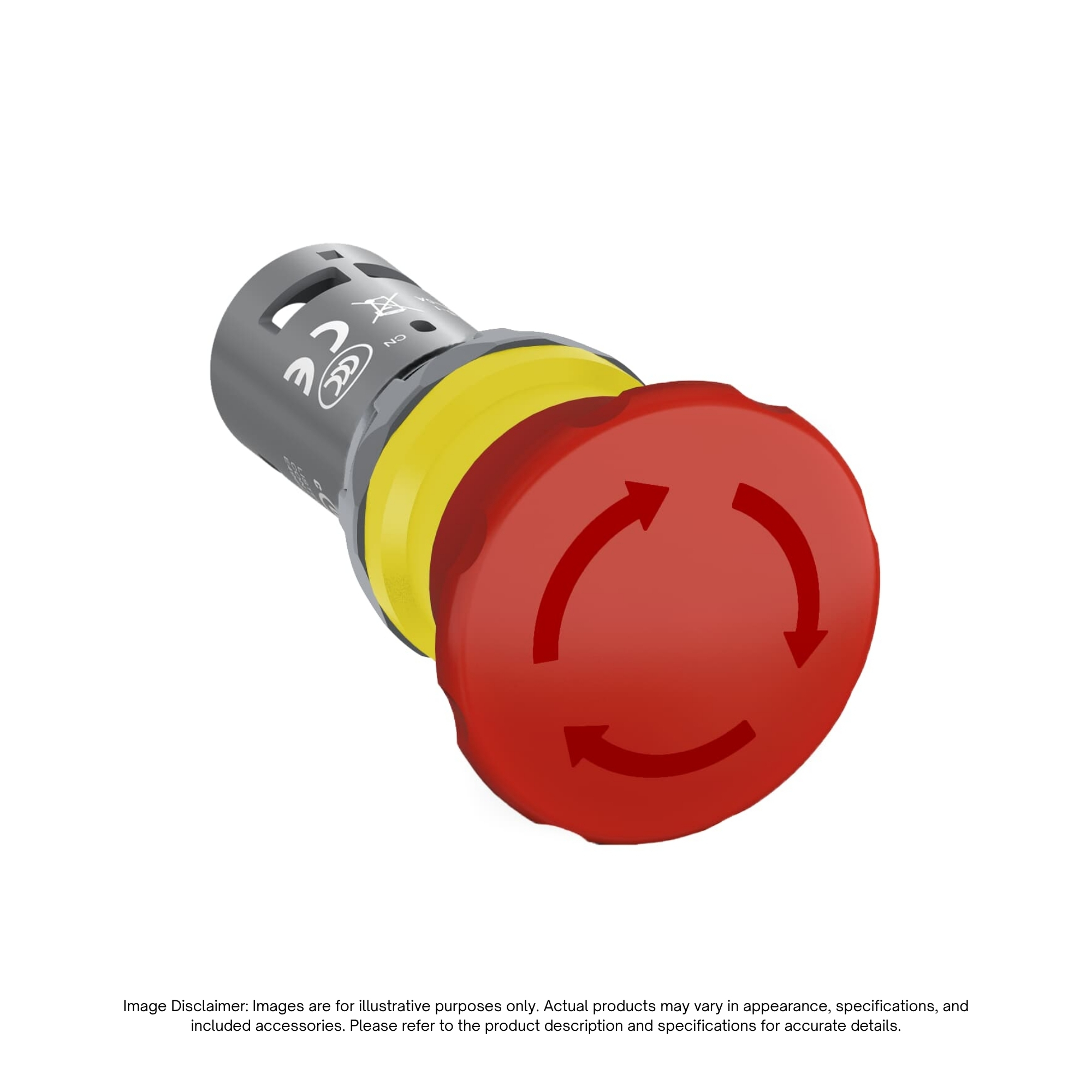

The ABB CE4T-10R-01 (1SFA619550R1041) is a 40mm red mushroom twist-release emergency stop switch featuring an all-in-one compact design with 1 NC contact block. Built for quick assembly with high dust and water resistance.

2 in stock

SKU: CE4T-10R-01 Categories: ,

Description

The ABB CE4T-10R-01 Emergency Stop Switch (1SFA619550R1041) is an all-in-one, non-illuminated 40mm mushroom emergency stop operator engineered for efficient and robust panel safety control. As part of ABB’s Compact range, this switch combines the operator, contact block, and mounting mechanism into a single integrated unit, significantly reducing installation time, enclosure depth requirements, and assembly costs.

Featuring a 40mm red mushroom head with twist-release (maintained) action and an integrated 1 NC (normally closed) contact block, the CE4T-10R-01 supports rated operational voltages up to 300 V. Built with high dust and water resistance, it provides long-lasting, heavy-duty performance for critical machine shut-off and industrial control panel safety circuits.

Key Features

  • Compact All-in-One Design: Integrates operator, 40mm mushroom head, and 1 NC contact block into a single component for rapid, cost-effective mounting.
  • Twist-Release Maintained Action: Locks securely into place when actuated and requires a simple twist to reset, ensuring reliable circuit safety management.
  • 40mm Red Mushroom Head: Standard red actuator provides immediate, high-visibility recognition for emergency control.
  • High Ingress Protection: Engineered with exceptional dust and water resistance for harsh environment operations.
  • Integrated 1 NC Contact: Pre-wired with 1 normally closed contact rated for 24–300 V AC/DC control circuits.

Specifications

Technical Specification Detail
Product Model CE4T-10R-01
Product ID (SKU) 1SFA619550R1041
Brand / Manufacturer ABB
Product Range Compact Range
Product Type Emergency Stop Switch
Actuator Type 40mm Mushroom (Red)
Function / Release Type Twist Release (Maintained)
Illumination Non-Illuminated
Contact Configuration 1 NC (0 NO)
Voltage Rating 24–300 V AC/DC
EAN 7320500260715
Weight 0.071 lbs
Dimensions 3.000 × 2.000 × 2.000 in
