Description

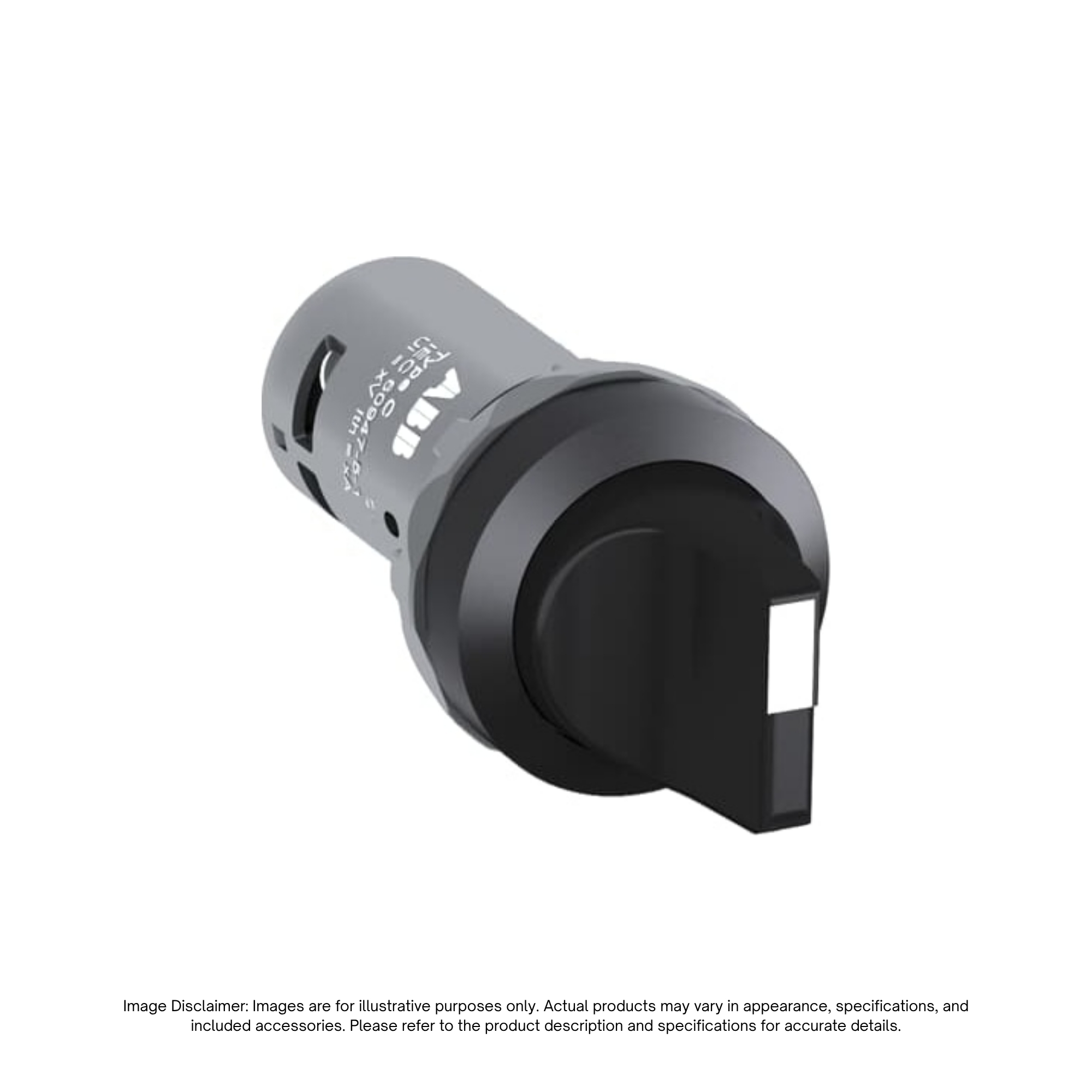

The ABB C2SS1-10B-10 Selector Switch (1SFA619200R1016) is an all-in-one, non-illuminated 2-position selector switch designed for efficient panel control. As part of ABB’s Compact range, this switch combines the operator, bezel, contact block, and mounting mechanism into a single unit, significantly reducing installation time, panel depth requirements, and assembly costs.
Featuring a black short handle with maintained (2-position) operation, black plastic bezel, and an integrated 1 NO (normally open) contact, the C2SS1-10B-10 supports rated operational voltages up to 300 V. Built with high dust and water resistance, it provides reliable switching performance in demanding industrial control environments and operator interfaces.
Key Features
- Compact All-in-One Design: Integrates the operator, bezel, and 1 NO contact block into a single piece for fast, cost-effective panel mounting.
- 2-Position Maintained Action: Stays securely in position after selection for steady circuit state control.
- Ergonomic Short Handle: Features a durable black plastic short handle designed for crisp, reliable switching.
- High Ingress Protection: Engineered with robust dust and water resistance for demanding industrial panels.
- Integrated 1 NO Contact: Pre-wired with 1 normally open contact rated for up to 300 V AC/DC control circuits.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | C2SS1-10B-10 |
| Product ID (SKU) | 1SFA619200R1016 |
| Brand / Manufacturer | ABB |
| Product Range | Compact Range |
| Product Type | 2-Position Selector Switch |
| Actuator / Handle Type | Short Handle (Black) |
| Function / Position | 2-Position Maintained |
| Bezel Material | Black Plastic |
| Illumination | Non-Illuminated |
| Contact Configuration | 1 NO (0 NC) |
| Voltage Rating | 24–300 V AC/DC |
| EAN | 7320500554685 |
