AF65-30-00-41 – ABB | “CTR,3P,68A,24-60VAC,2/2”

Description

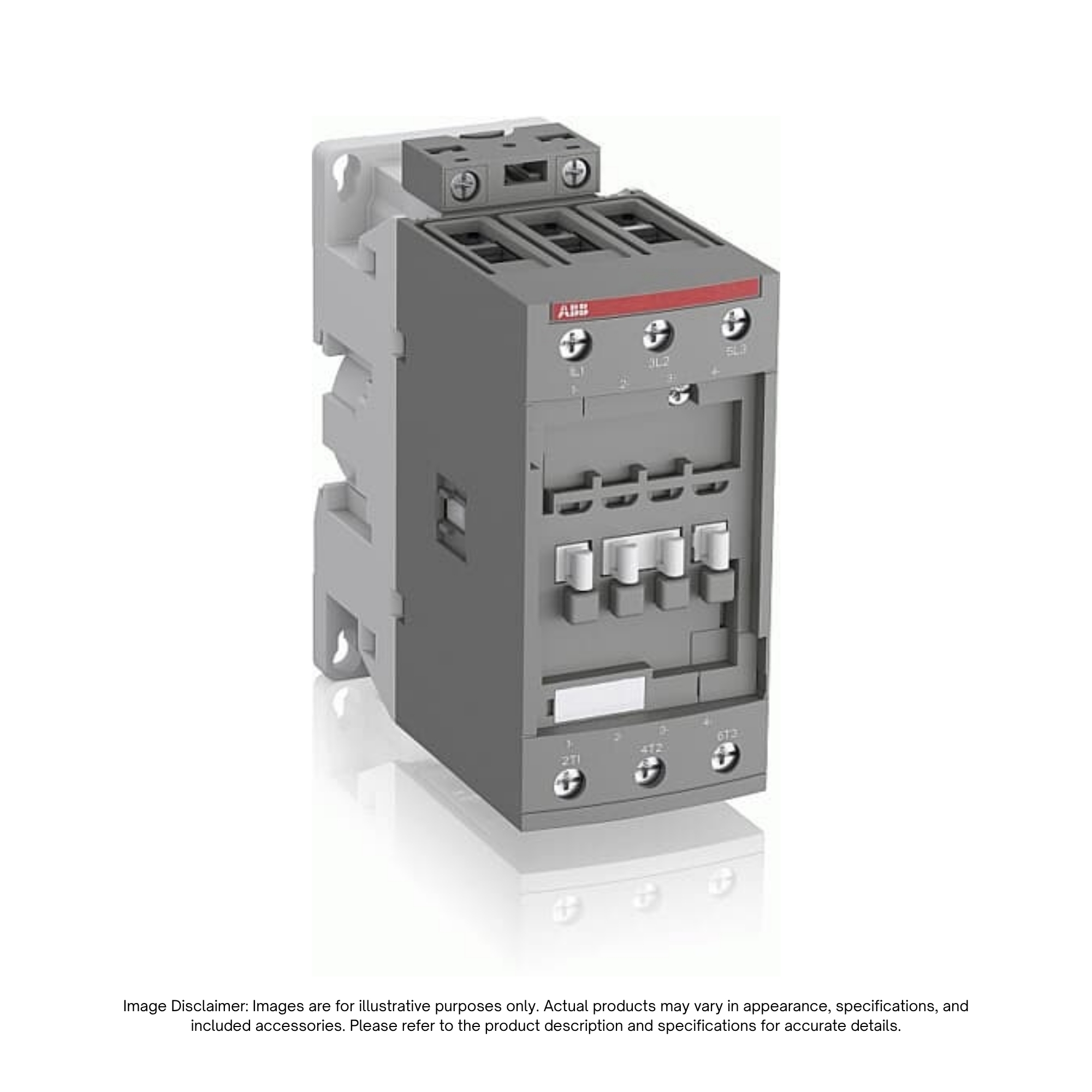

The ABB AF65-30-00-41 Contactor (1SBL387001R4100 / AF65-30-00-41) is a 3-pole block-type industrial contactor engineered with advanced electronically controlled AF coil technology. Designed for wide control voltage management across 24–60 V AC (50/60 Hz), its electronic coil interface easily manages large control voltage variations, drastically reducing energy consumption in control panels and ensuring distinct, chatter-free operation in unstable power networks.

Capable of controlling 3-phase AC-3 motors up to 30 kW / 400 V AC or 50 hp / 480 V UL (60 hp @ 600 V UL), and switching non-inductive or slightly inductive loads up to 105 A (AC-1) / 90 A UL general use, the AF65-30-00-41 features heavy-duty screw terminal connections and built-in surge suppression. Its compact block-type design allows easy front- and side-mounted expansion with add-on auxiliary contact blocks and modular ABB accessories.

Key Features

• Advanced AF Coil Technology: Wide AC control voltage range (24–60 V 50/60 Hz) handles voltage fluctuations and lowers panel power consumption.
• High Motor & Power Ratings: Controls 3-phase motors up to 30 kW (400 V) / 50 hp (480 V UL) and switches general power loads up to 105 A AC-1.
• Integrated Surge Protection: Factory-equipped with built-in surge suppression, eliminating the need for external suppressor blocks.
• Screw Terminal Connections: Heavy-duty screw terminals provide secure, vibration-resistant wiring for main and control circuits.
• Modular & Expandable: Accepts front- and side-mounted add-on auxiliary contact blocks (mechanically-linked and N.C. mirror contacts compliant).

Specifications
