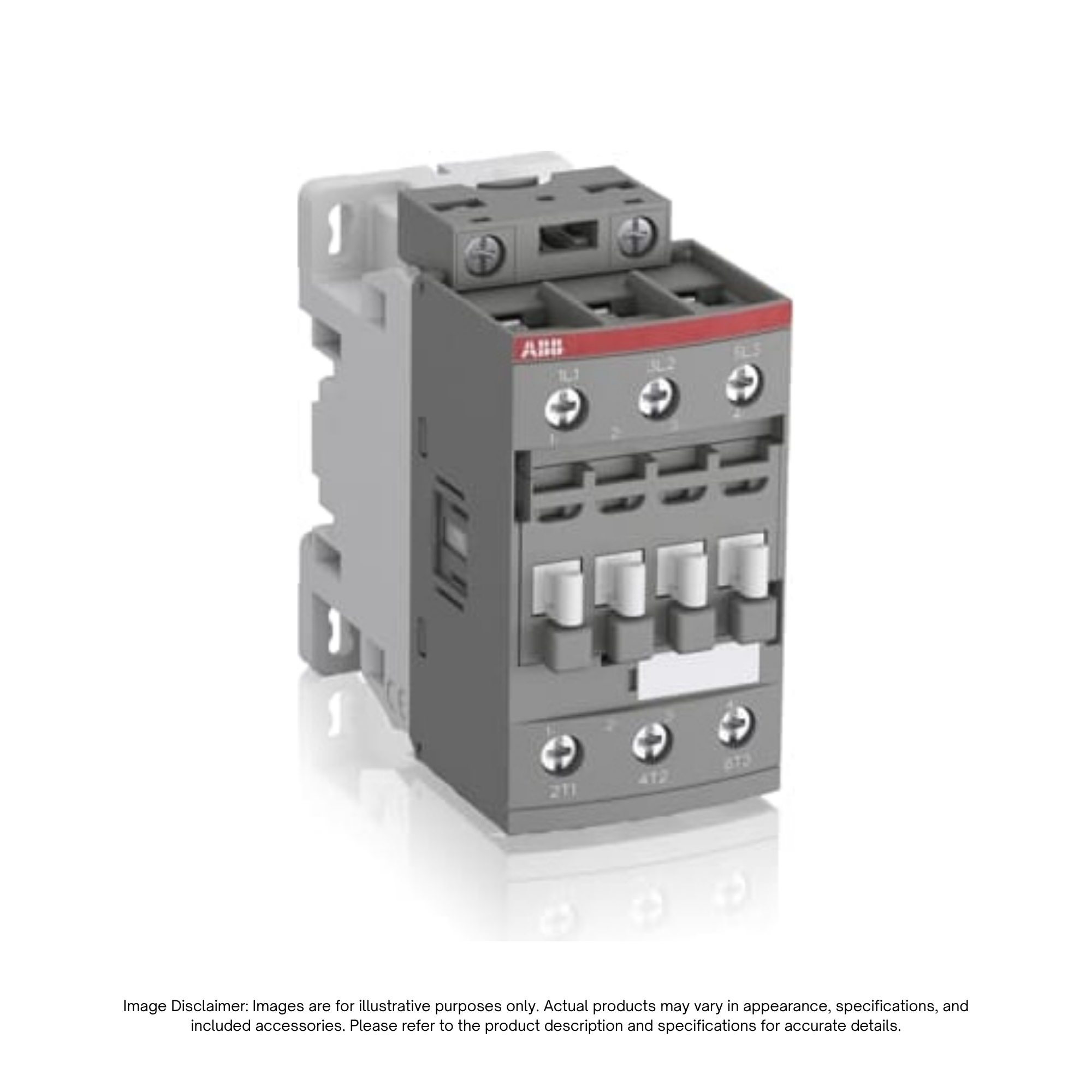

AF30-30-00-13 – ABB | “AF30 3P CONTR, 100-250VAC/DC”

Description

The ABB AF30-30-00-13 Contactor (1SBL277001R1300) is a high-performance, 3-pole block-type industrial contactor featuring advanced electronically controlled AF coil technology. Engineered for wide control voltage flexibility, its electronic coil seamlessly handles large control voltage variations across 100–250 V AC (50/60 Hz) and 100–250 V DC, lowering panel energy consumption and ensuring distinct, vibration-free operation in fluctuating electrical networks.

Rated for controlling 3-phase motors up to 15 kW / 400 V AC (AC-3) or 20 hp / 480 V UL, and switching power circuits up to 50 A (AC-1 / UL general use), the AF30-30-00-13 features secure screw terminal connections. With built-in surge suppression, it eliminates the need for external suppressor blocks while offering easy expansion through add-on auxiliary contact blocks and modular ABB accessories.

Key Features

• Wide-Voltage AF Coil Technology: Universal coil voltage range (100–250 V 50/60 Hz and DC) absorbs voltage fluctuations and reduces coil power consumption.
• High Motor & Power Capacity: Controls 3-phase AC-3 motors up to 15 kW (400 V) / 20 hp (480 V UL) and switches general power loads up to 50 A.
• Integrated Surge Suppression: Built-in surge protection safeguards control circuits without requiring external suppressor blocks.
• Screw Terminal Connections: Provides dependable, vibration-resistant electrical wiring for power circuits.
• Modular Expansion: Compact block-type chassis easily accepts front- and side-mounted auxiliary contact blocks and add-on accessories.

Specifications
