AF16-30-10-13 – ABB | “AF16 3P CONTR, 1NO, 100-250VAC/D”

Description

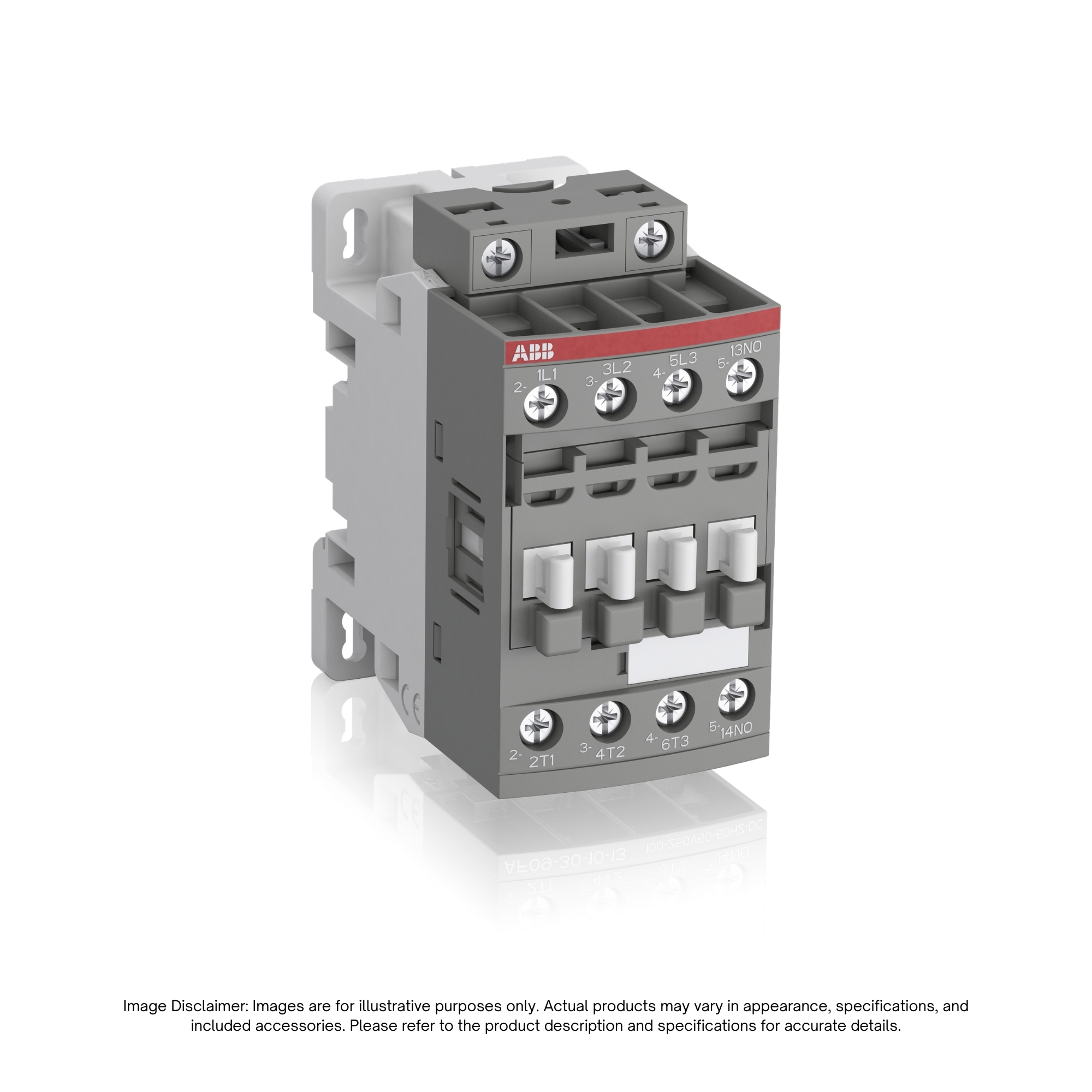

The ABB AF16-30-10-13 Contactor (1SBL177001R1310) is a compact, 3-pole block-type industrial contactor featuring advanced electronically controlled AF coil technology. Engineered for wide control voltage flexibility, its electronic coil seamlessly handles large control voltage variations across 100–250 V AC (50/60 Hz) and 100–250 V DC, lowering panel energy consumption and ensuring distinct, stable operation in fluctuating electrical networks.

Rated for controlling motors up to 7.5 kW / 400 V AC (AC-3) or 10 hp / 480 V UL, and switching power circuits up to 30 A (AC-1 / UL general use), the AF16-30-10-13 comes equipped with 1 built-in normally open (1 NO) auxiliary contact and secure screw terminal connections. Built-in surge protection eliminates the need for external suppressors, providing a compact unit that expands easily with add-on auxiliary contact blocks and modular ABB accessories.

Key Features

• Wide-Voltage AF Coil Technology: Universal coil voltage range (100–250 V 50/60 Hz and DC) absorbs large voltage dips and reduces energy consumption.
• Motor & Power Control: Controls 3-phase AC-3 motors up to 7.5 kW (400 V) / 10 hp (480 V UL) and switches resistive loads up to 30 A.
• Built-in Auxiliary Contact: Factory-equipped with 1 NO integrated auxiliary contact for signal monitoring and interlocking circuits.
• Integrated Surge Suppression: Built-in surge protection safeguards control systems without needing external surge blocks.
• Block-Type Modular Design: Compact frame easily accepts front- and side-mounted auxiliary contact blocks and add-on accessories.
