AF116-30-11-13 – ABB | “CTR,3P,104A,100-250VAC/DC,1/1”

Description

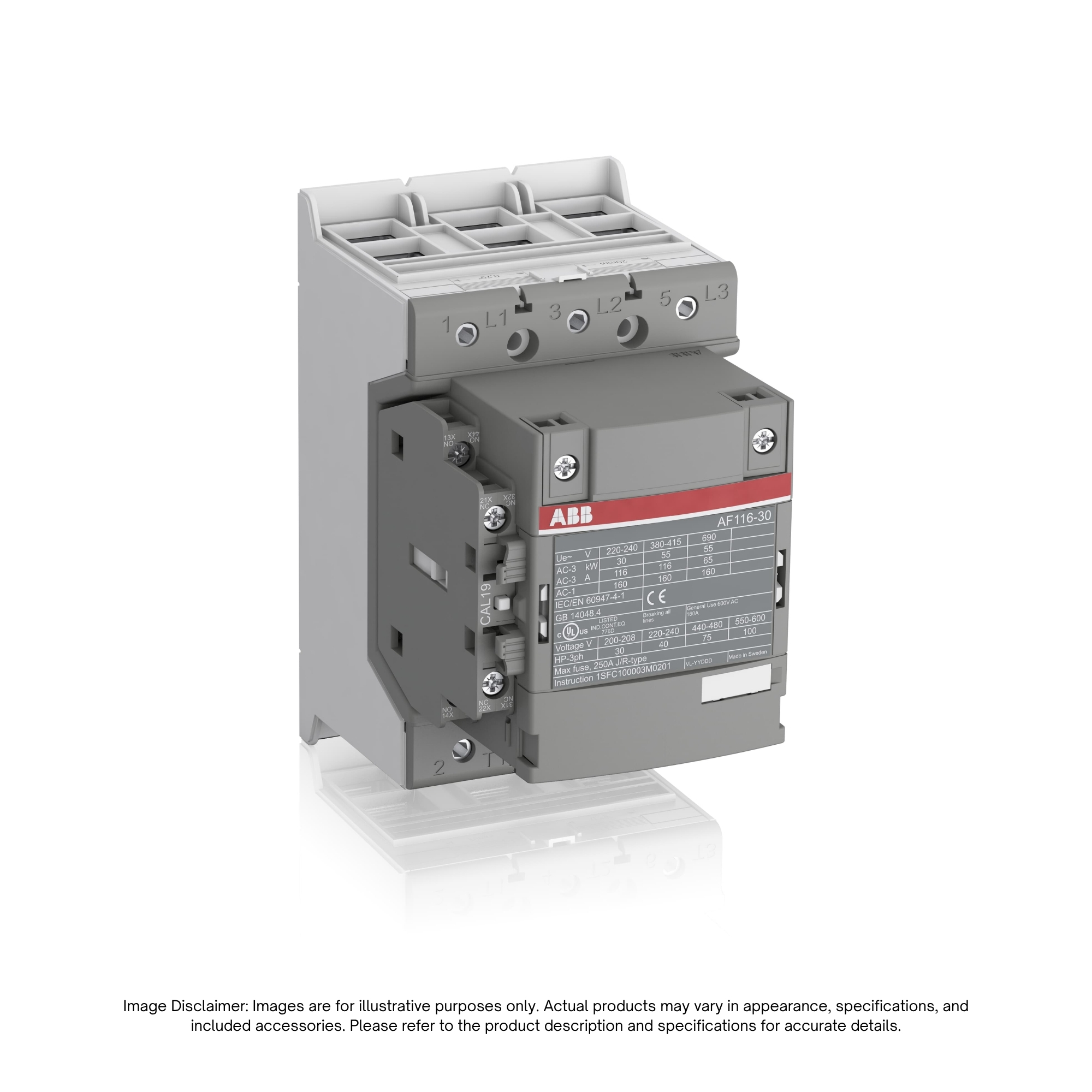

The ABB AF116-30-11-13 Contactor (1SFL427001R1311) is a high-capacity, 3-pole block-type industrial contactor featuring advanced electronically controlled AF coil technology. Engineered for demanding motor control and power distribution, its electronic coil manages wide control voltage variations across 100–250 V AC (50/60 Hz) and 100–250 V DC, drastically reducing panel energy consumption and ensuring distinct, vibration-free operation in unstable supply networks.

Capable of controlling motors up to 55 kW / 400 V AC (AC-3) or 75 hp / 480 V UL, and switching power loads up to 160 A (AC-1 / UL general use), the AF116-30-11-13 comes factory-equipped with 1 NO + 1 NC pre-mounted auxiliary contacts and secure double clamp terminals. With built-in surge protection, it offers a compact, high-reliability solution that easily integrates with add-on auxiliary contact blocks and modular ABB accessories.

Key Features

• Wide-Voltage AF Coil Technology: Universal control voltage range (100–250 V 50/60 Hz and DC) absorbs voltage fluctuations and optimizes coil power consumption.
• High Motor & Power Capacity: Controls 3-phase AC-3 motors up to 55 kW (400 V) / 75 hp (480 V UL) and switches general loads up to 160 A.
• Pre-Mounted Auxiliary Contacts: Factory-configured with 1 NO and 1 NC auxiliary contacts for instant feedback and interlocking.
• Double Clamp Terminals: Ensures reliable, vibration-resistant electrical connections for main power cables.
• Built-in Surge Suppression: Integrated surge protection guards control circuits without requiring additional external modules.
• Block-Type Modular Architecture: Compact chassis expands easily with front- and side-mounted auxiliary contact blocks and accessories.

Specifications
