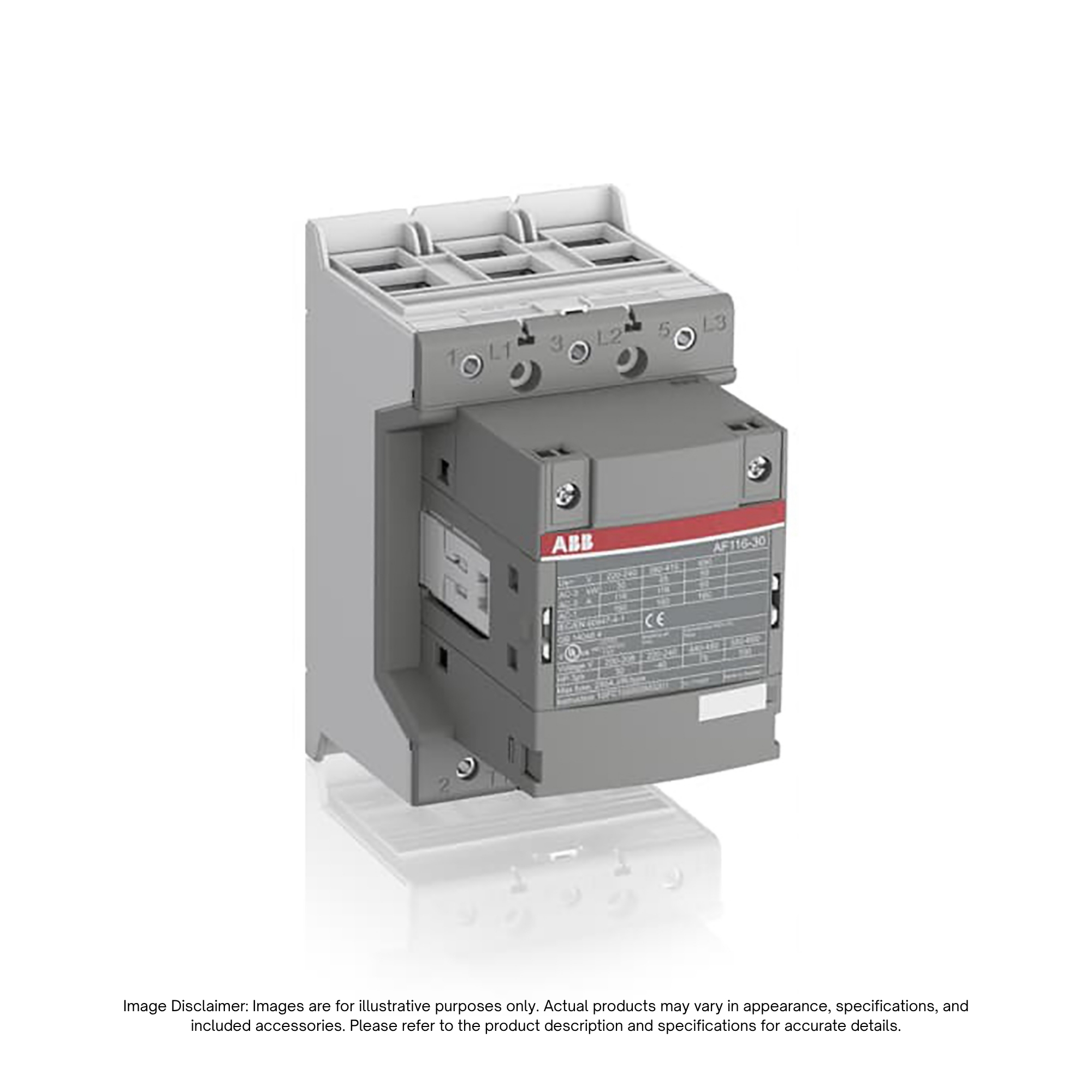

AF116-30-00-11 – ABB | “CTR,3P,104A,20-60VDC/24-60VAC”

Description

The ABB AF116-30-00-11 (Product ID: 1SFL427001R1100, EAN: 7320500476888) is a heavy-duty 3-pole industrial contactor engineered for high-capacity motor control and power switching up to 690 V IEC or 600 V UL. Rated to control motors up to 55 kW at 400 VAC (AC-3) or 75 hp at 480 V UL, and switch heavy power circuits up to 160 A (AC-1 / general use), this unit features robust double clamp terminals for secure conductor termination.

Powered by ABB’s advanced AF technology, the AF116-30-00-11 features a wide control voltage range of 24–60 V (50/60 Hz) and 20–60 V DC. It automatically manages large voltage fluctuations, ensures reliable operation across unstable power grids, reduces panel energy consumption, and incorporates built-in surge protection within a compact block design.

Key Features

• Wide Control Voltage Range: Operates efficiently across 24–60 V (50/60 Hz) AC and 20–60 V DC control supplies, effortlessly managing voltage sags and variations.
• High-Capacity 3-Pole Switching: Engineered for demanding motor loads up to 55 kW / 400 V (AC-3) and power switching up to 160 A AC-1.
• Double Clamp Terminals: Equipped with secure double-clamp connections for heavy-gauge industrial cables.
• Integrated Surge Suppression: Built-in surge protection saves panel space and eliminates the need for external suppressor modules.
• AF Technology Efficiency: Optimizes coil energy consumption and guarantees reliable chattering-free operation in unstable networks.
• Modular Expandability: Block-type design supports a wide variety of add-on auxiliary contact blocks and electrical accessories.
