Description

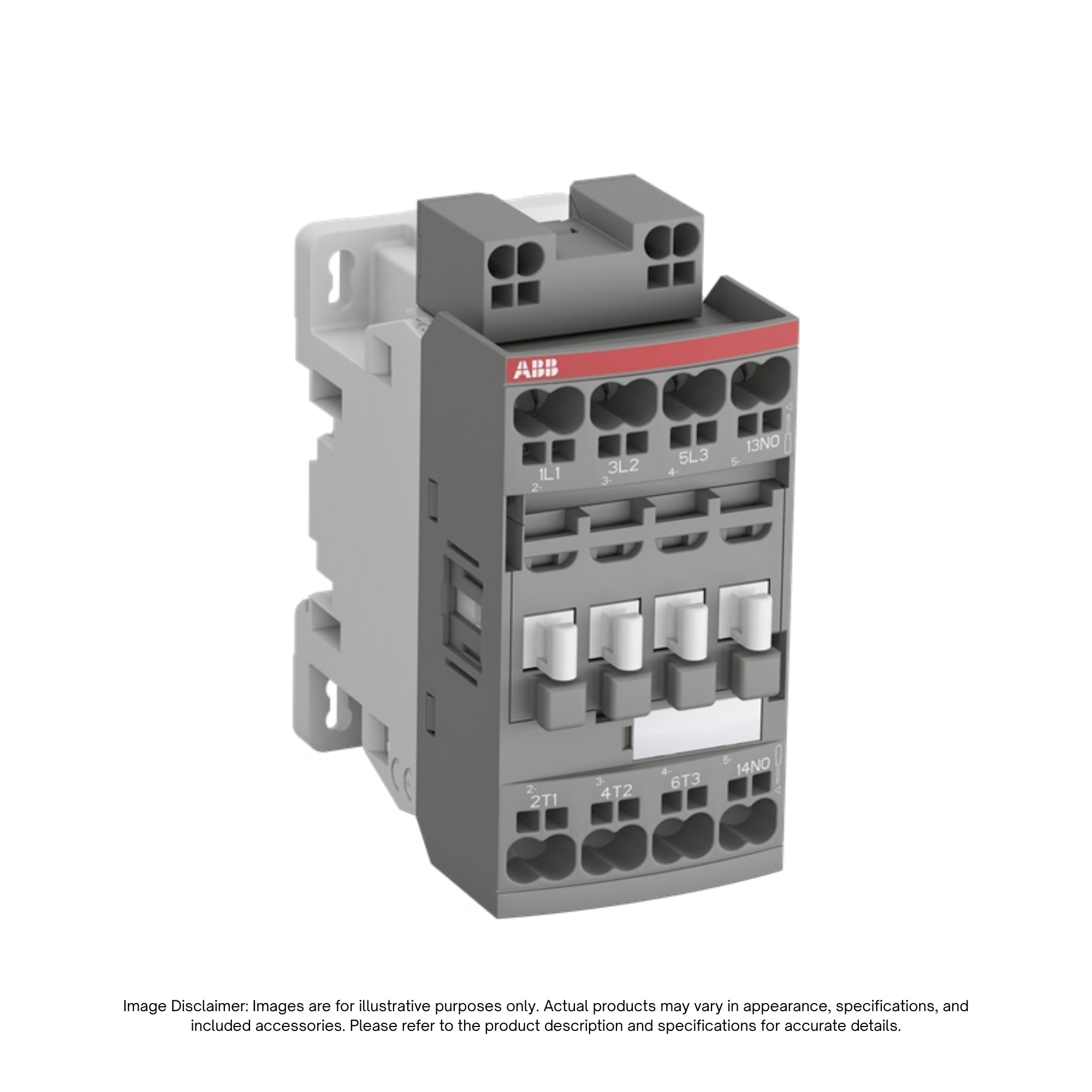

The ABB AF09-30-10K-13 (Product ID: 1SBL137005R1310, EAN: 3471523154032) is a compact 3-pole contactor designed for motor control and power switching applications up to 690 V IEC or 600 V UL. Rated to control motors up to 4 kW at 400 VAC (AC-3) or 5 hp at 480 V UL, and switch power circuits up to 25 A (AC-1 / general use), this unit features 1 built-in auxiliary contact and fast push-in spring terminals.
Powered by ABB’s innovative AF technology, the AF09-30-10K-13 accepts a wide control voltage range of 100–250 V (50/60 Hz and DC). It automatically manages large voltage fluctuations, ensures stable operation in unstable power networks, reduces panel energy consumption, and incorporates built-in surge protection in a space-saving block design.
Key Features
- Wide Control Voltage Range: Operates reliably on 100–250 V (50/60 Hz and DC) control supplies, managing wide voltage variations effortlessly.
- 3-Pole Power Switching: Engineered for motors up to 4 kW / 400 V (AC-3) and power circuits up to 25 A AC-1.
- Push-In Spring Terminals: Equips fast, vibration-resistant spring terminals for tool-free, secure conductor wiring.
- Built-In Auxiliary Contact: Includes 1 integrated auxiliary contact for control interlocking and status signaling.
- Integrated Surge Protection: Built-in surge suppression provides a compact footprint without requiring external suppressor modules.
- AF Technology Efficiency: Reduces panel energy consumption and guarantees distinct operations even in unstable electrical networks.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Type / Model | AF09-30-10K-13 |
| Brand / Manufacturer | ABB |
| Product ID | 1SBL137005R1310 |
| EAN Code | 3471523154032 |
| Number of Main Poles | 3-Pole (3-Phase) |
| Rated Operational Voltage | 690 VAC (IEC) / 600 VAC (UL) |
| AC-3 Motor Rating (400V) | 4 kW / 9 A |
| UL / CSA Rating (480V) | 5 hp / 25 A General Use |
| AC-1 Thermal Current | 25 A |
| Control Supply Voltage Range | 100 … 250 V (50/60 Hz and DC) |
| Terminal Type | Push-In Spring Terminals |
| Built-In Auxiliary Contacts | 1 Built-in Auxiliary Contact |
| Surge Protection | Built-in |
| Primary Applications | Industrial motor starting, HVAC equipment, lighting control, and power distribution panels |
