Smart Cottage Automation for Remote Efficiency
By: AJ Smith
AJ’s cottage automation system, built around ControlByWeb’s X-410 controller, seamlessly integrates environmental monitoring, irrigation management, and critical infrastructure oversight into a cohesive, user-friendly solution. Designed for off-grid reliability, this project highlights how industrial-grade hardware can simplify residential automation through intuitive, no-code logic.
Comprehensive Environmental Oversight

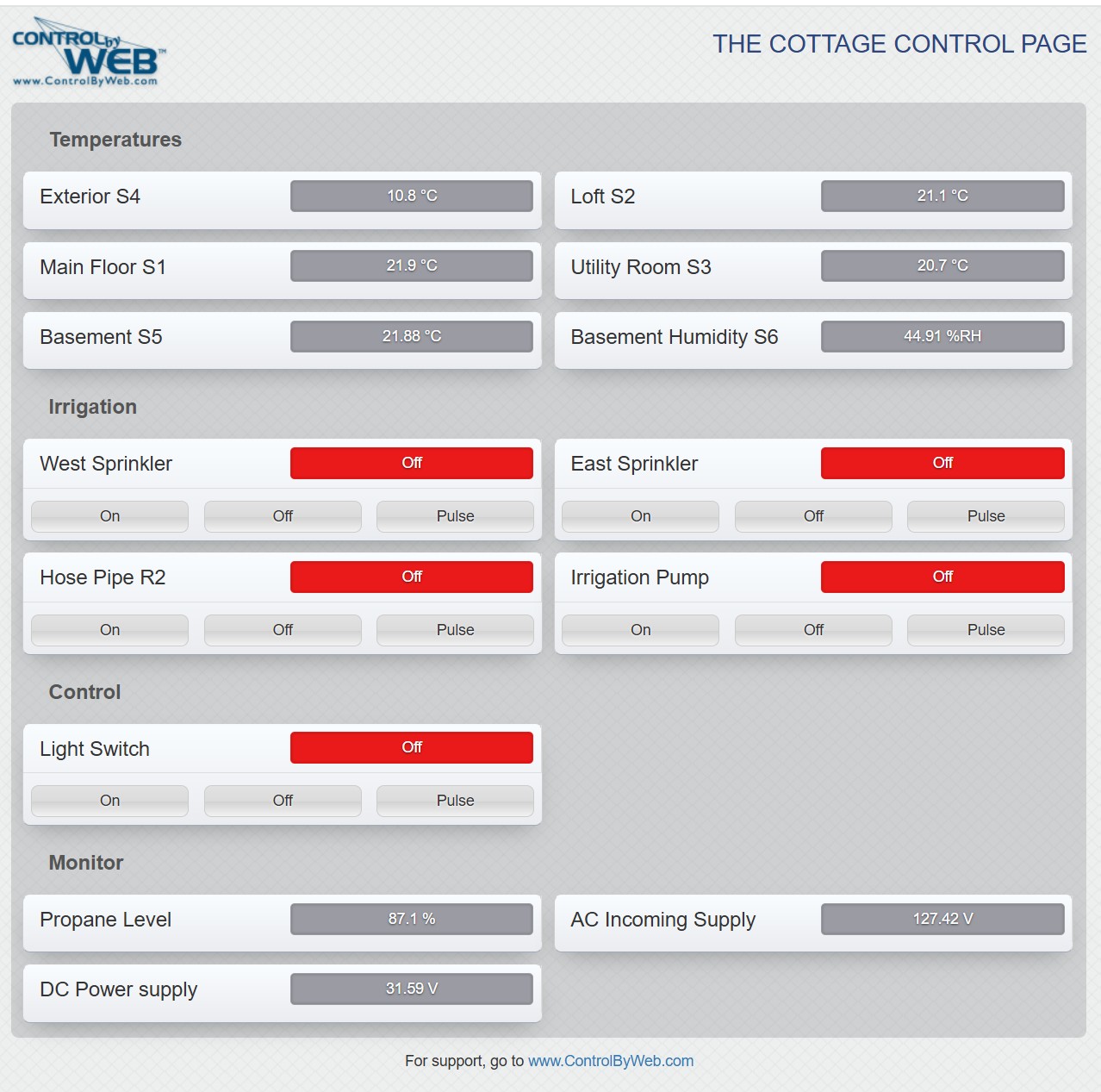

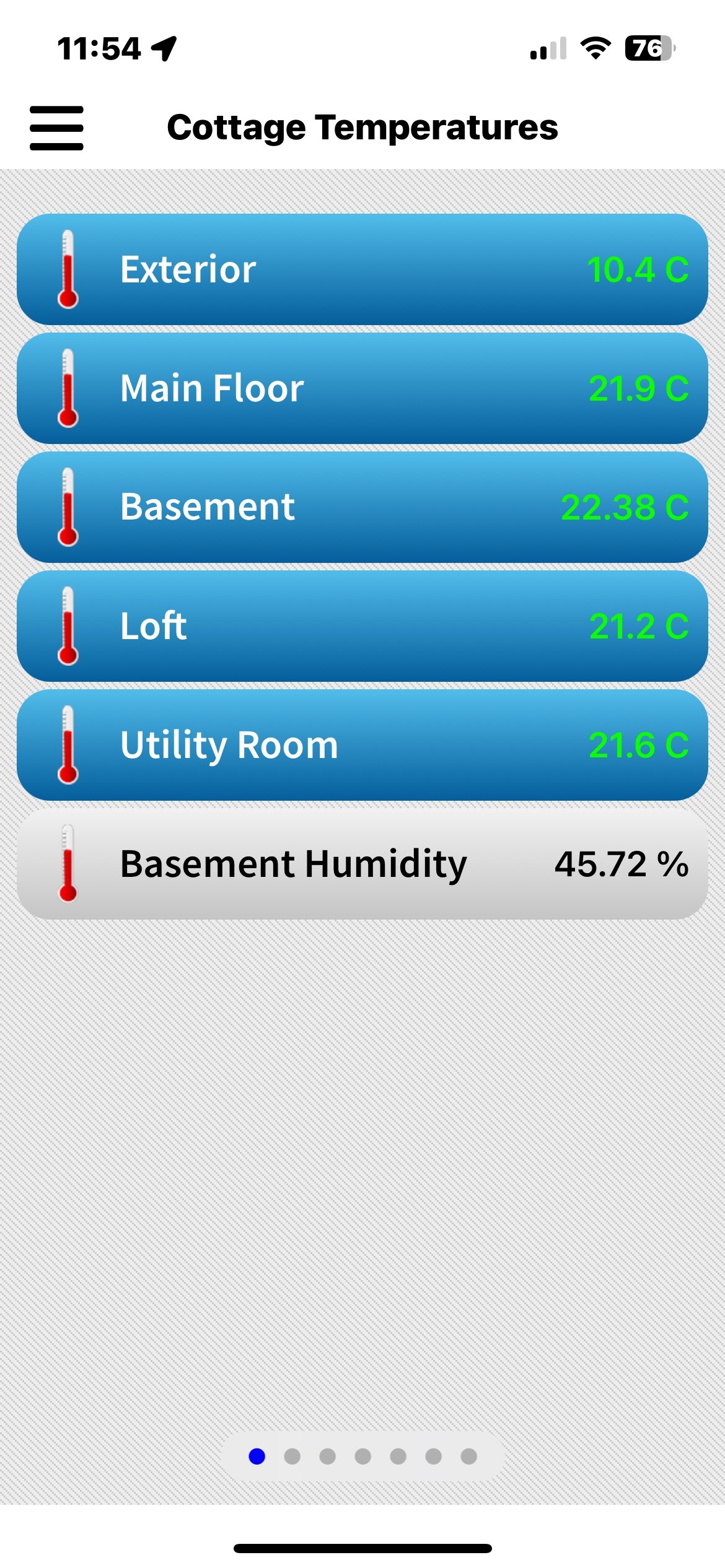

The X-410 monitors six distinct temperature zones across the cottage: exterior ambient conditions, loft storage areas, main living spaces, utility rooms, basement plumbing corridors, and basement humidity levels. Sixteen temperature sensors feed real-time data into the controller, with basement humidity tracking added to preempt mold risks. AJ leverages the X-410’s data logging to analyze trends, such as seasonal temperature fluctuations or moisture accumulation, ensuring proactive maintenance.
Precision Irrigation Management

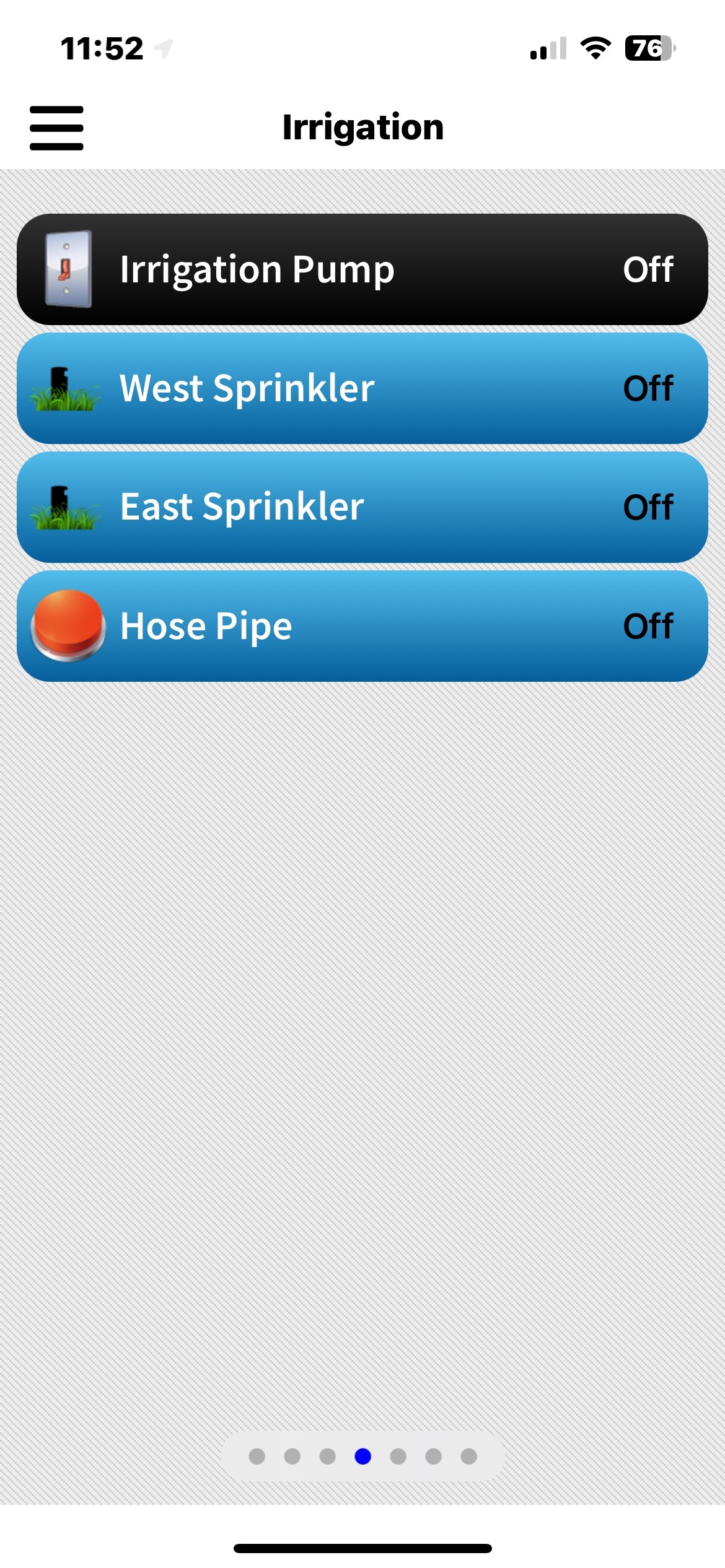

The system automates water distribution through four key components: west and east zone sprinklers, a hose pipe for spot watering, and an irrigation pump. The X-410’s four SPST relays activate these components based on schedules or conditional rules programmed via the no-code Task Builder. For example, sprinklers skip cycles during rainfall (detected via weather-triggered email alerts), and the irrigation pump shuts off if pressure drops indicate a dry well. A physical light switch toggle, wired to one of the X-410’s digital inputs, allows manual override for emergency shutdowns or ad-hoc watering.
Critical System Monitoring

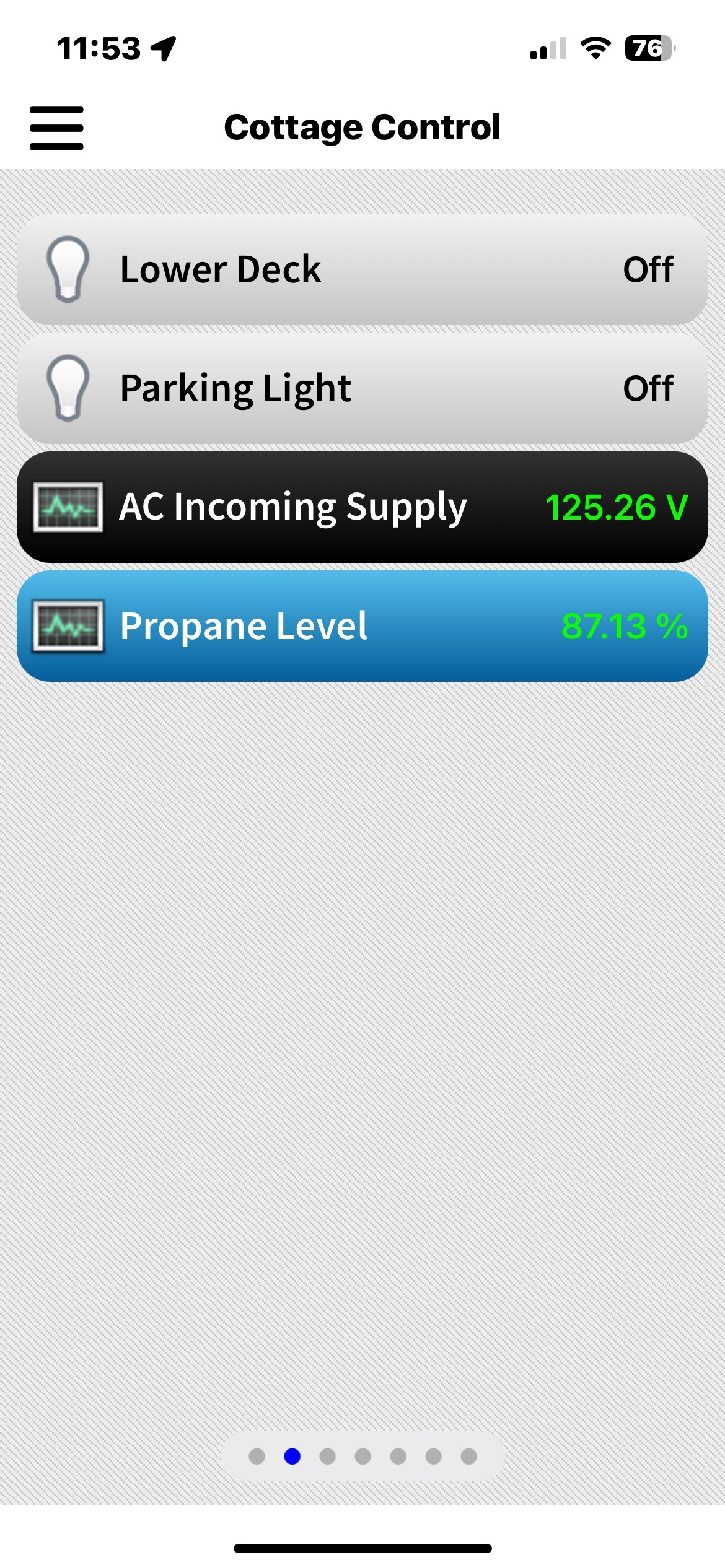

Beyond environmental control, the X-410 tracks three vital metrics: propane tank levels, AC power supply stability, and DC battery health. A propane tank sensor sends analog data to the controller, triggering email alerts when levels dip below 20%. The AC incoming supply is monitored for voltage drops or outages, while DC power levels ensure battery backups remain functional. These metrics are accessible remotely via the X-410’s WiFi connectivity, letting AJ verify system health from his smartphone.
Hardware Integration and Workflow
The X-410 serves as the central hub, utilizing its four relays for irrigation control and four digital inputs for sensor data and manual overrides. WiFi eliminates the need for hardwired Ethernet, relying on the cottage’s existing network for remote access. The controller’s Peer-to-Peer (P2P) capability future-proofs the system, allowing expansion with additional ControlByWeb devices like an X-17S module for more sensors or relays. Power redundancy is ensured via PoE + 9-28VDC input, backed by a battery to maintain operation during outages.
Proven Efficiency and Scalability
After months of operation, the system has demonstrated flawless reliability. Scheduled tasks reduce energy waste (e.g., turning off exterior lights at dawn), while email alerts provide instant visibility into issues like basement freezing or pump failures. AJ plans to integrate ControlByWeb Cloud for centralized data access and add water leak sensors using spare inputs, further enhancing the cottage’s resilience.
Conclusion
Vanco Electrical Solutions applauds AJ’s strategic use of the X-410 to create a robust, user-friendly automation system. By merging industrial hardware with no-code logic, AJ achieves precise control over temperature, irrigation, and energy—proving that advanced automation belongs in residential settings. Thank you, AJ, for showcasing practical, scalable solutions that bridge industrial and everyday applications!
