Description

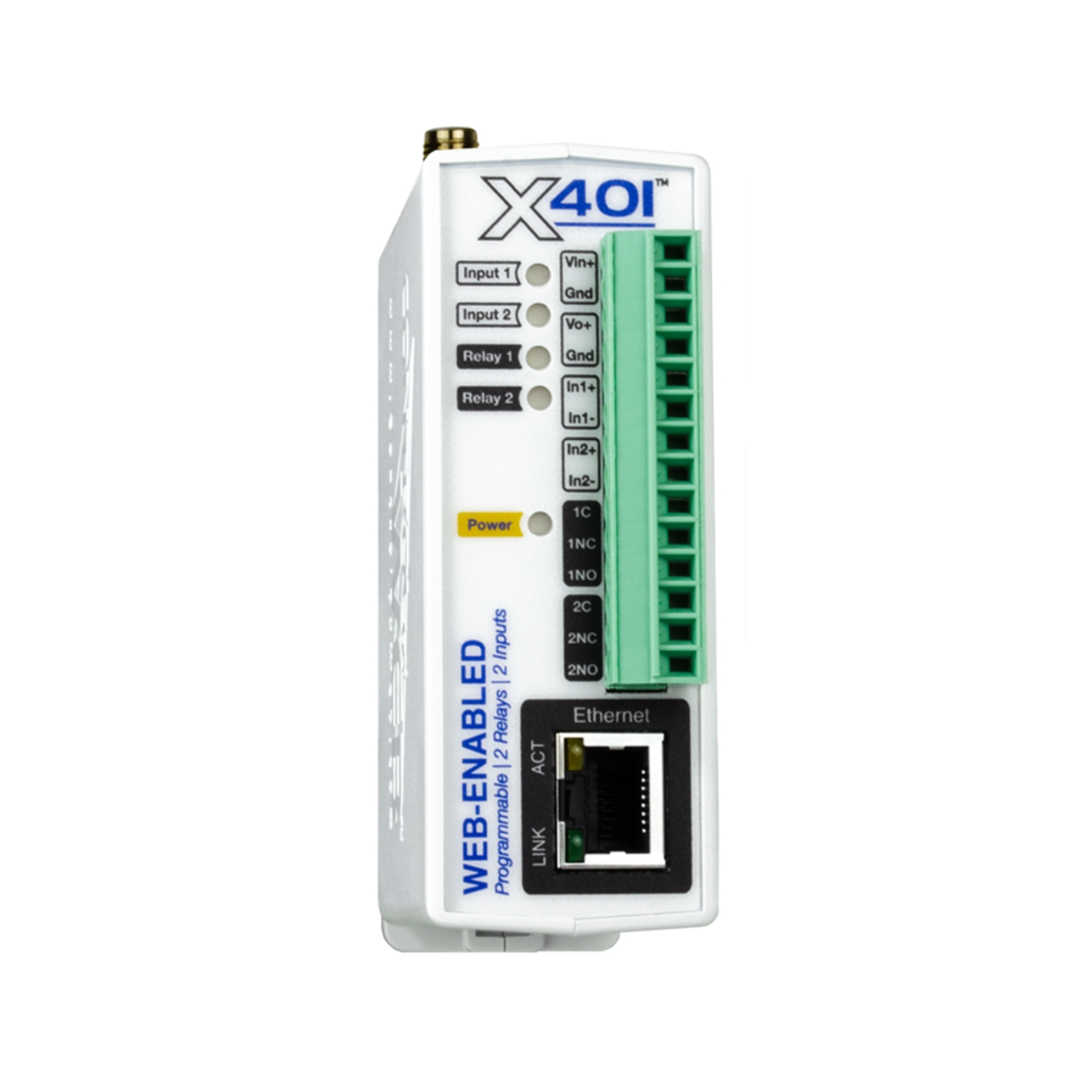

The ControlByWeb® X-401CW-I is a compact dual relay and input module designed for dependable edge control in industrial, commercial, and OEM applications. As the cellular and WiFi model in the 400 Series, the X-401CW-I combines 2 SPDT (Form C) relays with 2 optically isolated digital inputs in a versatile controller that can be accessed through a browser-based interface.
With an embedded GUI logic builder and open communication protocols including Modbus, MQTT, SNMP, and REST, the X-401CW-I integrates smoothly with SCADA, PLC, and IIoT systems. It is well suited for applications such as door and access control, alarm panel monitoring, network device rebooting, and motor control. With built-in Ethernet, WiFi, and cellular connectivity, the X-401CW-I delivers flexible remote monitoring and control without licensing fees or added software.
Key Features
- 2 Relays & 2 Digital Inputs: Compact all-in-one control for monitoring and switching applications.
- Ethernet, WiFi & Cellular Connectivity: Flexible communications for remote access and dependable deployment.
- Browser-Based Control: Configure and access the device through a standard web browser.
- No-Code Logic Builder: Build custom automation using intuitive drop-down menus.
- Peer-to-Peer Communication: Share I/O and coordinate control with other ControlByWeb devices.
- Email Notifications: Send alerts based on input states and programmed logic.
- Robust Data Logging: Capture events and system activity for later review.
- Open Protocol Integration: Supports HTTP, HTTPS, SSL, XML, MQTT, Modbus TCP/IP, SNMP, SMTP, and Remote Services.
- Industrial-Grade Design: Built for dependable operation in demanding environments.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | X-401CW-I |
| Product Type | Dual Relay and Input Module |
| Power Requirements | 9–28 VDC |
| Maximum Current Draw | 233 mA |
| Relay Outputs | 2 |
| Relay Contact Type | SPDT (Form C) |
| Max Relay Voltage | 28 VAC / 24 VDC |
| Max Relay Current | 3 A |
| Contact Resistance | < 50 milliohms initial |
| Contact Material | AgSnO2 |
| Electrical Life | 100K cycles (Typical) |
| Mechanical Life | 10M cycles (Typical) |
| Environmental Rating | Over voltage Category II, Pollution Degree 2 |
| Relay Modes | ON/OFF or Pulsed |
| Pulse Timer Duration | 0.1 to 86,400 seconds (1 day) |
| Digital Inputs | 2 |
| Digital Input Type | Optically-Isolated |
| Digital Input Voltage Range | 4–26 VDC |
| Digital Input Current | 950 uA @ 4V, 8.5 mA @ 26V |
| Minimum Hold Time | 20 ms |
| Input Isolation | 1500 V |
| Input Functions | Monitor State, Control Relays, Control Remote Relays, Scalable Counter, On Timer, Total On Timer, Frequency |
| Maximum Count | 24-bit |
| Max Count Rate | 200 Hz Max (Dependent on Configuration) |
| Edge Trigger | Rising, Falling or Both |
| Real-Time Clock | Manual or NTP setup NTP sync period: Once, Daily, Weekly, On Powerup Auto daylight savings adjustment |
| Backup Functions | Retain real-time clock, 1 register, 2 counters, 2 relay states |
| Backup Duration | 24 hours |
| Network Interface | 10/100 Base-T Ethernet Port |
| Wireless Connectivity | WiFi (Included) |
| Cellular Connectivity | Cellular Modem (Included) |
| Wireless Standards | IEEE 802.11 b/g/n |
| WiFi Frequency Band | 2.412 – 2.462 GHz |
| WiFi Security | WPA2, WPA3 |
| Connectors | Power, Outputs, and Inputs: 14-position, 3.81mm, removable Network: 8-pin RJ-45 Cell Antenna: Male SMA connector |
| LED Indicators | 7 LEDs: Power on, Relay coil energized 1-2, Digital Inputs 1-2, Network linked, Network activity |
| Operating Temperature | -40°F to 150°F (-40°C to 65.5°C) |
| Dimensions | 1.41 in W x 3.88 in H x 3.1 in D (35.7 x 98.5 x 78 mm, not including connector) |
| Weight | 5 oz (142 g) |
| Enclosure Material | Lexan 940 Polycarbonate Plastic |
| Flame Rating | UL94 V0 |
| Protocols | HTTP, HTTPS, SSL, XML, MQTT, Modbus TCP/IP, SNMP, SMTP, Remote Services |
| Logging | 512K log file size, up to 8,448 logs, nonvolatile flash, circular buffer |
| Advanced Features | Task Builder, BASIC interpreter, Remote Services |
| Password Settings | 6–18 characters |
| Electromagnetic Compliance | IEC CISPR 22, CISPR 24, EU EN55024, EN55022, FCC 47CFR15 (Class B) |
