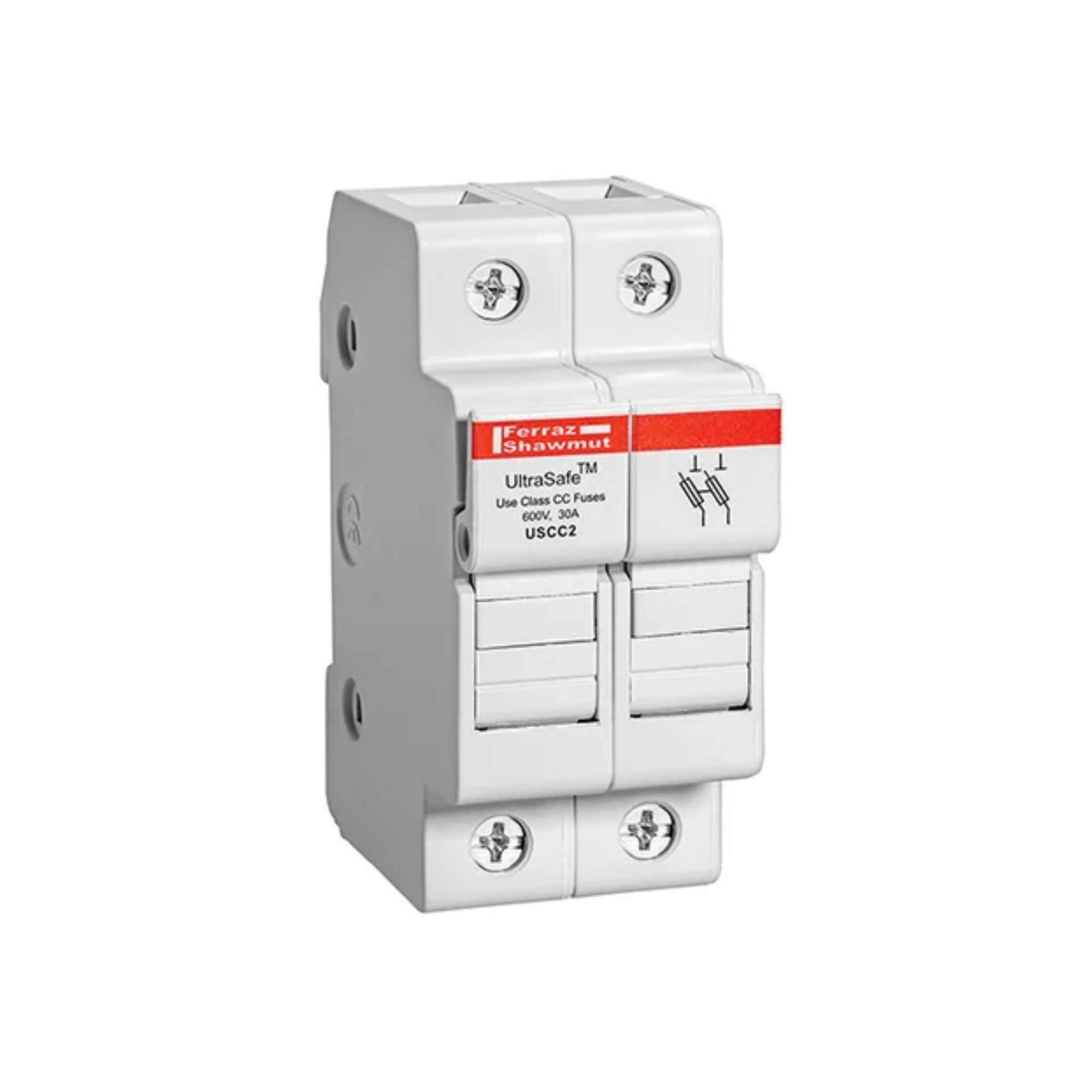

USCC2 – Mersen | 600V 30A 2P CC ULTSFE

Description

The Mersen USCC2 UltraSafe™ 2-Pole Class CC Fuse Holder provides high-performance, touch-safe protection for Class CC fuses in industrial control circuits. Engineered for maximum safety and performance, this compact non-indicator module is rated for applications up to 600 VAC / 600 VDC and 30 Amperes with an exceptional 200 kA short-circuit current rating (SCCR).

Built with IP20 finger-safe protection under IEC and DIN standards, the USCC2 ensures complete operator safety during routine maintenance and fuse changes without exposing live components. Housed in a tough, insulating glass-filled polycarbonate casing, this unit saves up to 15% panel mounting space compared to traditional fuse blocks and snaps easily onto standard 35mm DIN rail. Equipped with heavy-duty pressure plate terminals that accept Cu #6 to #14 AWG solid or stranded wire, the Mersen USCC2 is ideal for critical motor branch circuits and power distribution panels requiring Type “2” No Damage protection.

Key Features

• High 200 kA SCCR: Delivers superior short-circuit current protection up to 200 kA when paired with Class CC fuses.
• Finger-Safe IP20 Design: Fully compliant with IEC and DIN standards to prevent accidental contact with live components during operation and fuse replacement.
• 600V AC/DC Rating: Rated for heavy-duty industrial applications up to 600 VAC and 600 VDC at 30 Amperes.
• Space-Saving DIN Rail Mount: Compact 2-pole footprint saves up to 15% panel space and snaps quickly onto standard 35mm DIN rails.
• Robust Wiring Terminals: Pressure plate terminals accommodate Cu #6 to #14 AWG solid or stranded wire with a 1.695 N·m torque rating.
• Durable Glass-Filled Polycarbonate Housing: Molded from high-grade glass-filled polycarbonate for exceptional thermal stability and mechanical strength.
