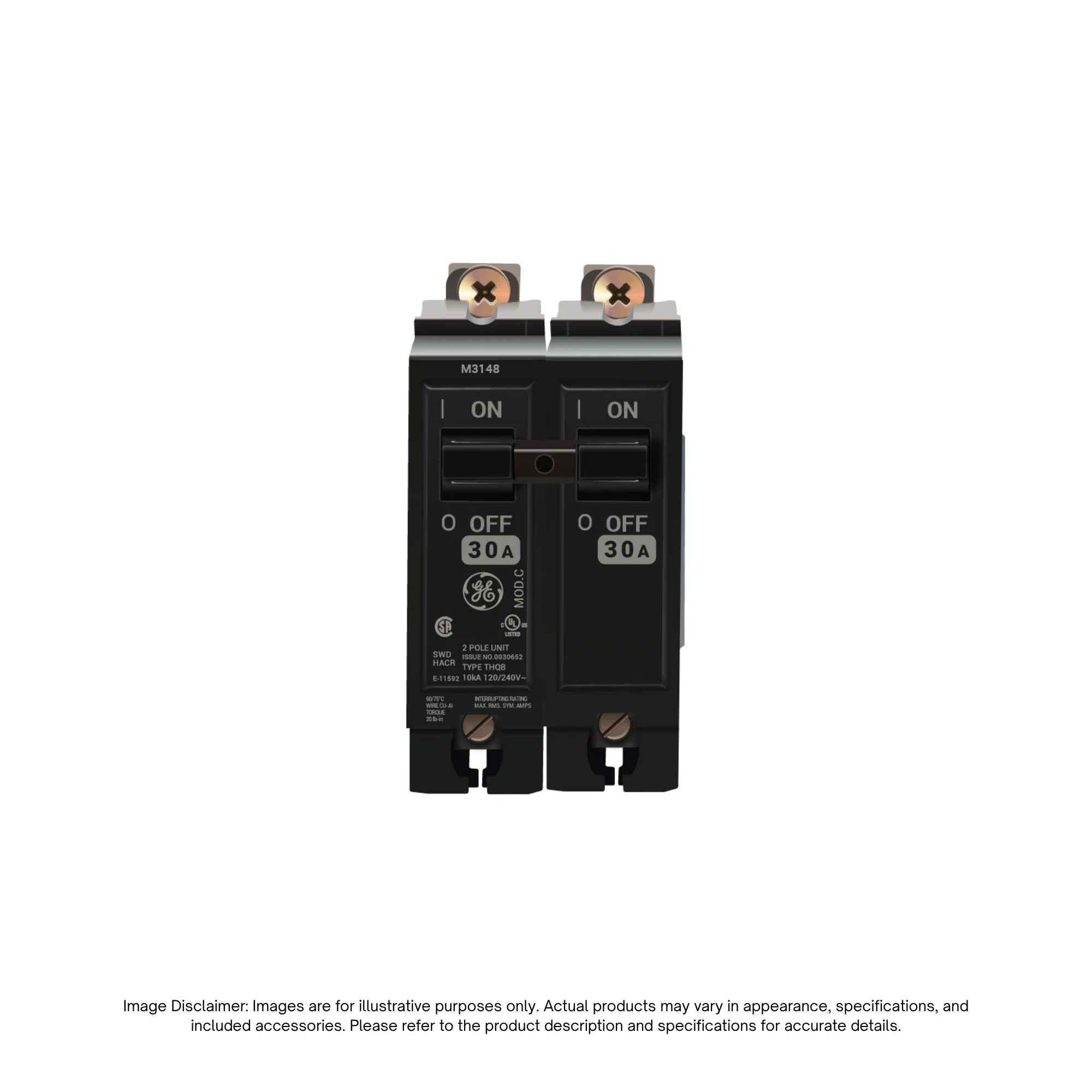

THQB2130 – ABB | THQB 2 POLE 120/240V 10K IC 30AMP

$90.68 CAD

The ABB / GE THQB2130 (1TQB021030X0100) is a 30A 2-pole thermal-magnetic Q-Line circuit breaker rated for 120/240V with a 10 kAIC interrupting capacity, designed for reliable branch circuit protection.

13 in stock

SKU: THQB2130 Categories: ,

Description

The ABB / GE THQB2130 (Product ID: 1TQB021030X0100) is a compact, 2-pole thermal-magnetic miniature circuit breaker engineered for residential and commercial electrical distribution systems. Rated for 30 Amps at 120/240 VAC, this Q-Line breaker provides reliable overload and short-circuit protection with a dependable interrupting capacity (10 kAIC at 120/240V).

Featuring a standard one-inch wide per pole design, the THQB2130 incorporates a quick-make / quick-break mechanism, a common internal trip bar, and an easy-to-spot trip indication for enhanced safety. Built to deliver reliable electrical isolation, it is ideal for standard panelboard and distribution applications.

Key Features

  • Thermal-Magnetic Protection: Combines thermal overload sensing with magnetic short-circuit tripping for comprehensive circuit safety across two poles.
  • 30A / 120/240V Rating: Designed for standard two-pole branch circuit protection in single-phase electrical systems.
  • Reliable Interrupting Capacity: Delivers 10 kAIC at 120/240 VAC for effective fault-clearing performance.
  • Quick-Make / Quick-Break Mechanism: Minimizes contact arcing and wear to ensure an extended operational lifespan.
  • Clear Trip Indication: Provides immediate visual status identification in the event of a tripped circuit.

Specifications

Technical Specification Detail
Global Commercial Alias / Model THQB2130
Brand / Manufacturer ABB / GE
Product ID 1TQB021030X0100
EAN / UPC Code 783164012255
Product Type Thermal-Magnetic Miniature Circuit Breaker (Q-Line)
Amperage Rating 30 A
Voltage Rating 120/240 VAC
Number of Poles 2-Pole (2P)
Interrupting Rating 10 kAIC at 120/240 VAC
Primary Applications Residential and commercial branch circuit protection, load center distribution
Weight 0.740 lbs
Dimensions 2.375 × 2.000 × 3.280 in
Part Number
