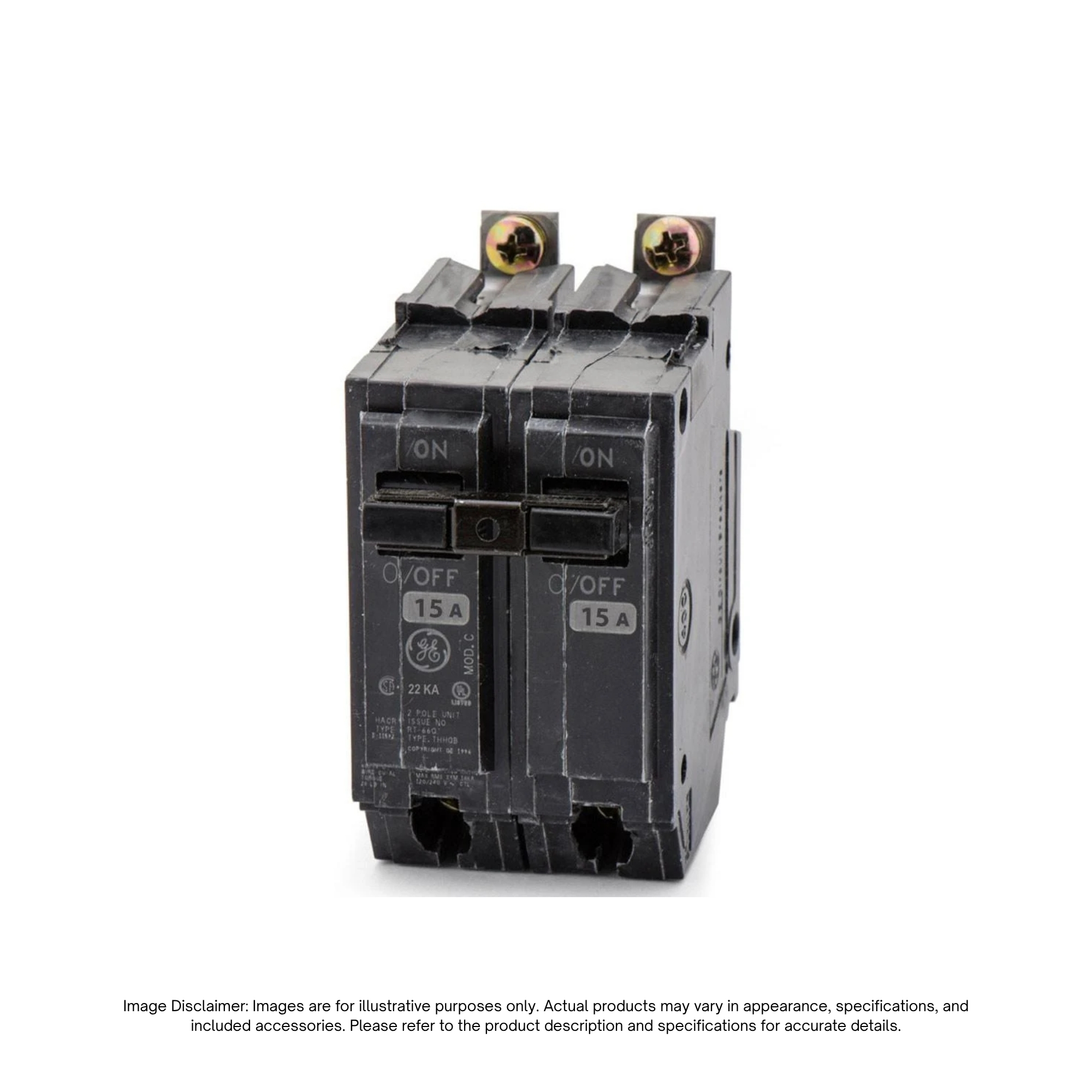

THHQB2115 – ABB | THHQB 2 POLE 120/240V 22KAIC 15AMP

$170.30 CAD

The ABB / GE THHQB2115 (UPC: 783164118339) is a 15A 2-pole bolt-on thermal-magnetic Q-Line circuit breaker rated for 120/240V with a 22 kAIC interrupting capacity and HACR certification.

1 in stock

SKU: THHQB2115 Categories: ,

Description

The ABB / GE THHQB2115 (Catalog Number: THHQB2115, UPC: 783164118339) is a compact, 2-pole thermal-magnetic miniature circuit breaker engineered for residential and commercial electrical distribution systems. Rated for 15 Amps at 120/240 VAC, this bolt-on Q-Line breaker provides reliable overload and short-circuit protection with a high interrupting capacity of 22 kAIC.

Featuring a standard one-inch wide per pole design, the THHQB2115 incorporates a quick-make / quick-break mechanism, a common internal trip bar, and an easy-to-spot trip indication for enhanced safety. It is also rated for HACR applications, making it ideal for heating, air conditioning, and refrigeration equipment.

Key Features

  • Thermal-Magnetic Protection: Combines thermal overload sensing with magnetic short-circuit tripping for comprehensive circuit safety across two poles.
  • 15A / 120/240V Rating: Designed for standard two-pole branch circuit protection in single-phase electrical systems.
  • High Interrupting Capacity: Delivers 22 kAIC at both 120V and 120/240V AC for robust fault-clearing performance.
  • Bolt-On Design: Engineered specifically for secure bolt-on connection to load center and lighting panel bus connections.
  • HACR Rated: Certified for use with heating, air conditioning, and refrigeration equipment.

Specifications

Technical Specification Detail
Catalog Number / Model THHQB2115
Brand / Manufacturer ABB / GE
UPC Code 783164118339
Product Line TEY / Q-Line (Bolt-On)
Product Type Thermal-Magnetic Miniature Circuit Breaker
Amperage Rating 15 A
Voltage Rating 120 VAC / 120/240 VAC
Number of Poles 2-Pole (2P)
Interrupting Rating 22 kAIC at 120 VAC / 22 kAIC at 120/240 VAC
Trip Style / Function Non-Interchangeable / LI (Long-Time Fixed, Instantaneous Fixed)
Special Markings HACR
Suitable for Reverse Feed Yes
UL File Number E11592
Primary Applications Residential/commercial panelboards, lighting panels, HVAC equipment, and 2-pole branch circuit protection
Weight 0.740 lbs
Dimensions 2.375 × 2.000 × 3.280 in
Part Number
