SU201M-C8 – ABB | UL489 MCB 1P C 8A 480/277

$30.68 CAD

The ABB SU201M-C8 (2CDS271337R0084) is an 8 A, single-pole miniature circuit breaker with a C tripping characteristic. Provides overload and short-circuit protection, a 10 kA UL interrupting rating, and a 15 kA IEC breaking capacity at specified voltages.

6 in stock

SKU: SU201M-C8 Categories: ,

Description

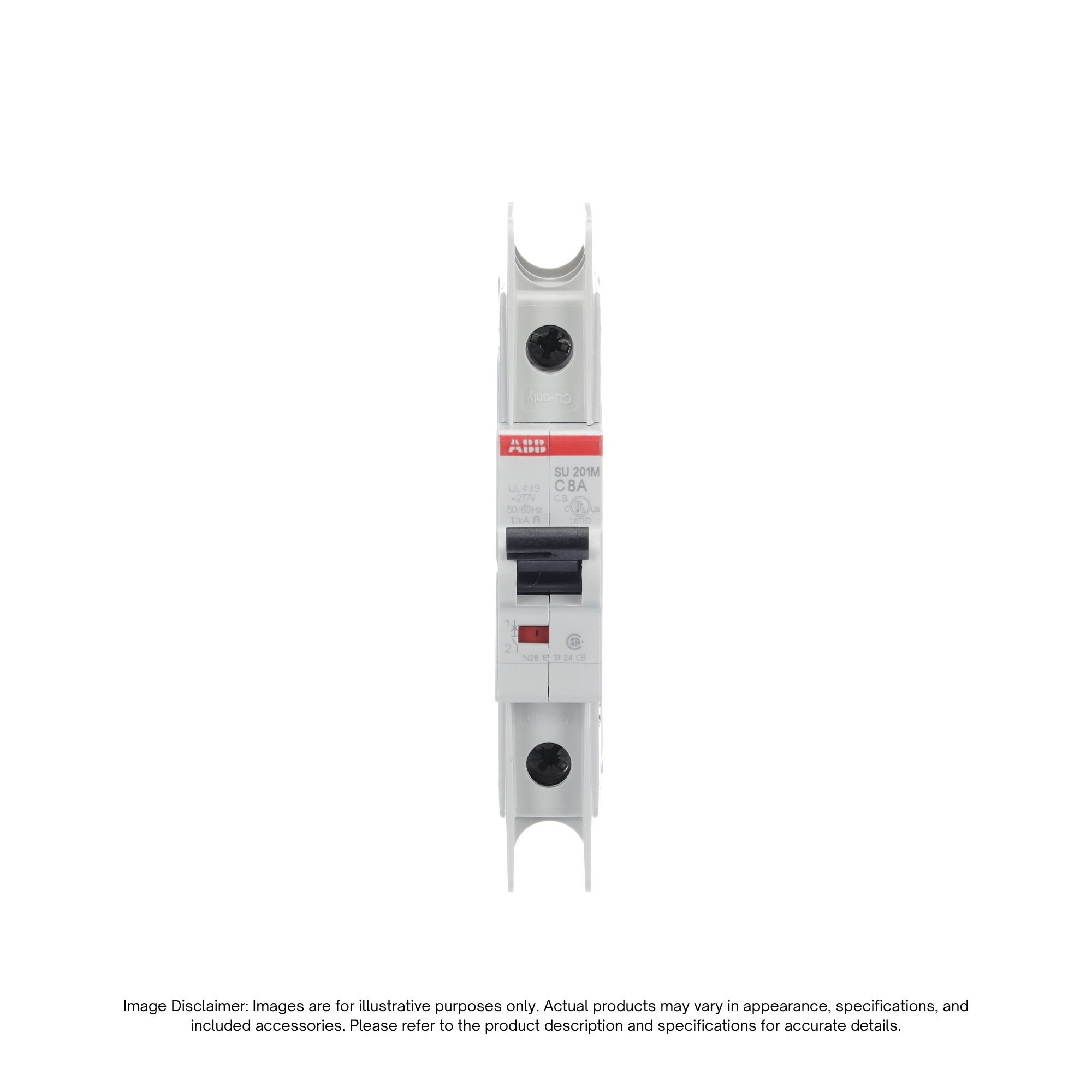

The ABB SU201M-C8 Miniature Circuit Breaker (2CDS271337R0084) is a single-pole circuit breaker designed to provide overload and short-circuit protection for electrical circuits. Rated at 8 A with a C tripping characteristic, it is suitable for compatible branch circuits and industrial control applications requiring reliable overcurrent protection.

Part of ABB’s SU200M series, the SU201M-C8 uses thermal-magnetic tripping to help protect electrical wiring and connected equipment against excessive current. Its C-curve characteristic accommodates moderate inrush currents within the manufacturer’s specified tripping limits, making it suitable for compatible electrical distribution and control applications.

Designed to meet UL 489, CSA C22.2 No. 5, and IEC/EN 60947-2 standards, the SU201M-C8 provides a 10 kA interrupting rating under applicable UL conditions and a 15 kA rated ultimate short-circuit breaking capacity at 230 V AC under IEC specifications. Its compact construction and screw-terminal connections support integration into compatible ABB electrical distribution systems.

Key Features

  • 8 A Current Rating: Provides overcurrent protection for compatible low-current electrical and control circuits.
  • Single-Pole Configuration: Protects one circuit pole in compatible electrical distribution applications.
  • C Trip Characteristic: Accommodates moderate inrush currents within the manufacturer’s specified tripping characteristics.
  • Thermal-Magnetic Protection: Provides protection against sustained overloads and short-circuit currents.
  • 10 kA UL 489 Interrupting Rating: Rated at 10 kA at 277 V AC and 48 V DC under applicable UL conditions.
  • 15 kA IEC Breaking Capacity: Provides a rated ultimate short-circuit breaking capacity of 15 kA at 230 V AC under IEC 60947-2.
  • Compatible ABB Distribution Systems: Designed for use in compatible ABB SU200M installations and distribution assemblies.
  • Screw-Terminal Connections: Supports secure conductor connections for compatible wire sizes.
  • Compact Design: Uses a 17.5 mm module width for space-efficient installation in compatible electrical assemblies.
  • Industry Standards: Meets applicable UL 489, CSA C22.2 No. 5, and IEC/EN 60947-2 requirements.

Specifications

Technical Specification Detail
Product Model SU201M-C8
Product ID (SKU) 2CDS271337R0084
Brand / Manufacturer ABB
Product Series SU200M
Product Type Miniature Circuit Breaker (MCB)
Rated Current 8 A
Number of Poles 1
Tripping Characteristic C Curve
Rated Operational Voltage (IEC) 230 V AC
Rated Voltage (UL) 277 V AC / 48 V DC
UL 489 Interrupting Rating 10 kA at 277 V AC and 48 V DC
IEC Ultimate Short-Circuit Breaking Capacity (Icu) 15 kA at 230 V AC
Catalog Short-Circuit Capacity 11.2 kA at 230 V AC, as stated in the catalog description
Rated Insulation Voltage 440 V
Rated Impulse Withstand Voltage 4 kV
Protection Functions Overload and Short-Circuit Protection
Power Loss per Pole 1.5 W
Mounting Compatibility Compatible ABB distribution system installation; verify the required mounting arrangement
Terminal Type Screw Terminals
Compatible Conductor Range Flexible conductors: 0.75–25 mm²; rigid or stranded conductors: 0.75–35 mm²
Terminal Tightening Torque 2.8 N·m
Degree of Protection IP20; IP40 when installed in a suitable enclosure with cover
Product Width 17.5 mm
Product Height 111 mm
Product Depth 69 mm
Product Weight 0.125 kg
Applicable Standards UL 489, CSA C22.2 No. 5, IEC/EN 60947-2
EAN 4016779930833
Weight 0.500 lbs
Dimensions 2.717 × 0.689 × 3.465 in
