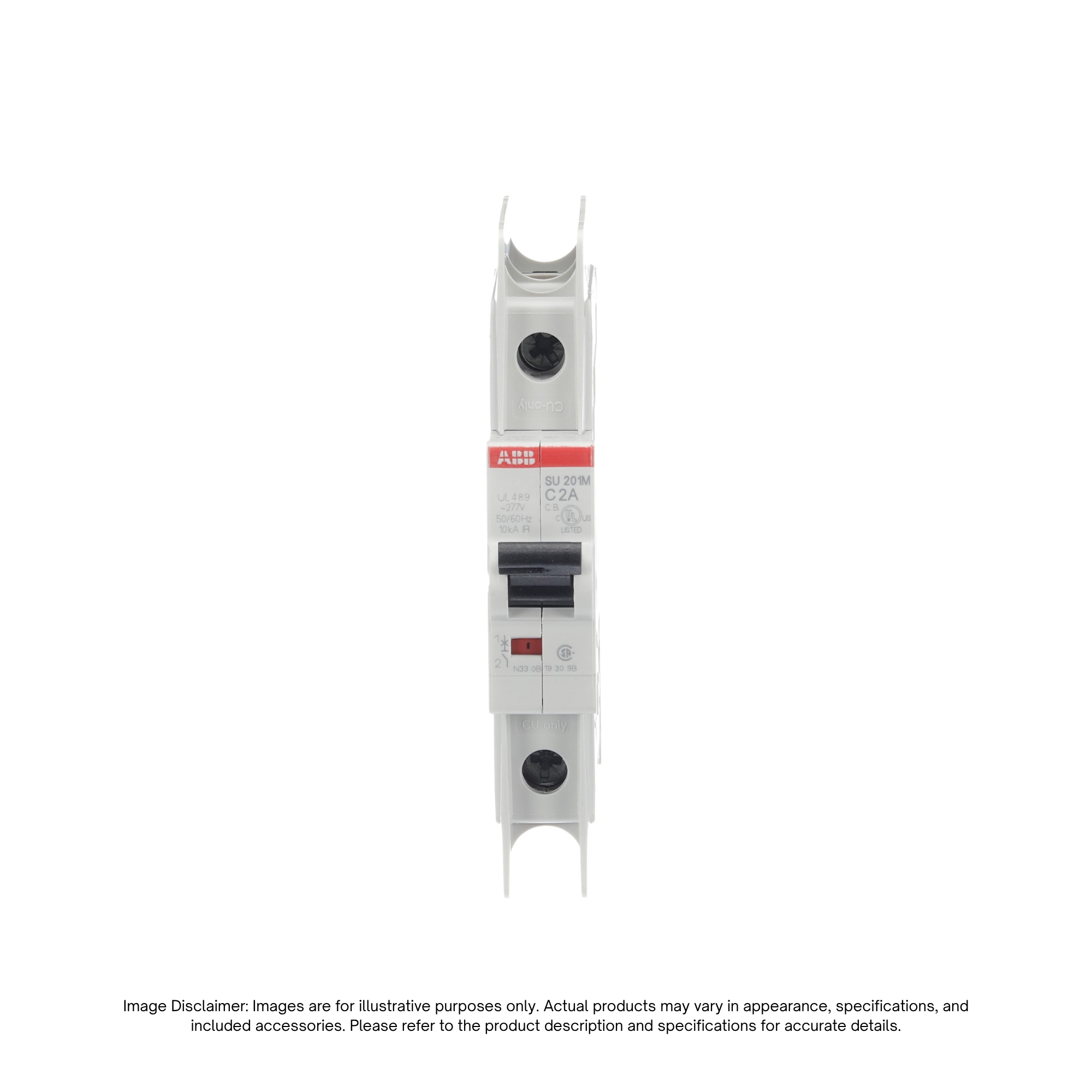

SU201M-C2 – ABB | UL489 MCB 1P C 2A 480/277

$30.68 CAD

The ABB SU201M-C2 (2CDS271337R0024) is a 2 A, single-pole miniature circuit breaker with a C tripping characteristic. Provides overload and short-circuit protection, a 10 kA UL interrupting rating, and a 15 kA IEC breaking capacity at specified voltages.

6 in stock

SKU: SU201M-C2 Categories: ,

Description

The ABB SU201M-C2 Miniature Circuit Breaker (2CDS271337R0024) is a single-pole circuit breaker designed to provide overload and short-circuit protection for electrical branch circuits. Rated at 2 A with a C tripping characteristic, it is suitable for control circuits and other electrical applications requiring low-current overcurrent protection.

Part of ABB’s SU200M series, the SU201M-C2 features thermal-magnetic tripping to help protect electrical wiring and connected equipment against excessive current. Its C-curve characteristic accommodates moderate inrush currents under the manufacturer’s specified trip characteristics, making it suitable for compatible industrial control and distribution applications.

Designed for DIN-rail mounting, this miniature circuit breaker features screw terminals and a compact 17.5 mm width for space-efficient installation. It provides a 10 kA interrupting rating under applicable UL 489 conditions and a 15 kA rated ultimate short-circuit breaking capacity at 230 V AC under IEC 60947-2 specifications.

Key Features

  • 2 A Current Rating: Provides overcurrent protection for compatible low-current electrical and control circuits.
  • Single-Pole Configuration: Protects one circuit pole in compatible electrical distribution applications.
  • C Trip Characteristic: Accommodates moderate inrush currents within the manufacturer’s specified tripping characteristics.
  • Thermal-Magnetic Protection: Provides protection against sustained overloads and short-circuit currents.
  • 10 kA UL 489 Interrupting Rating: Rated at 10 kA at 277 V AC under applicable UL conditions.
  • 15 kA IEC Breaking Capacity: Provides a rated ultimate short-circuit breaking capacity of 15 kA at 230 V AC under IEC 60947-2.
  • DIN-Rail Mounting: Fits compatible 35 mm mounting rails for convenient installation in electrical panels.
  • Screw-Terminal Connections: Supports secure conductor connections for compatible wire sizes.
  • Clear Position Indication: Provides visual indication of the ON and OFF positions.
  • Compact Design: Measures 17.5 mm wide to help conserve space in electrical distribution assemblies.

Specifications

Technical Specification Detail
Product Model SU201M-C2
Product ID (SKU) 2CDS271337R0024
Brand / Manufacturer ABB
Product Series SU200M
Product Type Miniature Circuit Breaker (MCB)
Rated Current 2 A
Number of Poles 1
Tripping Characteristic C Curve
Rated Voltage (UL) 277 V AC / 48 V DC
Rated Operational Voltage (IEC) 230 V AC under IEC 60947-2
UL 489 Interrupting Rating 10 kA at 277 V AC and 10 kA at 48 V DC
IEC Ultimate Short-Circuit Breaking Capacity 15 kA at 230 V AC under IEC 60947-2
Catalog Short-Circuit Rating 11.2 kA at 230 V AC, as stated in the catalog description
Rated Insulation Voltage 440 V
Rated Impulse Withstand Voltage 4 kV
Protection Functions Overload and Short-Circuit Protection
Mounting Type DIN-Rail Mounting
Compatible DIN Rail 35 mm TH35-7.5 or TH35-15, according to IEC 60715
Terminal Type Screw Terminals
Terminal Connection Capacity Flexible conductors: 0.75–25 mm²; rigid or stranded conductors: 0.75–35 mm²
Terminal Tightening Torque 2.8 N·m
Power Loss per Pole 1.8 W
Degree of Protection IP20; IP40 when installed in a suitable enclosure with cover
Mechanical Endurance 20,000 operating cycles
Operating Temperature -25°C to +55°C
Storage Temperature -40°C to +70°C
Product Width 17.5 mm
Product Height 111 mm
Product Depth 69 mm
Product Weight 0.125 kg
Applicable Standards UL 489, CSA C22.2 No. 5, IEC/EN 60947-2
EAN 4016779930772
Weight 0.500 lbs
Dimensions 2.717 × 0.689 × 3.465 in
