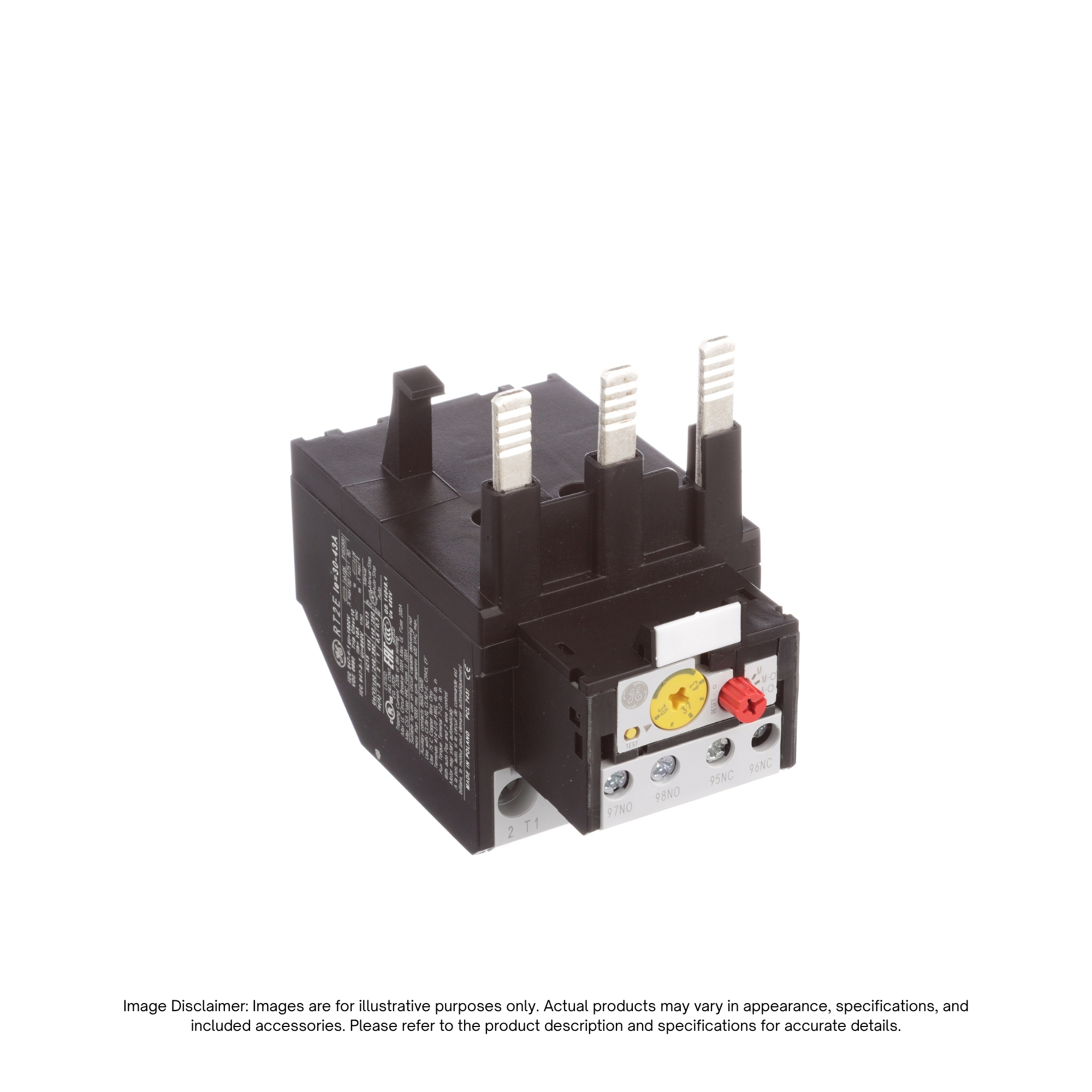

RT2E – ABB | THERMAL OVERLOAD RELAY

Description

The ABB RT2E Thermal Overload Relay (113721) is a three-pole motor protection device designed for compatible ABB CL Series IEC contactors and motor starters. Featuring an adjustable current range of 30 to 43 A and a Class 10 trip characteristic, it helps protect motors against sustained overload conditions by triggering the connected contactor to interrupt the motor circuit.

Designed for industrial motor control applications, the RT2E features thermal overload protection, three-phase differential protection for phase imbalance, and automatic ambient temperature compensation between -25°C and +60°C. A front-mounted test button and trip indication support convenient testing and troubleshooting, while selectable manual or automatic reset configurations provide flexibility for different control applications.

The RT2E is designed for direct mounting on compatible CL05, CL06, CL07, CL08, CL09, and CL10 contactors. Its integrated normally open (NO) and normally closed (NC) auxiliary contacts support control circuit integration, making it suitable for motor starters used in industrial machinery, manufacturing equipment, and electrical control panels.

Key Features

• Adjustable Current Range: Provides motor overload protection settings from 30 to 43 A.
• Class 10 Trip Characteristic: Provides a Class 10 overload response for compatible motor protection applications.
• Thermal Overload Protection: Helps protect motors against sustained excessive current.
• Phase Imbalance Protection: Uses a three-pole differential mechanism to respond to phase loss and current imbalance conditions.
• CL Series Compatibility: Designed for direct mounting on compatible CL05, CL06, CL07, CL08, CL09, and CL10 contactors.
• Auxiliary Contacts: Includes 1 normally open (NO) and 1 normally closed (NC) contact for control and signaling applications.
• Manual and Automatic Reset: Offers selectable reset configurations, with or without a stop function, depending on the model configuration.
• Ambient Temperature Compensation: Designed to compensate for ambient temperatures between -25°C and +60°C.
• Front-Mounted Test Button: Supports relay testing and operational checks.
• Trip Indication: Provides a visible indication when an overload trip occurs.
• High-Voltage Control Compatibility: Supports control circuit applications up to 690 V AC, subject to applicable contact ratings.
